7
QUICK START GUIDE

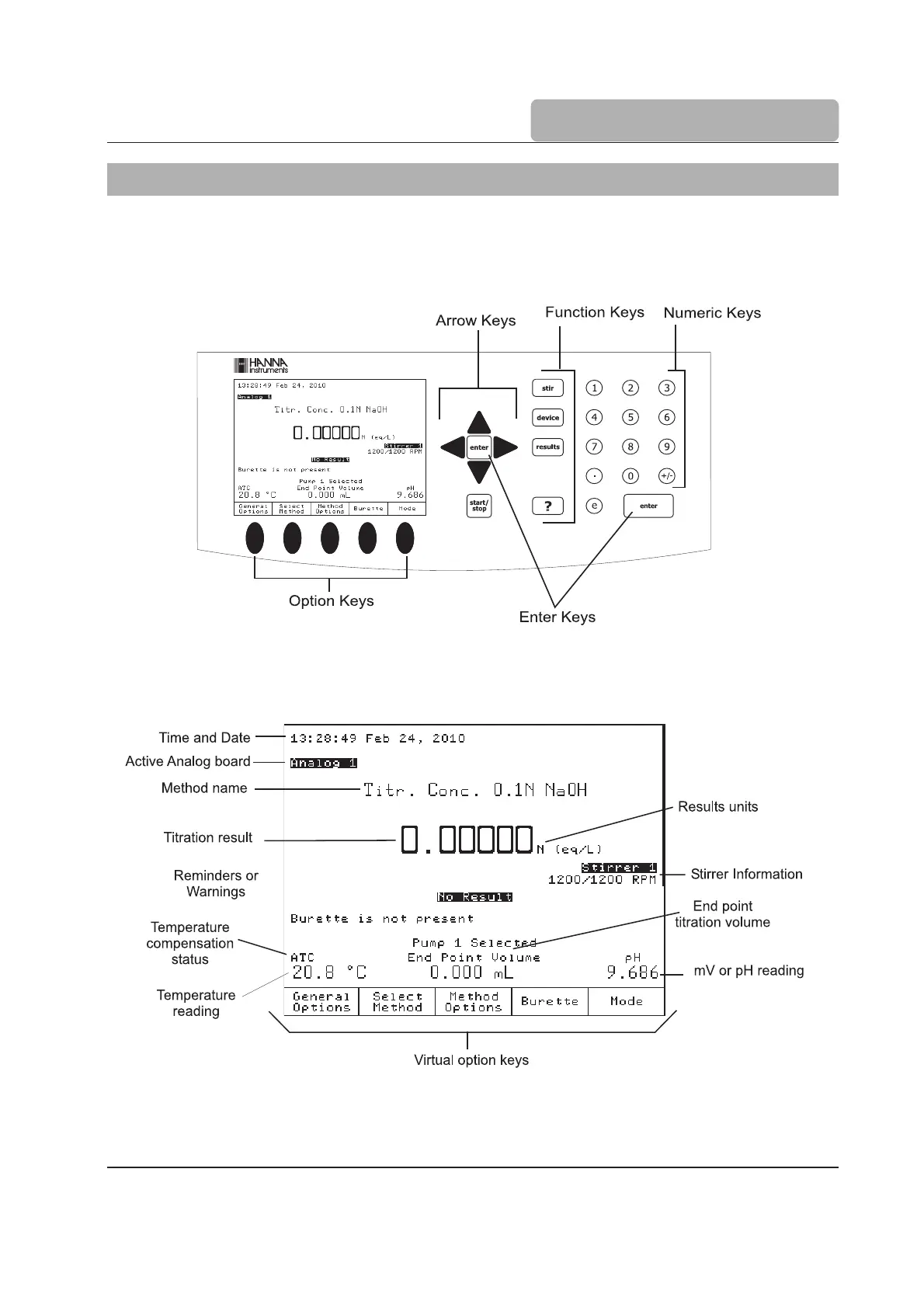

USER INTERFACE
Keypad
The titrator keypad has 29 keys grouped in five categories, as follows:
Display
The titrator has a 7.5’’ graphical backlit display. The main screen is shown below
with short
explanations.
The user interface contains several screens. In each screen, many information fields are present
at the same time. The information is displayed in an easy-to-read manner.
Virtual option keys describe the function performed when the corresponding option key is pressed.
