Herma 400 - Sub-assemblies Overview


O
VERVIEW OPERATING INSTRUCTIONS HERMA 400
12/154 3.28 US (130519)
Overview

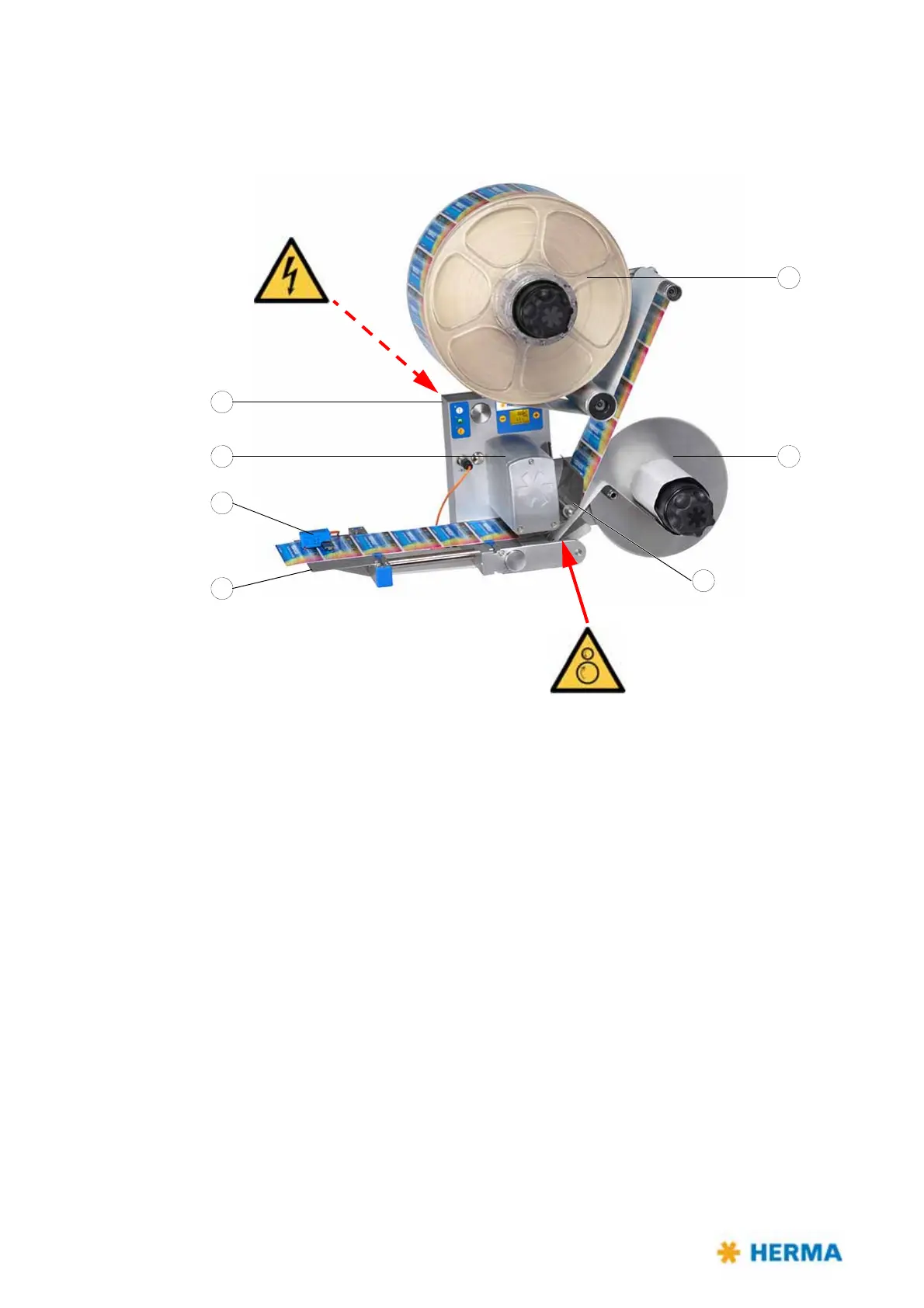

Sub-assemblies (see picture):
1. Unwinding the label web (with the help of the „unwinder“; shown here: standard unwinder;
alternatively used: motorized version)
2. Tightening the label web (with the help of the „web brake“)
3. Sensing the individual labels on the web (with the help of the „label sensor“; shown here: model
FS03; alternatively used: optoelectronic sensor, for example, and others)
4. Dispensing the labels off the web (with the help of the „dispensing beak“, or „dispensing plate“)
(shown here: rigid dispensing plate; alternatively used: pivot beak, for example, and others)
5. Rewinding the backing paper after dispensing the labels (with the help of the „rewinder“, or
„backing paper take-up unit“; shown here: standard rewinder; alternatively used: motorized
version)
6. Motor and integrated applicator control (called „drive unit“)
7. Housing
The applicator shown above is a configuration example and may differ from the version delivered to
you. You will find information on different sub-assemblies in section 4.1 as of page 23.
1
5
2
7
6
3
4
