Operating instructions HERMA 400 A
PPLICATOR DESCRIPTION
3.28 US (130519) 59/154

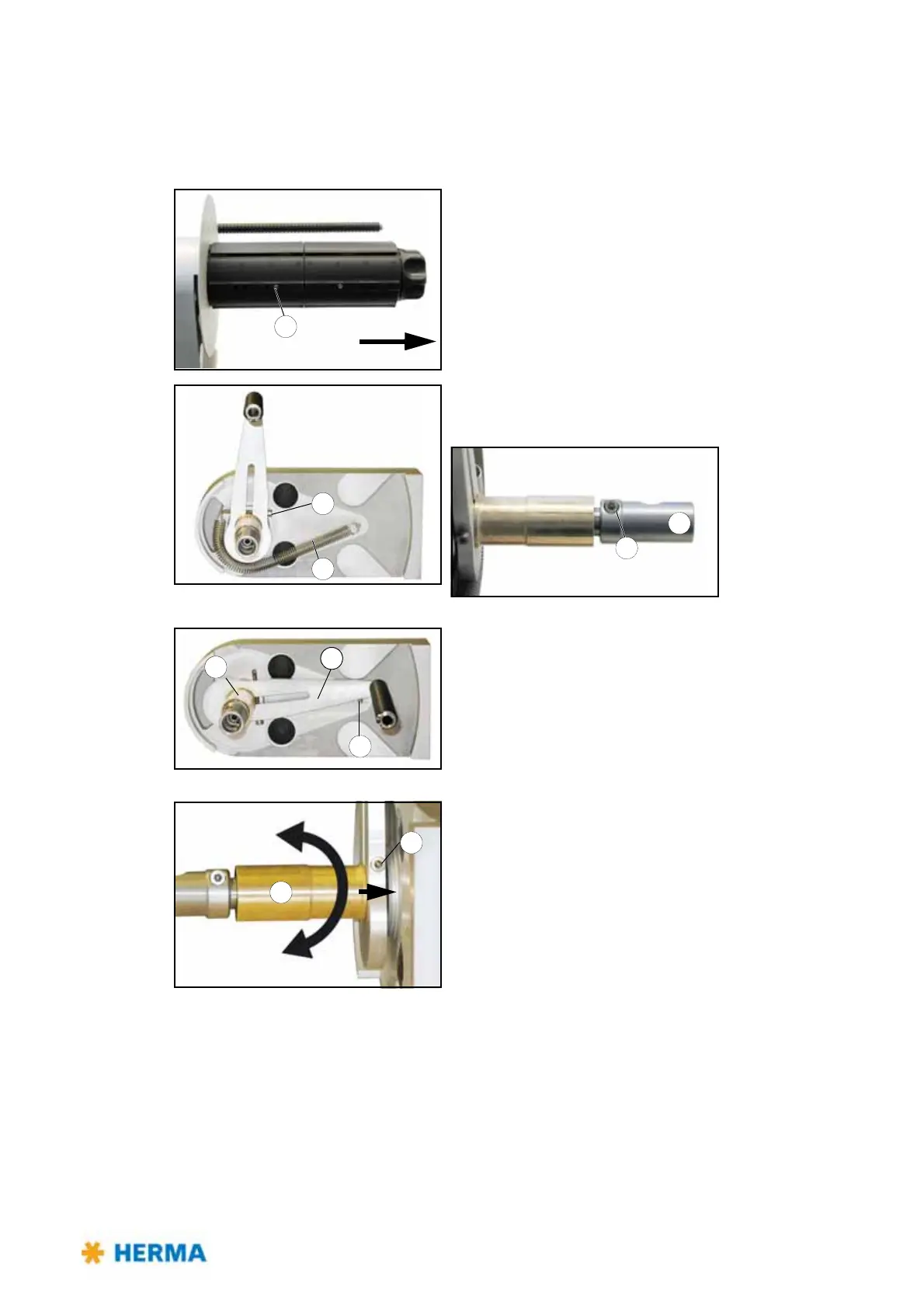

Basic adjustment of the lever
If after a very long time of use rewinding does not function reliably anymore proceed as follows when
effecting the basic adjustment:
> Remove take-up roll (roll including disk) after
loosening
screw 14.
> Unhook spring 23.
> Loosen screw 19 and
clamping screw 18 (do not remove!).
> Deflect lever 20 up to bolt 21 (where the spring is hooked
onto).
> Turn sleeve 22 until lever 20 axially sits close to the
housing.
> Put on screw 19.
> Verify that lever 20 can
be moved freely in the entire swivel
range. If required correct the axial position of the lever
(position a little more in the opposite direction, i.e. with a
slightly greater distance to the housing).
> Hook on spring 23.
