6
Operating instructions
HERMA 400 TRANSPORT, INSTALLATION, STORAGE AND CONNECTION
3.28 US (130519) 81/154

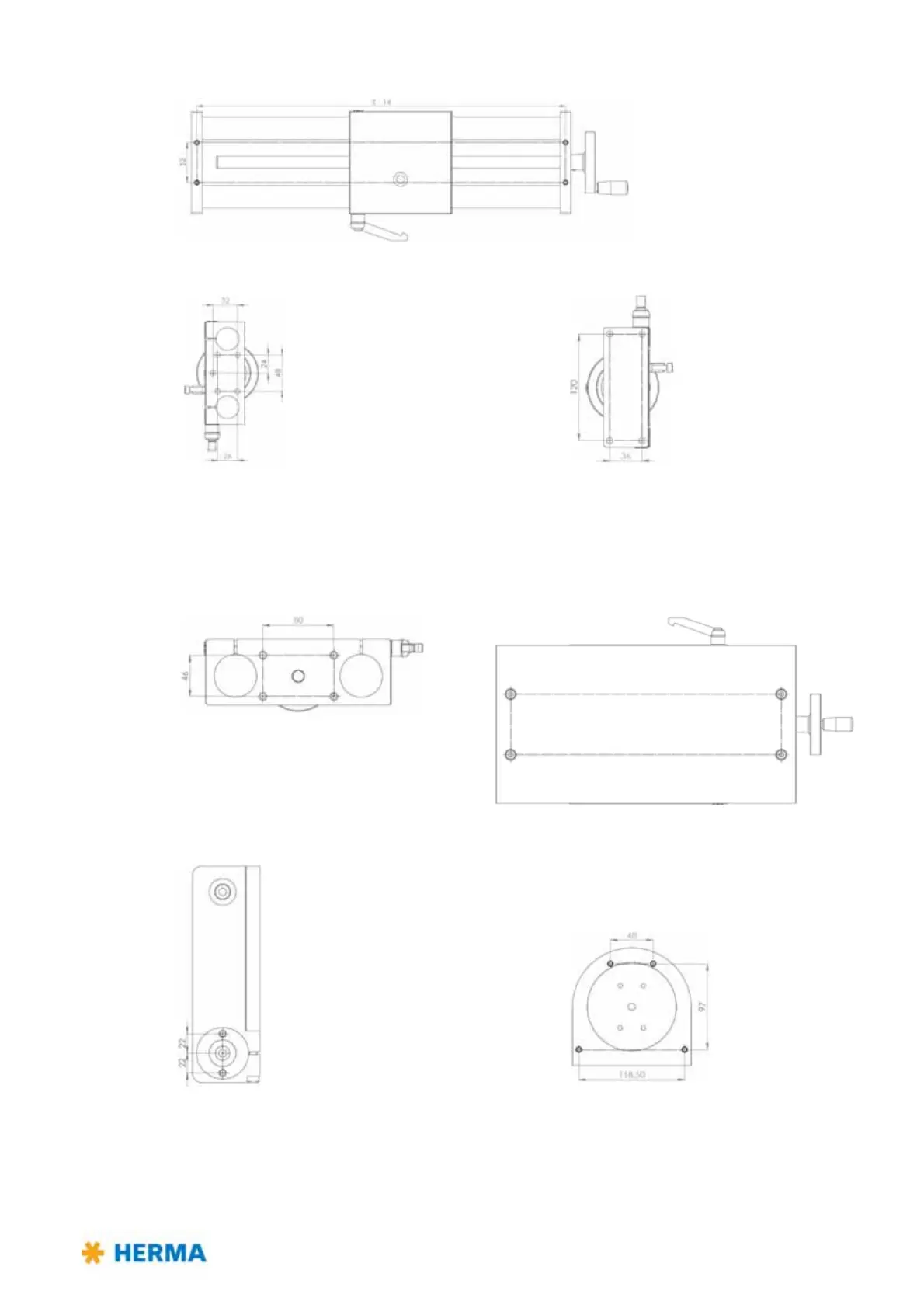

Pedestal 30 horizontal. Fix with 4 x M6. 4 x M6 provided by customer.
Pedestal 30 with short leg.
Fix with 5 x M6.
5 x M6 provided by customer
Pedestal 30 with long leg.
Fix with 4 x M8.
4 x through holes for M8 provided by
customer
Pedestal 48. Fix with 4 x M8. 4 x M8 provided by customer
Adjusting bar.
Fix with 2 x M6 and 1x M10.
2 x M6 and through holes for M10 provided
by customer
Adjusting disc.
Fix with 4 x M6.
4 x M6 provided by customer
Mounting plate pedestal 48
