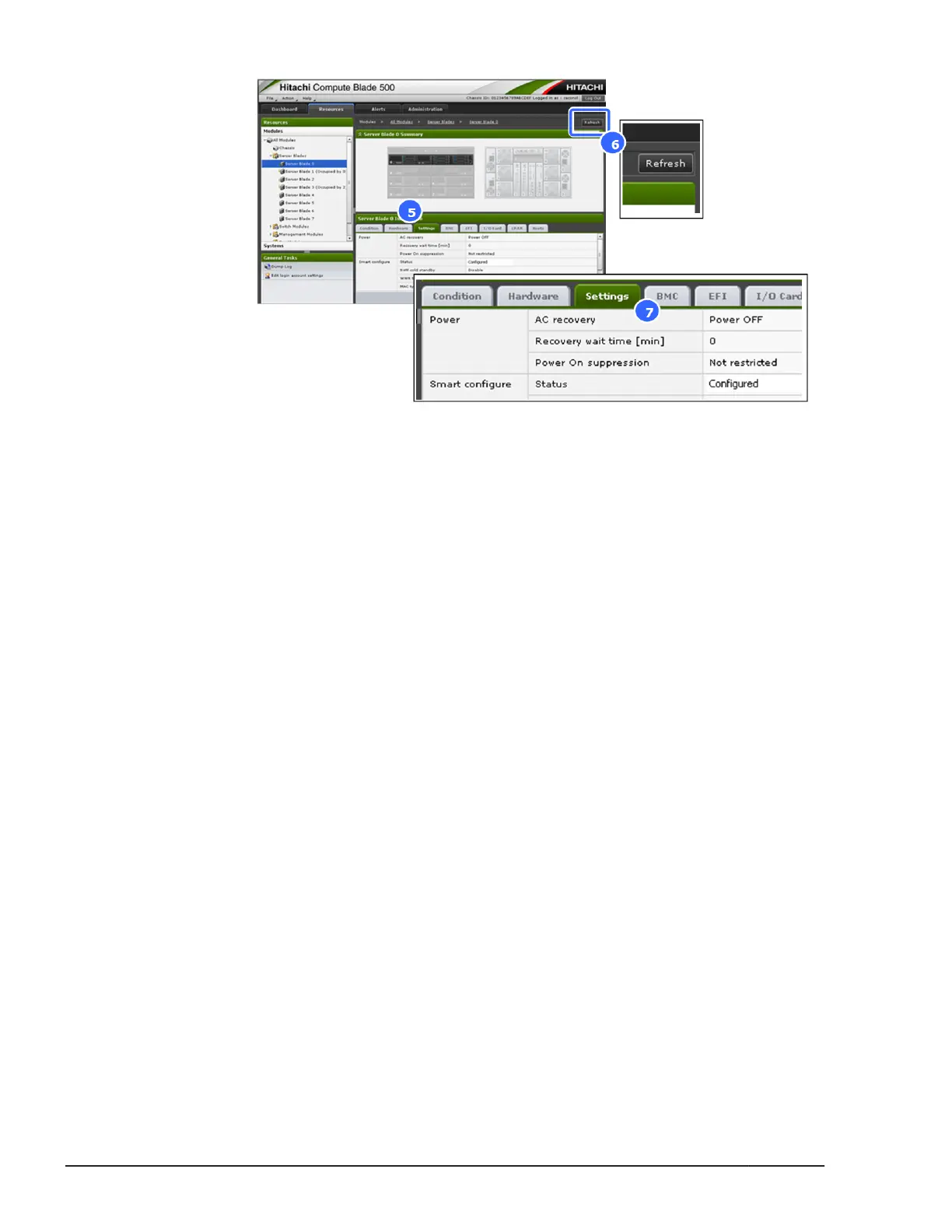

Figure 4-47 Confirming the smart configure status
Smart configure for SMP CB 520X B1/B2/B3
1. Select Resources tab and select Modules > All Modules > Server
blades > Server Blade n of the SMP configuration > primary blade.
2. Select Condition tab.
3. Click Server Blade Action and then select Run Smart configure.
4. The confirmation dialog box appears. Click OK. Smart configure process
will be started.
4-54
Common process for replacement
Hitachi Compute Blade 500 Series System Service Manual
