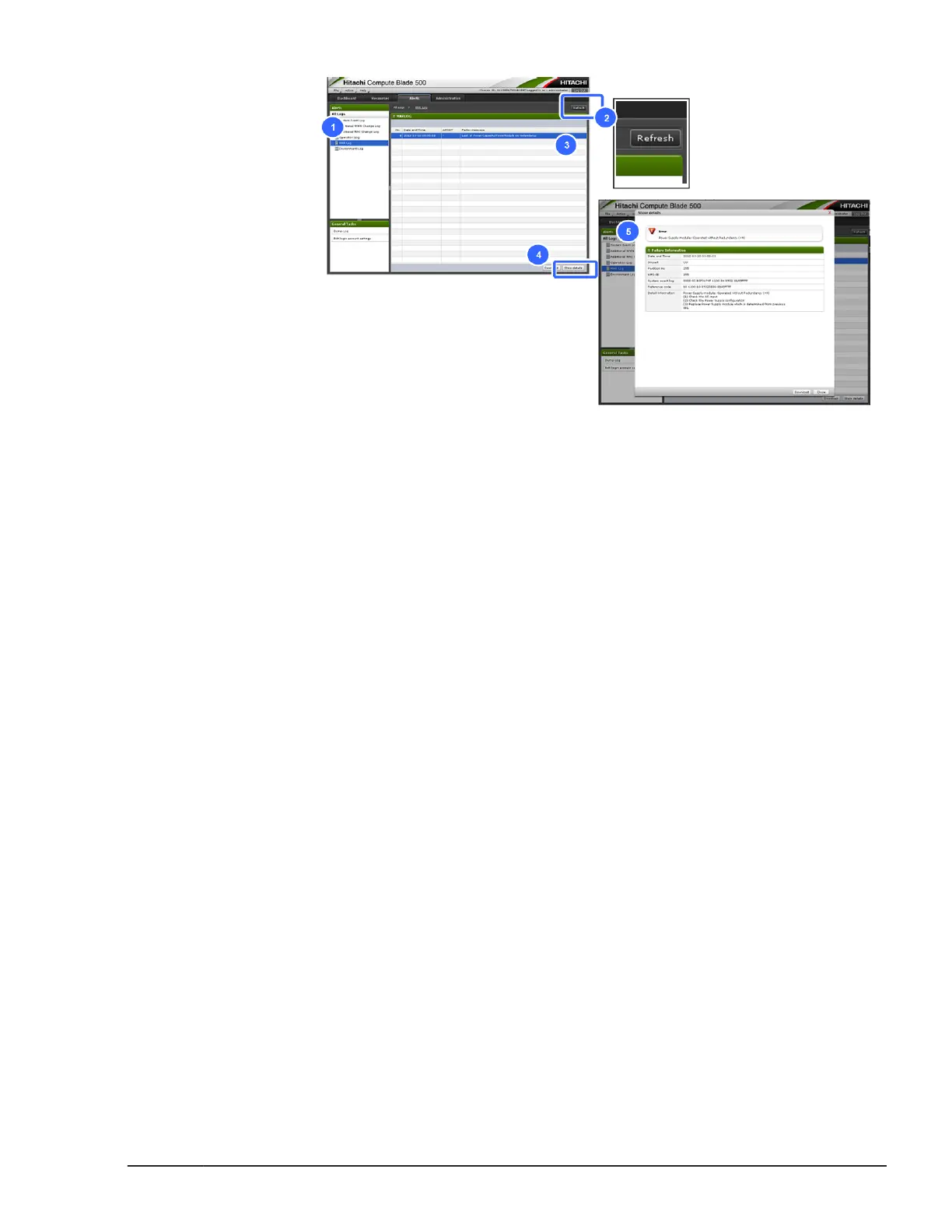

Figure 4-4 Failure information from MAR log
To download the MAR log
1. Click Download in the show details dialog box.
Identify LED (LID) on/off procedure
Server blade, management module, and switch module have an indicator
called Identify LED (LID LED) and the color is blue. Before performing the
replacement procedure, lighting LID LED is useful to visualize the target
module, which you should replace, and to reduce the risk of incorrect
removal.
This procedure describes how to set up the system to Local ID LED on or off
for replacement.
Server blade
LID ON
1. [For CB 520A A1, CB 520H A1/B1/B2/B3/B4, CB 540A A1/B1, and Non-
SMP CB 520X B1/B2/B3]
Select Resources tab and select Modules > All Modules > Server
Modules > a target blade that you should replace.
[For SMP CB 520X B1/B2/B3]
Select Resources tab and select Modules > All Modules > Server
Modules > Server Blade n of the SMP configuration > a target
blade that you should replace.
2. Select Condition tab, and then click LID ON.
3. The confirmation dialog box appears. Click OK.
Common process for replacement
