Installing a Fusion-io flash drive from card adapter F/H
1. Put on an anti-static wrist strap.

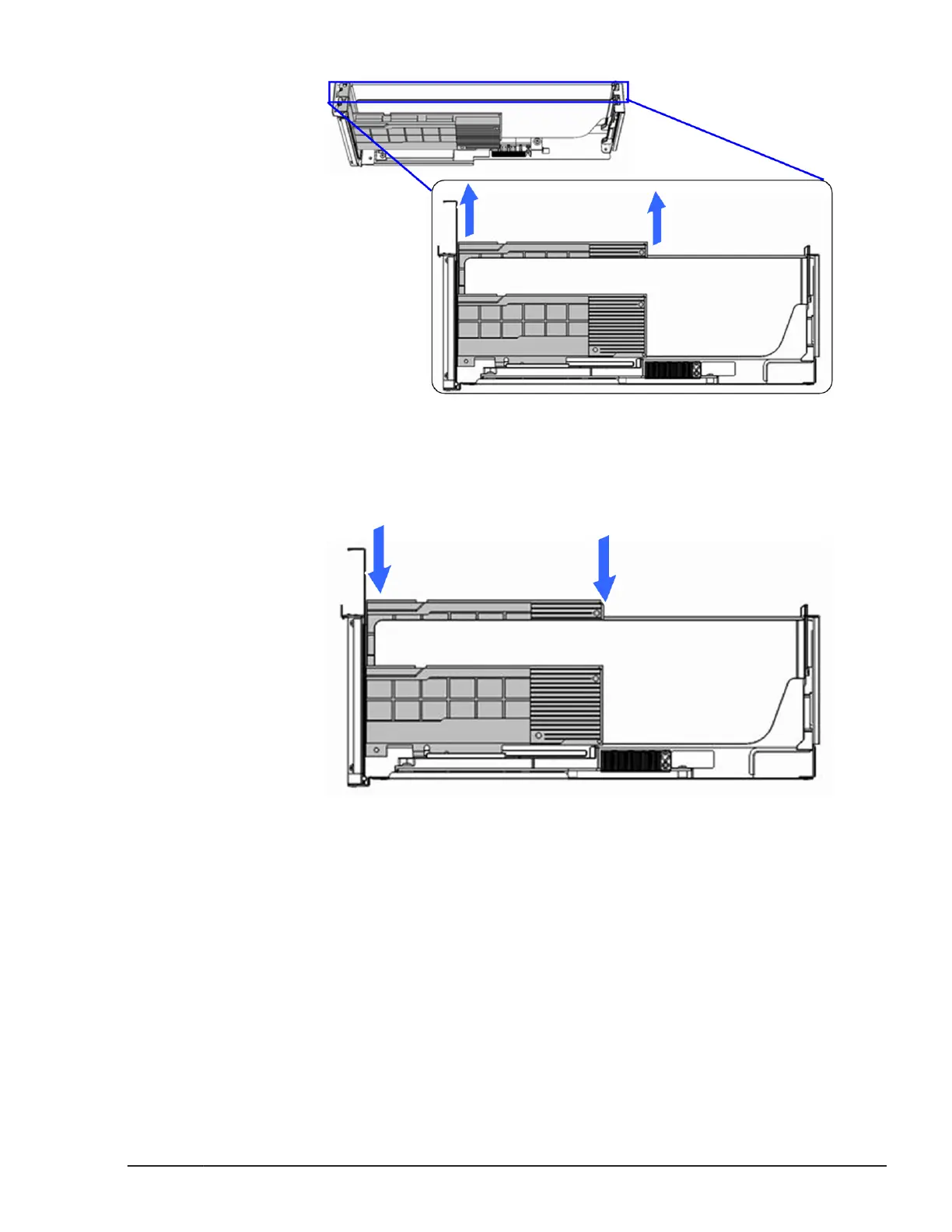

2. Push in the Fusion-io flash drive into the card adapter F/H.
3. While holding the two portions marked with white circle, align the
connector guide hole of the adapter F/H with the guide pin on the main
board, and then press the portion marked PRESS HERE.
Replacing parts
5-85
Hitachi Compute Blade 500 Series System Service Manual
