Installing a SAS-kit 1
1. Put on an anti-static wrist strap.
2. Reverse the removal procedure.
3. Perform Installing a full-wide server blade on page 5-7 procedure.
Replacing a SAS-kit 2 in half-wide server blade
This procedure describes how to remove a SAS-kit 2 from the server blade.
A SAS-kit 2 is composed of:
1. SAS cable
2. HDD backplane board
Removing a SAS-kit 2
1. Put on an anti-static wrist strap.
2. Remove the target server blade.
See
Removing a half-wide server blade on page 5-4 section.
3. Open the top cover of the server blade. See Opening a top cover, Server
blade on page 5-38 section.
4. Open the lock tabs, as shown below.
5. Lift up the RAID mezzanine card and remove it from the server blade
assembly.
CAUTION: To reduce the risk of the personal injury, do not disconnect
the SAS cable from RAID mezzanine card before removing it from server
blade assembly.

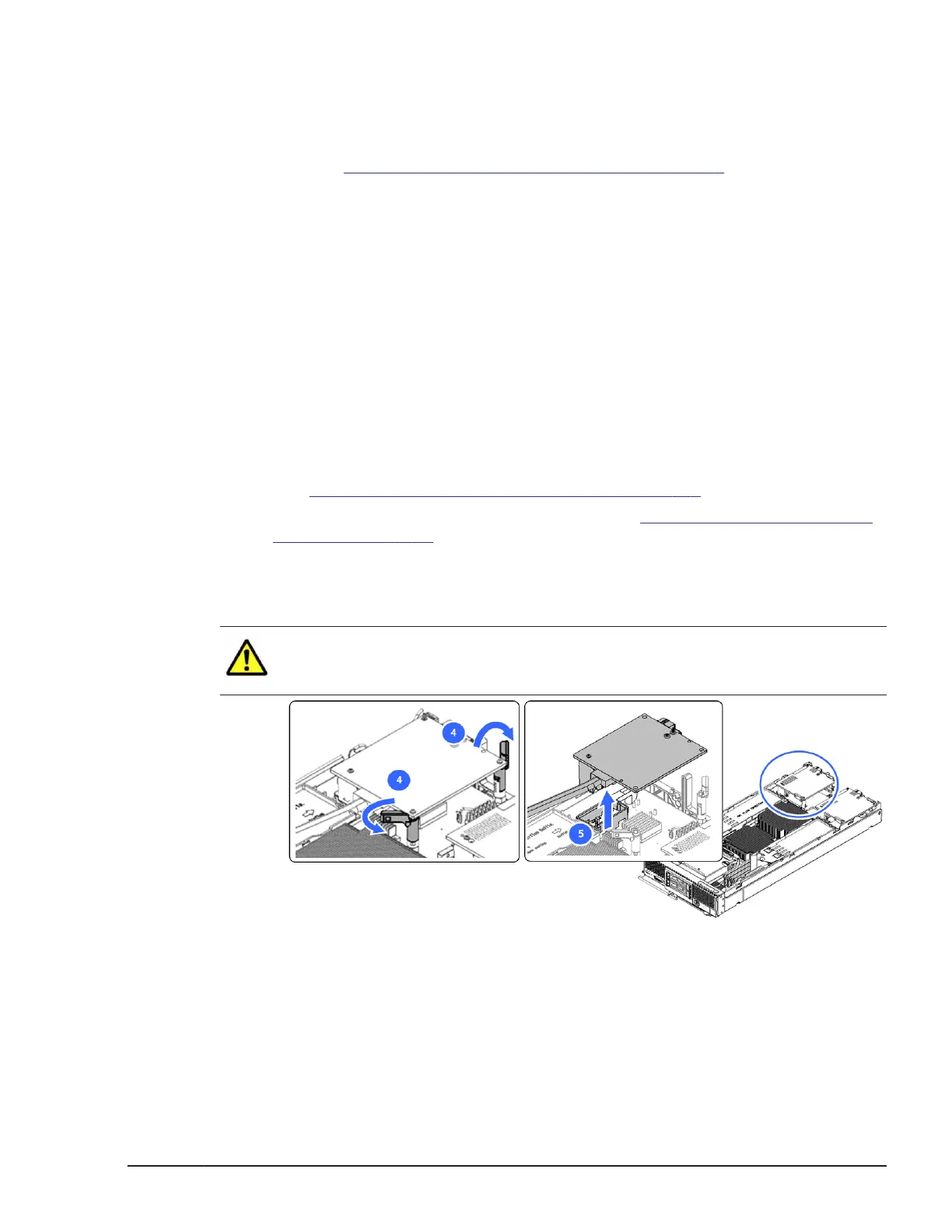

Figure 5-116 Removing the RAID card
6. Slide the disk drives approximately 4 cm to disconnect with the HDD
backplane board.
7. Lift the HDD backplane board assembly and remove it from the server
blade assembly.
Replacing parts
5-93
Hitachi Compute Blade 500 Series System Service Manual
