Replacing a SAS-kit 1 in full-wide server blade
This procedure describes how to remove a SAS-kit 1 from the server blade.
A SAS-kit 1 is composed of:
1. HDD backplane board
Removing a SAS-kit 1
1. Put on an anti-static wrist strap.
2. Remove the target server blade.
See Removing a full-wide server blade on page 5-6 section.
3. Open the top cover of the server blade. See Opening a top cover, Server
blade on page 5-38 section.
4. Slide out the disk drives approximately 4 cm to disconnect with the HDD
backplane board.
5. While opening up both of the edges of the latch, push out the connector
cable.
6. Turn the cable counterclockwise about 90 degrees, and then remove the
anchorage of HDD backplane.
7. Pull out the HDD backplane board assembly.

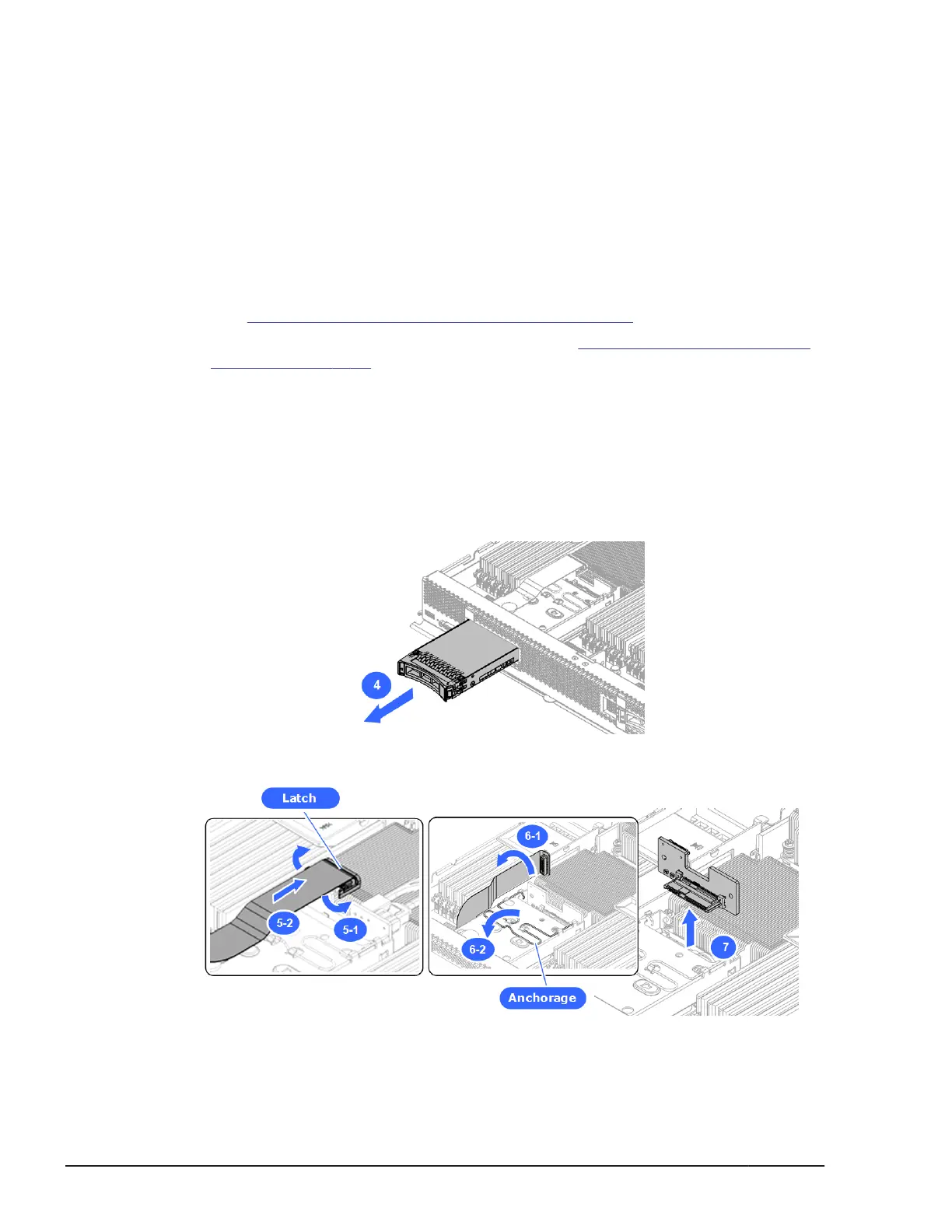

Figure 5-114 Removing the HDD
Figure 5-115 Removing the HDD backplane board
5-92
Replacing parts
Hitachi Compute Blade 500 Series System Service Manual
