Removing a power supply module
1. Put on an anti-static wrist strap.
2. Connect the web console. See Web console login procedure on page 4-3
section.
3. Set on the maintenance mode from web console.
See
Maintenance mode on/off procedure on page 4-10 section.
4. Open the cable retainer to release the power cord, as shown below.
5. Remove the power cord from the failed power supply.

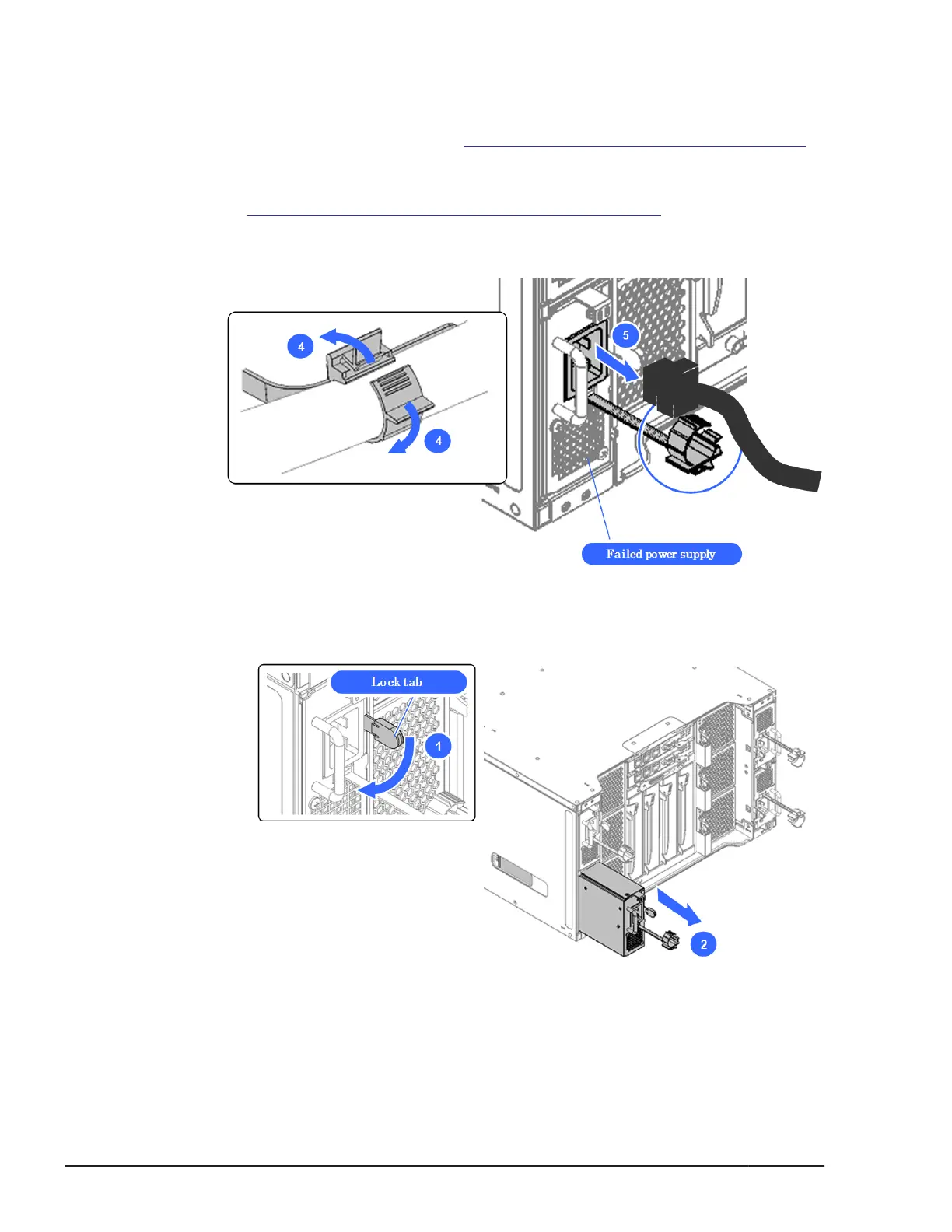

Figure 5-153 Removing the power cord
6. Pull the lock tab while unlocking it and then remove the failed power
supply.
Figure 5-154 Removing the power supply module
Installing a power supply module
1. Put on an anti-static wrist strap.
5-122
Replacing parts
Hitachi Compute Blade 500 Series System Service Manual
