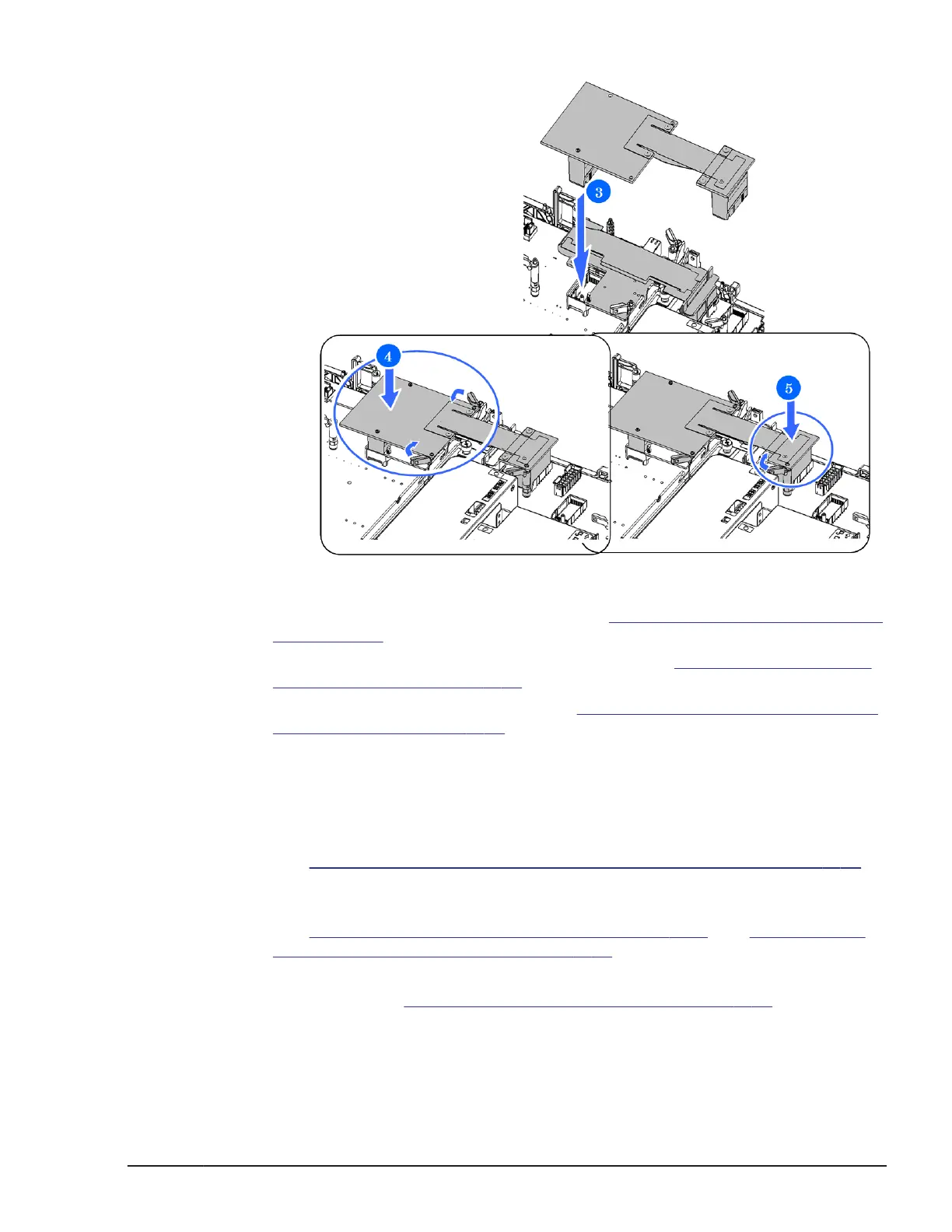

Figure 5-96 Installing connection kit F/H
6. Close the top cover of server blade. See Closing a top cover, Server blade
on page 5-39 section.
7. Close the top cover of PCI expansion blade. See Closing a top cover, PCI
expansion blade on page 5-41 section.
8. Install the PCI expansion blade. See
Installing a PCI expansion blade into
server chassis on page 5-16 section.
Removing a connection kit L/P
1. Put on an anti-static wrist strap.
2. Removing a server blade with a PCI expansion blade.
See Removing a PCI expansion blade from server chassis on page 5-15
section.
3. Opening a top cover of server blade and storage expansion blade.
See
Opening a top cover, Server blade on page 5-38 and Opening a top
cover, PCI expansion blade on page 5-40 section.
4. Remove the connection kit F/H.
For details, see Removing a connection kit F/H on page 5-75.
5. Pull out the connector of the connection kit L/P in the PCI expansion blade
straight upward, and then turn over the connector toward server blade.
