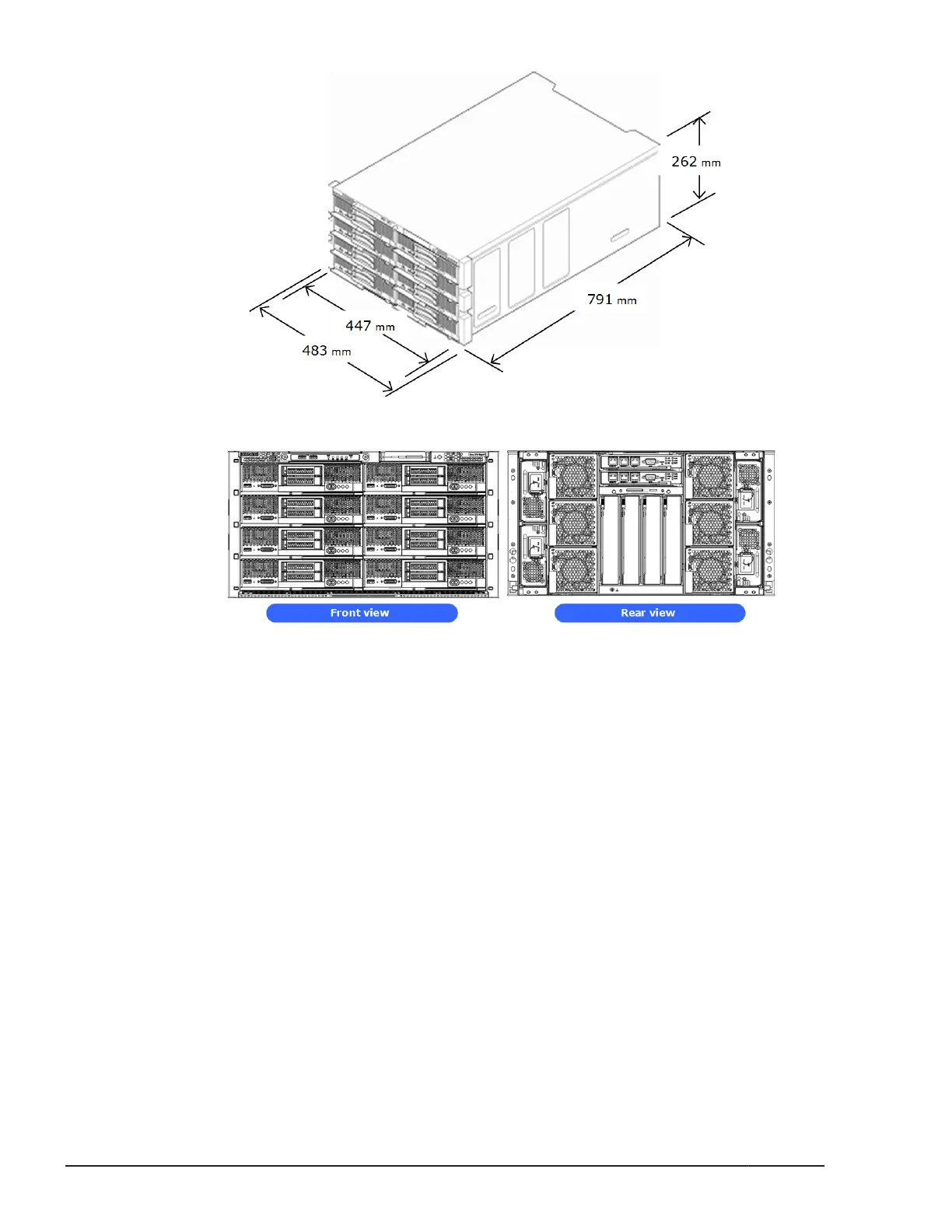

Figure 1-3 Server chassis overview
Figure 1-4 Front/rear view of server chassis
Server blade
The CB 500 server blade offers the following key features:
• High-performance Intel multi-core processor with QPI technology for
high-throughput and low-latency.
• High operability through the high- reliability, availability, and
serviceability features of processor, memory, and HDD, such as memory
scrubbing (self-error-correcting), memory mirroring function (memory
duplication), and integrated Hardware RAID 1.
• High density, high performance optimized for enterprise data center,
virtualization, high-speed computing, and flexible IO capability.
A server blade contains processors, memory, HDDs, and other components,
and is available in either one of four form factors: the "Half-wide server
blade", "Full-wide server blade", "Storage expansion blade" for HDD, and "PCI
expansion blade" for PCIe card, expanded with a "Half-wide blade".
1-4
Introduction
Hitachi Compute Blade 500 Series System Service Manual
