6. Close the top cover of server blade. See Closing a top cover, Server blade
on page 5-39 section.
7. Close the top cover of PCI expansion blade. See Closing a top cover, PCI
expansion blade on page 5-41 section.
8. Install the PCI expansion blade. See
Installing a PCI expansion blade into
server chassis on page 5-16 section.
Removing a Fusion-io flash drive from card adapter F/H
1. Put on an anti-static wrist strap.
2. Remove the target PCI expansion blade.
See Removing a PCI expansion blade from server chassis on page 5-15
section.
3. Open the top cover of the PCI expansion blade.
See
Opening a top cover, PCI expansion blade on page 5-40 section.

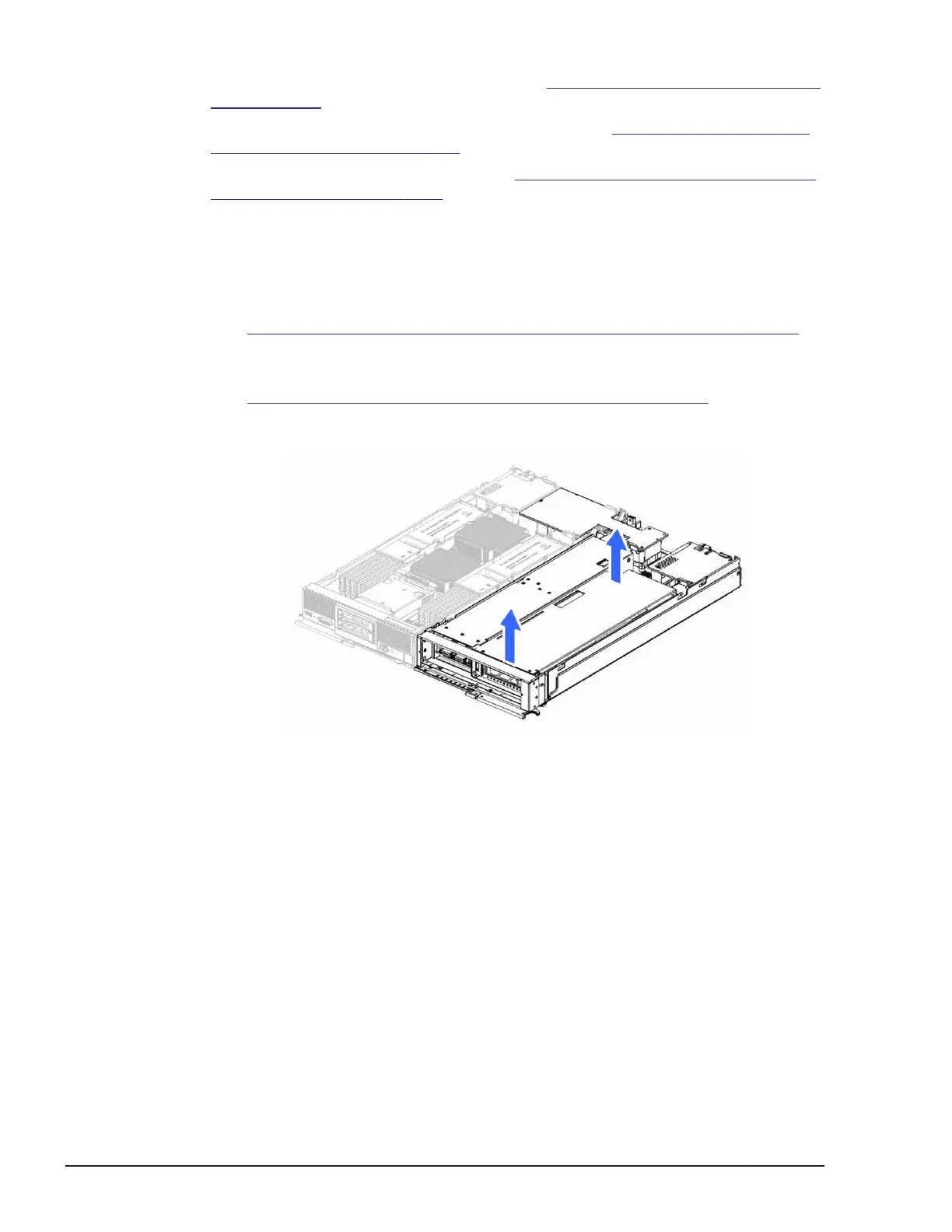

4. While holding the two portions marked with white circle, pull up the PCI
blade card adapter F/H straight upward.
5. Pull out the Fusion-io flash drive from the card adapter F/H.
5-84
Replacing parts
Hitachi Compute Blade 500 Series System Service Manual
