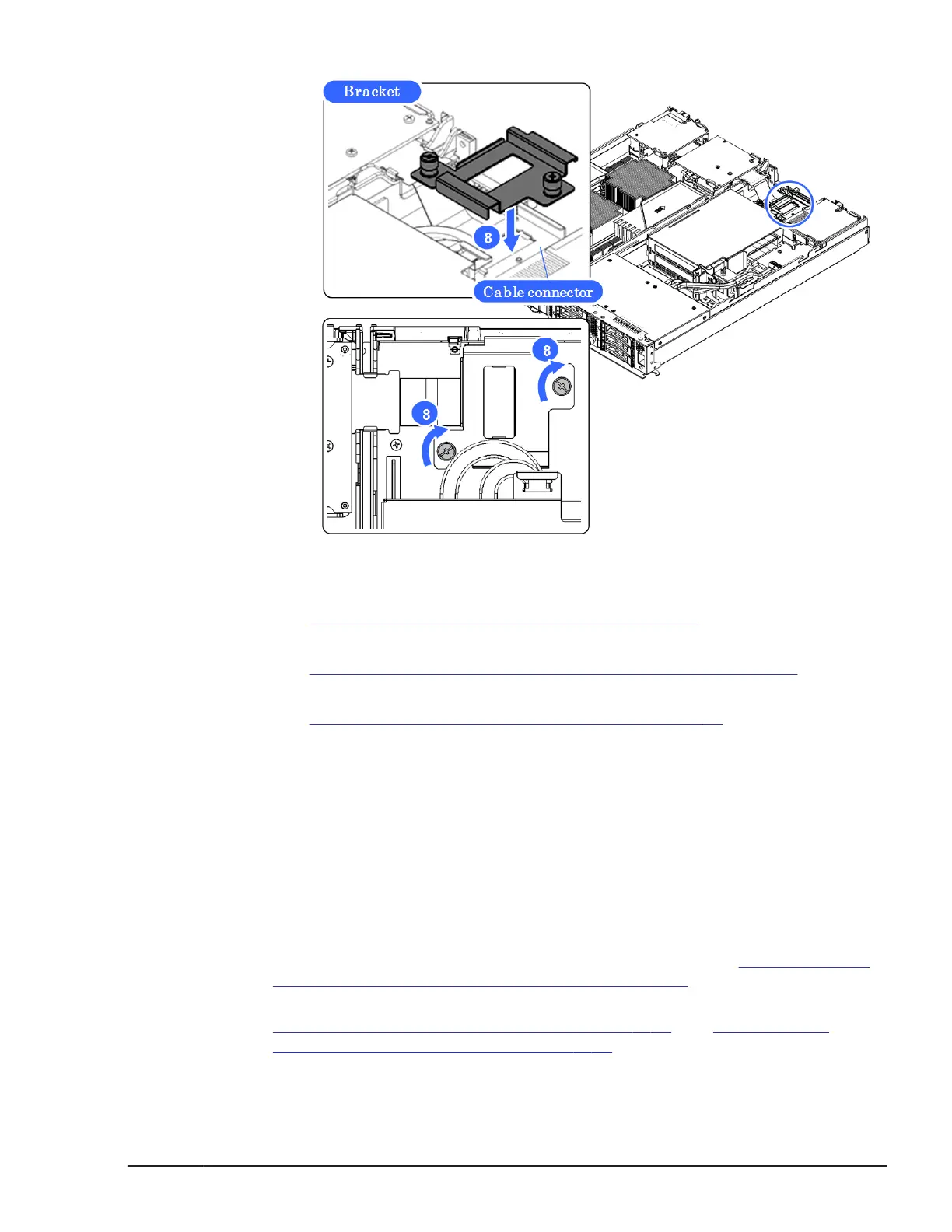

Figure 5-20 Fixing the cable connector
9. Close the top cover of server blade.
See
Closing a top cover, Server blade on page 5-39 section.
10. Close the top cover of storage expansion blade.
See Closing a top cover, Storage expansion blade on page 5-40 section.
11. Install the storage expansion blade.
See
Installing a storage expansion blade on page 5-12 section.
Replacing a half-wide server blade for PCI expansion blade
The hot-swappable feature of the Hitachi Compute Blade 500 series system
allows server blade for PCI expansion blade replacement with the server
chassis power-on. This procedure describes how to replace a server blade for
PCI expansion blade when the server chassis power is on.
Removing a server blade with PCI expansion blade
1. Removing a server blade with PCI expansion blade. See
Removing a PCI
expansion blade from server chassis on page 5-15 section.
2. Opening a top cover of server blade and PCI expansion blade. See
Opening a top cover, Server blade on page 5-38 and Opening a top
cover, PCI expansion blade on page 5-40 section.
Replacing parts
5-21
Hitachi Compute Blade 500 Series System Service Manual
