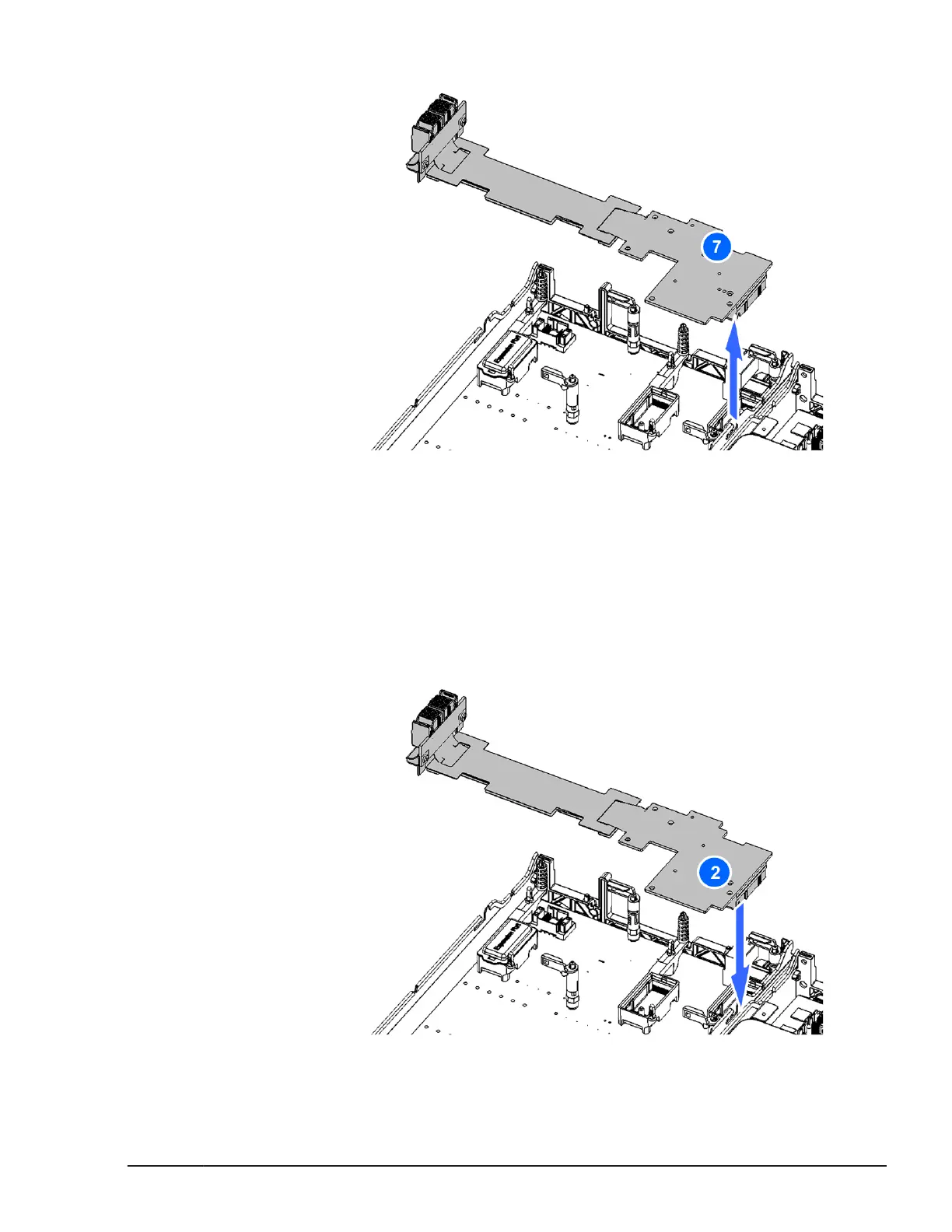

Figure 5-99 Removing the connection kit L/P
Installing a connection kit L/P
1. 1.Put on an anti-static wrist strap.
2. Align the connector of the connection board of the connection kit L/P with
the male connector on the main board of the server blade, and then push
in the connection board straight downward by pushing the portion
indicated Push and opposite side at the same time.
Figure 5-100 Inserting the connection kit L/P
Replacing parts
5-79
Hitachi Compute Blade 500 Series System Service Manual
