Hitachi CB 520H B3 - Disk Drive Numbering: CB 540 A A1;B1; Disk Drive Numbering: CB 520 X B1;B2;B3

Table 1-7 Location of installable components
Symbol Component
0 HDD #0
1 HDD #1
Disk drive numbering: CB 540A A1/B1
The disk drive numbering in a server blade is #0 to #1/2 from the left to
right, as viewed from the front of the server blade. The same numbering
applies to all server blades in the server chassis.

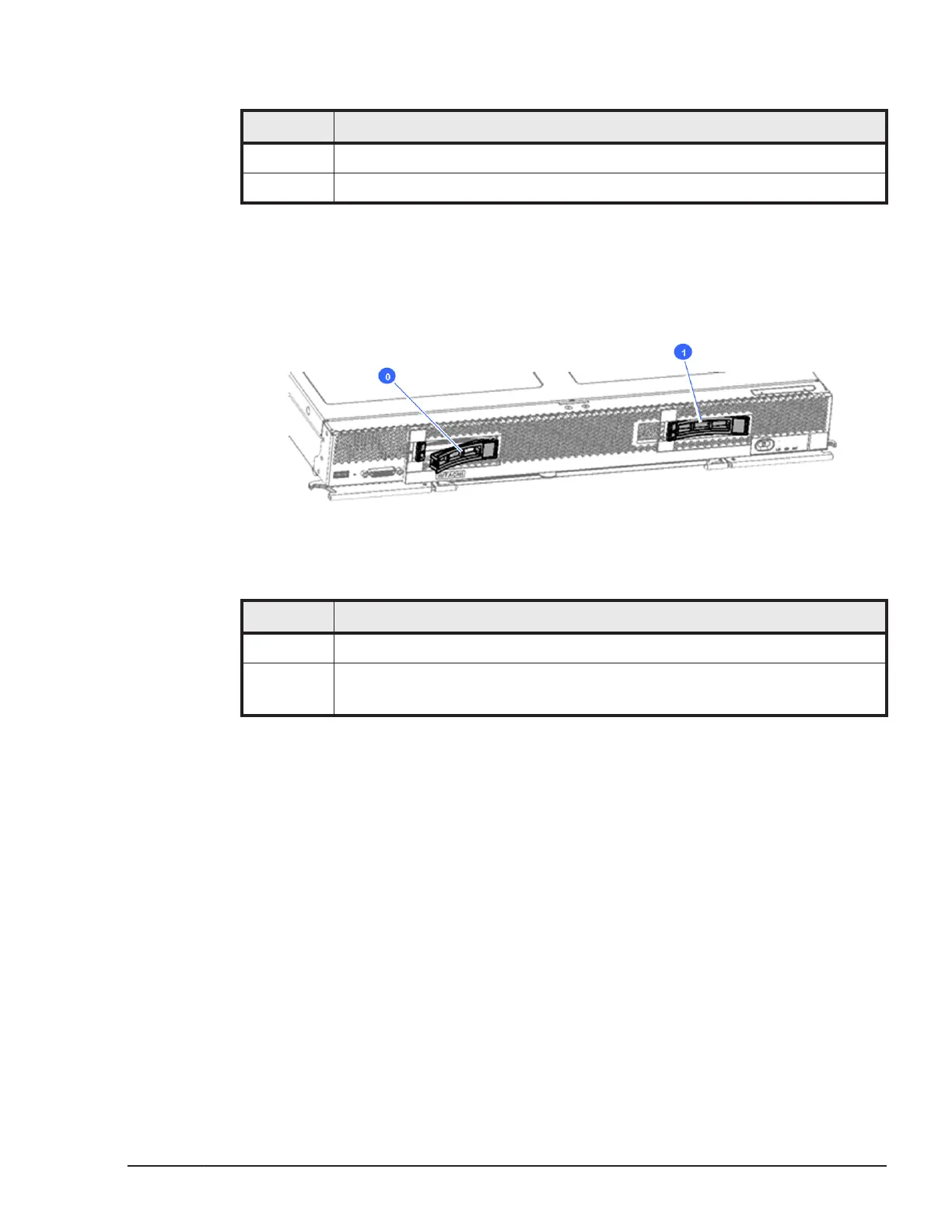

Figure 1-12 Disk drive location
Table 1-8 Location of installable components
Symbol Component
0 HDD #0
1 HDD #1 (Using the RAID Mezzanine or Combo Mezzanine) /
HDD #2 (Using the Onboard RAID)
Disk drive numbering: CB 520X B1/B2/B3
The disk drive numbering in a server blade is #0 to #2 from the left to right,
as viewed from the front of the server blade. The same numbering applies to
all server blades in the server chassis.
