3. Put in the connection bracket, and then tighten a thumbscrew of the
connection bracket.

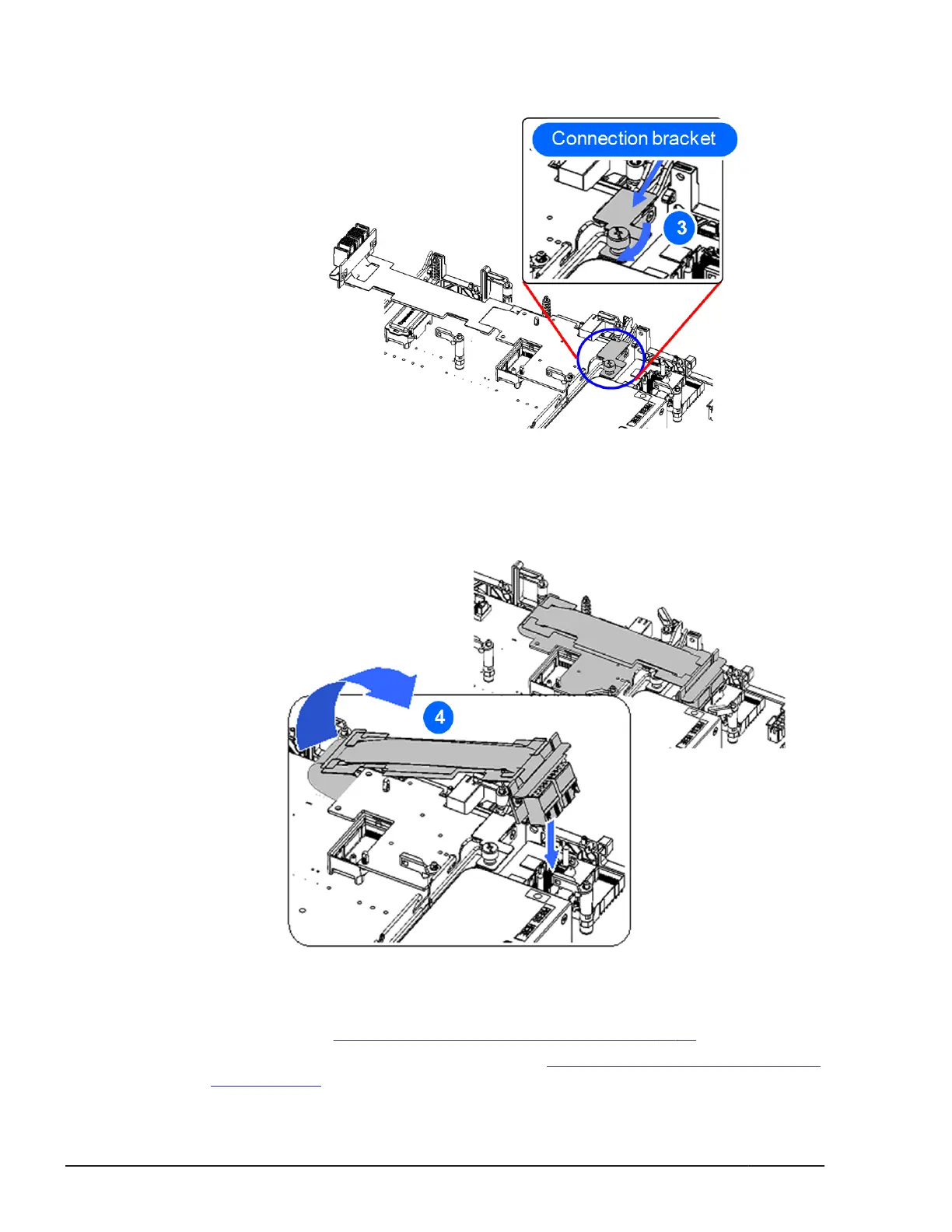

Figure 5-101 Installing the connection bracket
4. Turn over the connector of the connection kit L/P toward PCI expansion
blade, align the connector with the male connector on the main board of
the PCI expansion blade, and then push in the connector.
Figure 5-102 Installing the connection kit L/P
5. Install the connection kit F/H.
For detail, see Installing a connection kit F/H on page 5-76.
6. Close the top cover of server blade. See
Closing a top cover, Server blade
on page 5-39 section.
