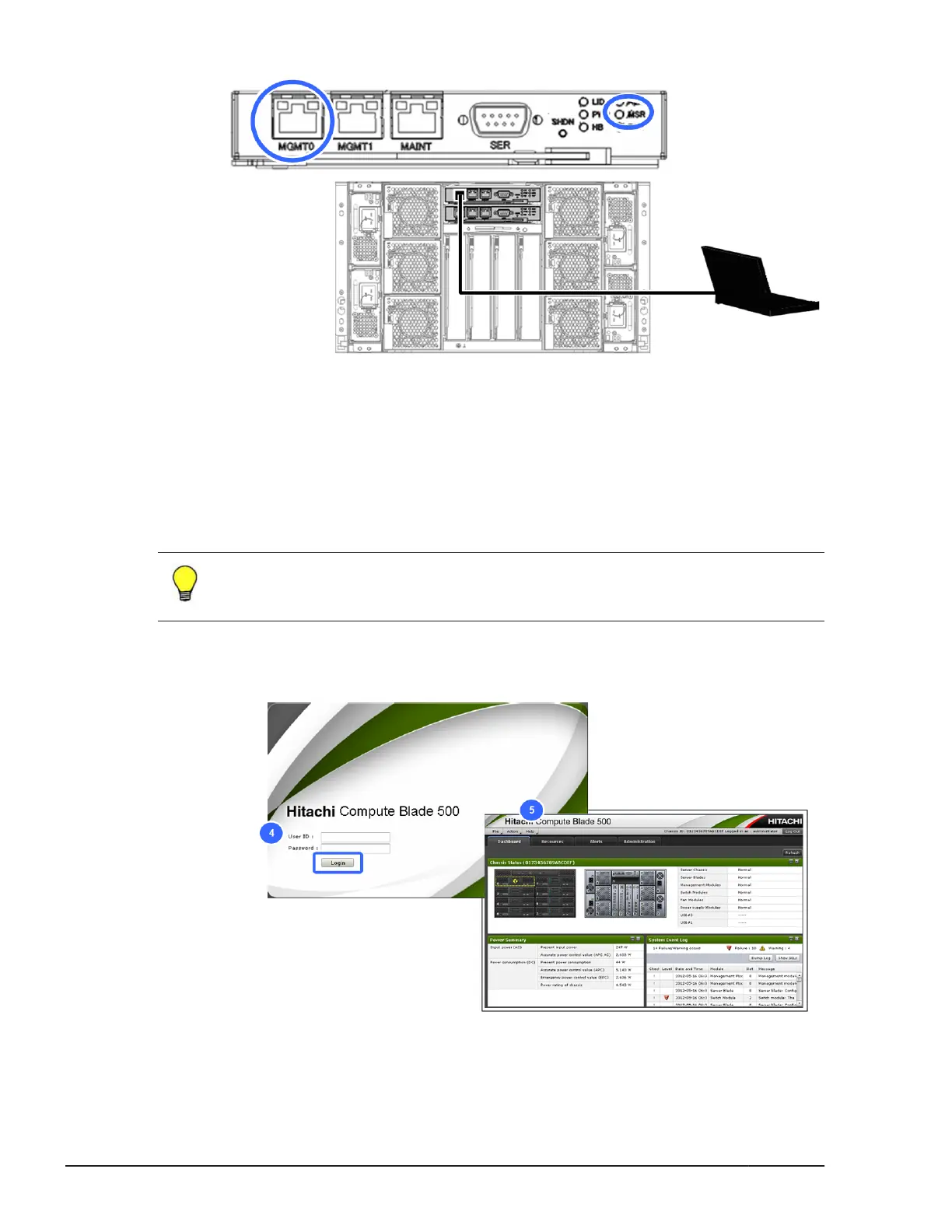

Figure 4-1 Preparation for Login
2. Start a web browser on a console PC.
3. Enter the following URL in the address field:
https://192.168.0.1 (management module0)
https://192.168.0.2 (management module1)
The URLs above are the default IP addresses of the management modules
connecting the console PC.
Tip: The IP address may be different from 192.168.0.1 or 192.168.0.2 in
the production environment. You should communicate with the server and
network IP administrator to identify the actual IP address in advance.
4. The web console portal is displayed on the screen.
Enter <User ID> and <Password>, and then click Login.
5. When the login process is successful, the dashboard is displayed.
Figure 4-2 Web console Login screen
4-4
Common process for replacement
Hitachi Compute Blade 500 Series System Service Manual
