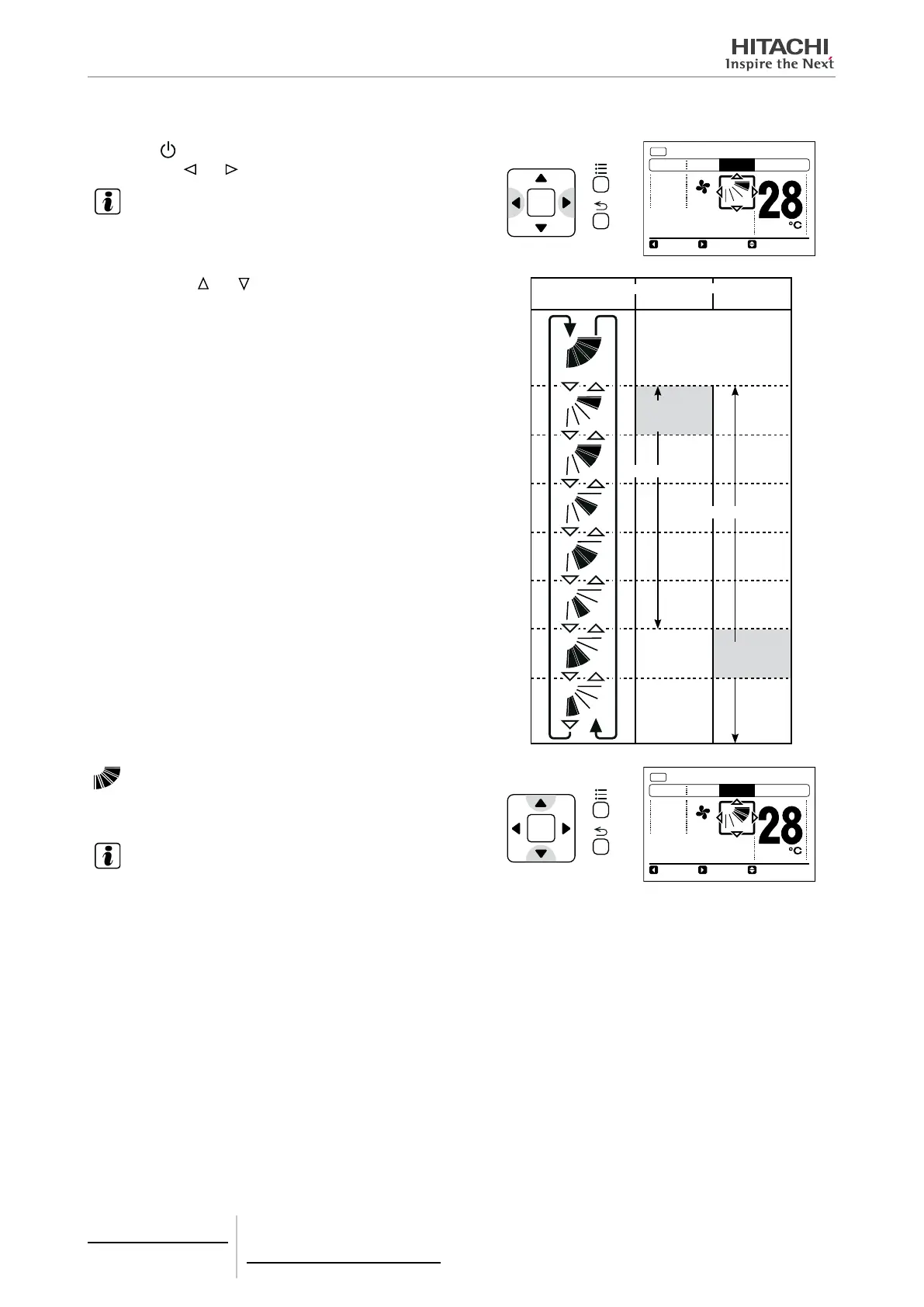

Setting the louver direction
1 Press “
” (run/stop). Make sure that the operation is start-
ed. Press “
” or “ ” and select “LOUV”.
NOTE
For the indoor unit without the auto louver mechanism, the indication of
“LOUV.” will NOT be displayed on LCD.
A/C
LOUV.
SPEED ADJTEMP
MODE SPEED TEMP
COOL
MED
Meeting Room
OK
2 By pressing “ ” or “ ”, the louver direction will be changed
as follows.
LCD Indication
COOL, DRY
HEAT, FAN
Auto-swing
Recommended
angle
Recommended
angle
Angle range
Angle range
: Auto swing operation will be started. At this time, the lou-
ver will swing repeatedly on LCD.
NOTE
The air ow angle is different for each indoor unit type. Check
Installation & Operation Manual for Indoor Unit to be used for the
detailed information.
Louver position on LCD and the actual louver position may not
match during the auto swing operation. To x the louver positions,
set the angle after checking the position on LCD.
The louver may NOT stop immediately right after the switch is
pressed.
A/C
LOUV.
SPEED ADJTEMP
MODE SPEED TEMP
COOL
MED
Meeting Room
OK
4 Individual remote controls
PC-ARF
TCGB0106 rev.0 - 12/2014
90
