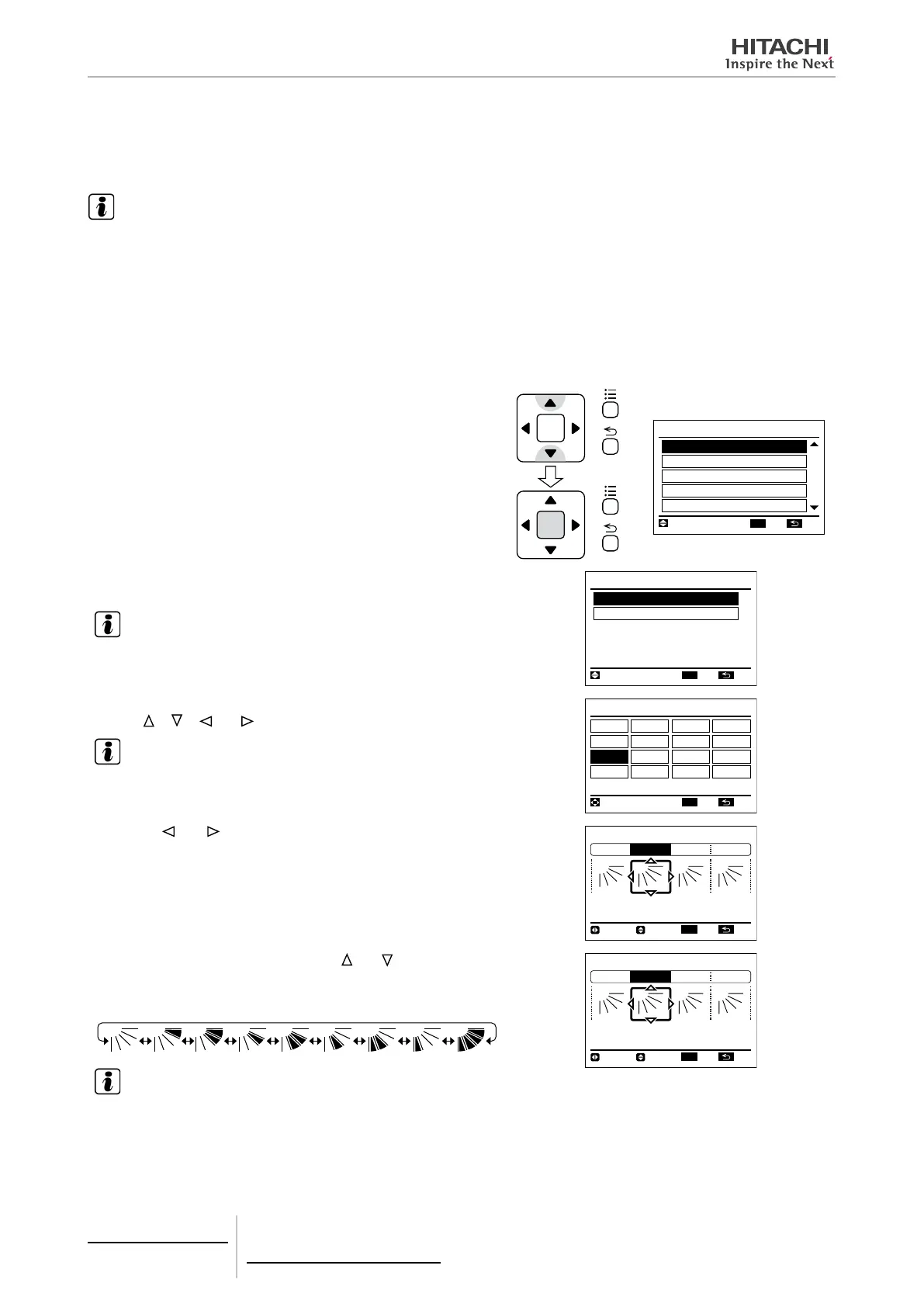

Individual Louver Setting
Setting
This setting is available only for the indoor unit adopting the individual louver. Each louver angle can be set individually.
NOTE
• This function is available only when the indoor unit corresponds to the individual louver.
• This function cannot be set when the unit is stopped.
• The fan speed changes to “LOW” while this function is being set. (After the setting is completed, the unit operation returns to normal).
• As for “Start-up of Heating Operation”, “During Defrost Operation” and “Activation of Thermo-Controller”, all the louver angles are xed
at horizontal position automatically even when this function is activated.
• This function is not available if 2 remote control switches (including multifunctional remote control switch + wireless remote control
switch) are used.
• With one multifunctional remote control switch, a maximum number of 4 indoor units can be set for this function.
1 Select “Louver Setting” from the menu and press “OK”.
The individual louver setting menu is displayed then.
Menu
Motion Sensor Setting
Total Heat Exchanger SET
VENTI
Louver Open/Close
02
/
03
Louver Setting
15:10(Fri)
ENT
TN.SEL.
OK
OK
OK
2 Select “Louver Setting” from the individual louver setting menu
and press “OK”.
NOTE
If the number of indoor units connected with the remote control is 1, the
screen passes directly to display the step 4 after this step.
OK
Cancel INDV Louver SET
Louver Setting
Louver Setting
ENT
TN.SEL.
3 Select the indoor unit to change the louver direction by press-
ing “
”, “ ”, “ ” or “ ”. Press “OK”.
NOTE
The indoor unit displayed on the screen ashes if the individual louver is
set.
OK
Louver Setting
01-01
01-02
01-03
Select unit to set.
01-04
ENT
TN.SEL.
4 Press “ ” or “ ” and select the louver from 1 to 4. The se-
lected louver is opened and the other louvers are closed.
OK
Louver Setting:01-03
Adjust air direction & louver angle
1 2
ENT
TN.SEL. ADJ
5 Select the louver angle by pressing “ ” or “ ” and press “OK”.
The conrmation screen will be displayed.
The louver angle will be changed as follows.
INDVINDVINDVINDVINDVINDVINDVINDV
NOTE
The louver direction without “INDV” complies with the setting of the normal
mode.
OK
Louver Setting:01-03
Adjust air direction & louver angle
1 2
ENT
TN.SEL. ADJ
4 Individual remote controls
PC-ARF
TCGB0106 rev.0 - 12/2014
98
