Registration of a group (Main unit)

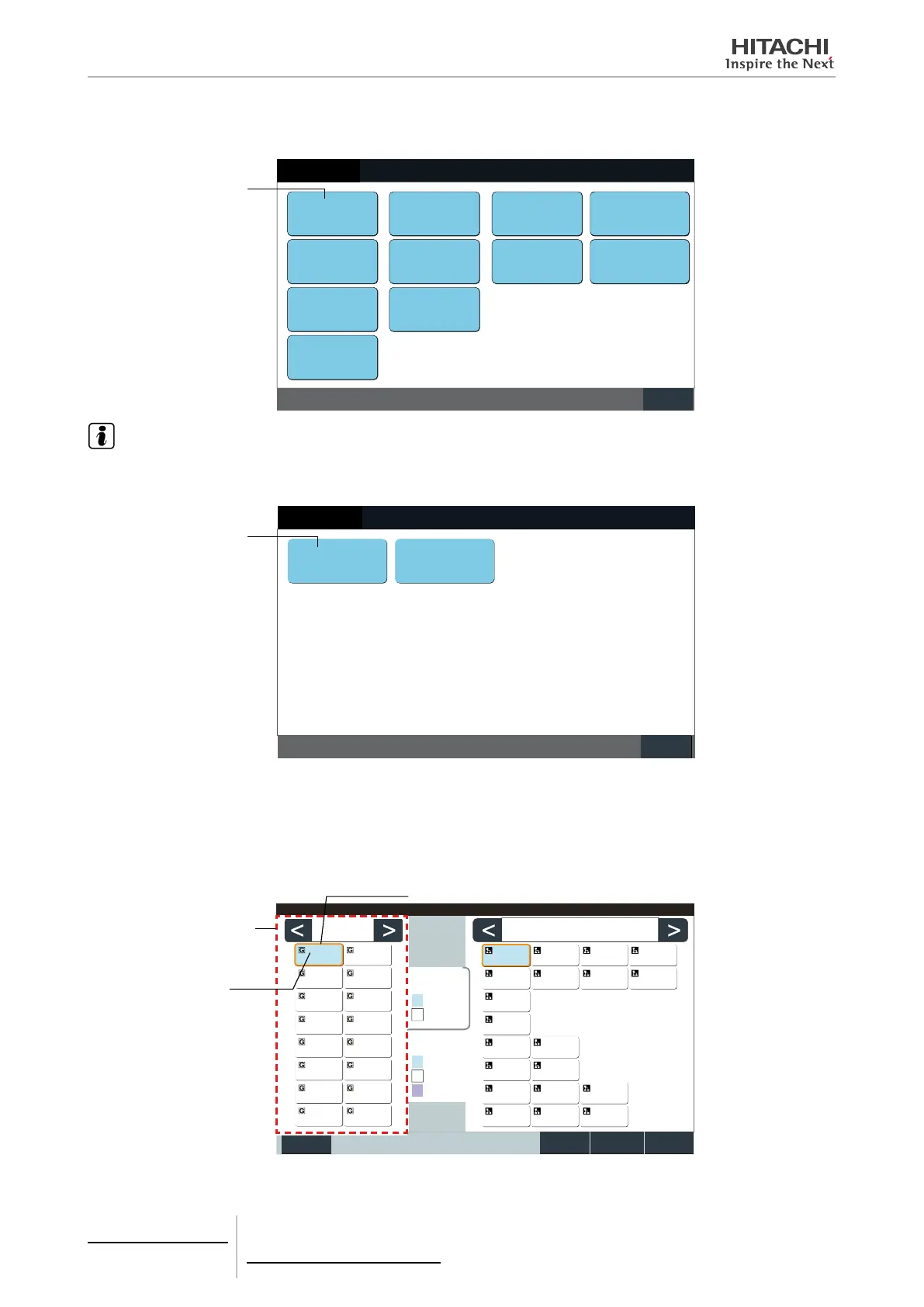

1 Select “Group Register” on the “Service Menu” screen.
Back
Service Menu
25/01/2010 (Mon) 10:20
Group Register
Optional Function
Setting
Exception Setting
of Run/Stop
Operation
External
Input/Output Setting
Exception
External Input
Demand Function
Setting
Button Setting
Alarm History
Checking
Connection
Restore Setting
Contact Info.
Register
(1)
NOTE
This function cannot be selected when the external input signal is input to the external input terminal 1 or 2.
2 Select “Main Unit Register” on the “Group Register”.
Back
Group Register
25/01/2010 (Mon) 10:20
Main Unit Register Sub Unit Register
(2)
3 Select the group for registration of the main unit.
• Tap buttons “<” and “>” on the upper left of the touchscreen to switch the block display.
• The numbers shown inside the buttons indicate block number and group number.
• Select a group button by tapping it. The selected button is highlighted with an orange outline. If the selected group
button is tapped again, the group selection is cancelled.
25/01/2010 (Mon) 10:20
Done
Group Register (Main Unit Register)
UnregisterRegister
Check
Setting
Indoor Unit (01/03)
1-11-2
1-31-4
1-51-6
1-71-8
1-91-10
1-11 1-12
1-13 1-14
1-15 1-16
00-00 00-01
01-00 01-01
02-00
03-00
04-00 04-01
05-00 05-01
06-00 06-01
07-00 07-01
00-02 00-03
01-02 01-03
06-02
07-02
Block 1
Group Regist.
Status
: Done
: Not yet
: Subunit
Indoor Unit
Status
: Done
: Not yet
(3)
Group number
Block
number
5 Centralised remote controls
PSC-A64GT
TCGB0106 rev.0 - 12/2014
