Registration of a group (Sub unit)

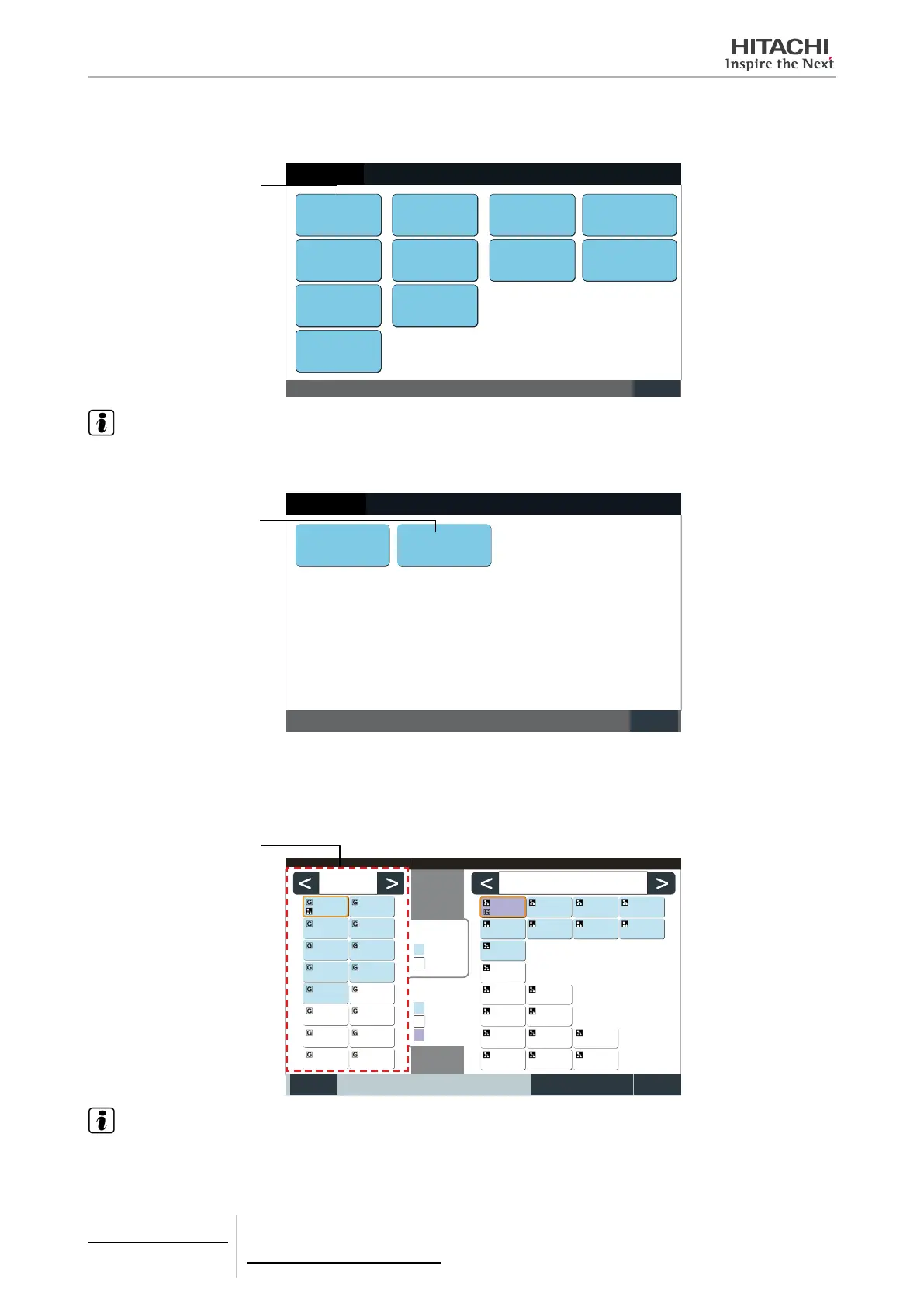

1 Select “Group Register” on the screen of “Service Menu”.
Back
Service Menu
25/01/2010 (Mon) 10:20
Group Register
Optional Function
Setting
Exception Setting
of Run/Stop
Operation
External
Input/Output Setting
Exception
External Input
Demand Function
Setting
Button Setting
Alarm History
Checking
Connection
Restore Setting
Contact Info.
Register
(1)
NOTE
This function cannot be selected when the external input signal is input to the external input terminal 1 or 2.
2 Select “Sub Unit Register” on the screen of “Group Register”.
Back
Group Register
25/01/2010 (Mon) 10:20
Main Unit Register Sub Unit Register
(2)
3 Select the group for registration of the sub unit.
• Tap buttons “<” and “>” on the upper left of the touchscreen to switch the block display.
• Select a group by tapping it. The selected button is highlighted with an orange outline.
• If the selected group button is tapped again, the selection is cancelled.
25/01/2010 (Mon) 10:20
Done
Group Register (Sub Unit Register)
Unregister Register
Check
Setting
Indoor Unit (01/03)
1-11-2
1-31-4
1-51-6
1-71-8
1-91-10
1-11 1-12
1-13 1-14
1-15 1-16
00-00 00-01
01-00 01-01
02-00
03-00
04-00 04-01
05-00 05-01
06-00 06-01
07-00 07-01
00-02 00-03
01-02 01-03
06-02
07-02
Block 1
Group Regist.
Status
: Done
: Not yet
: Subunit
Indoor Unit
Status
: Done
: Not yet
1-1
00-00
(3)
NOTE
The white colour button indicates the non-registered main unit which cannot be selected.
5 Centralised remote controls
PSC-A64GT
TCGB0106 rev.0 - 12/2014
234
