Permitting/Prohibiting Operation from Remote Control Switch
This function is used for prohibiting the operation from the remote control switch.
While operation is prohibited, “Central Control” is indicated on LCD of remote control switch and operating by the remote
control switch is not available.

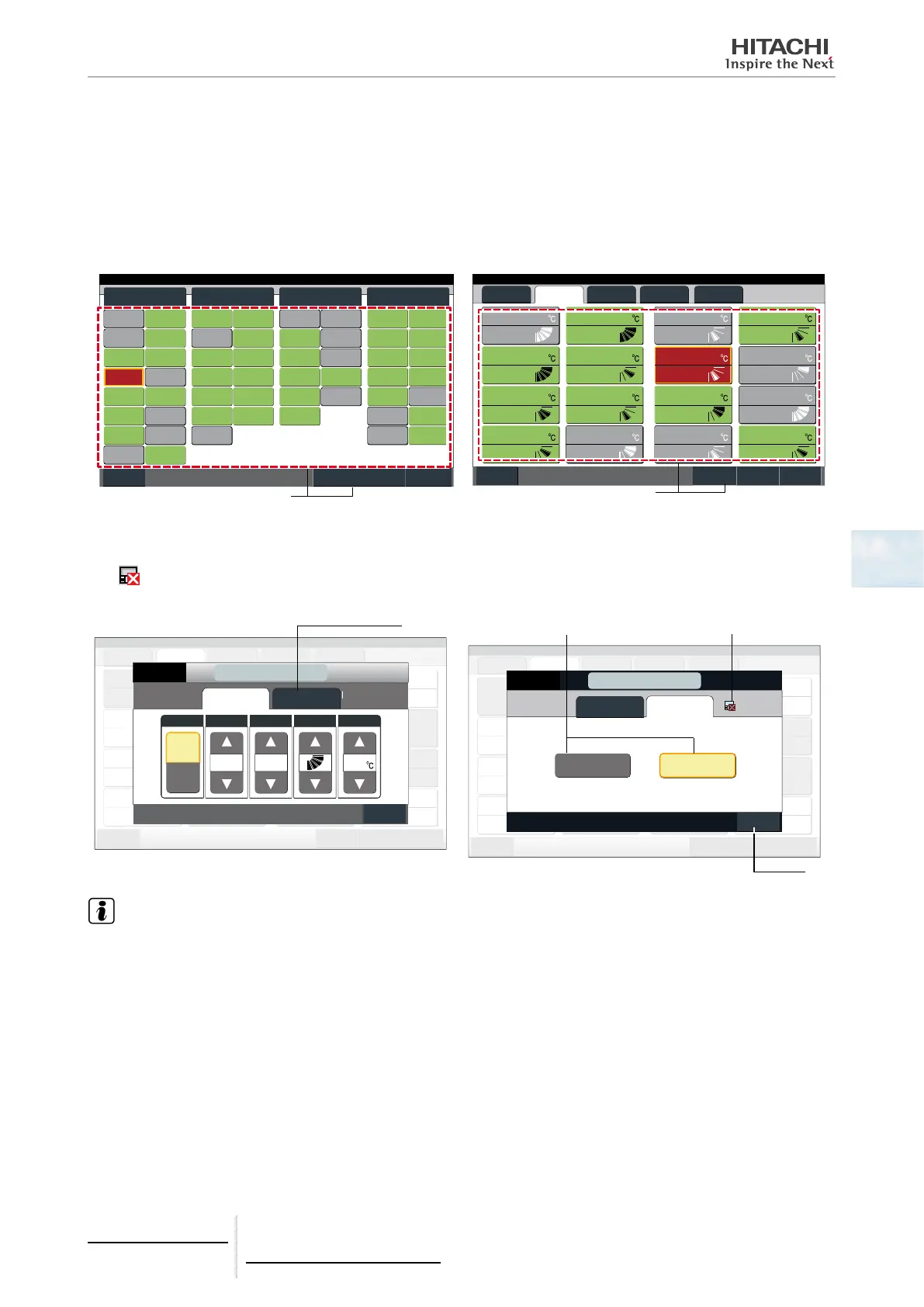

1 Select the target group at the screen of “Monitor 1 (All Groups)” or “Monitor 2 (Block)” to set the function of “RCS
Operation Prohibited” setting. The pop-up of “Setting” for the selected group is displayed on the touchscreen.
Monitor 1 (All Groups) Monitor 2 (Block)
Monitor 1 (All Groups)
F-Level
1-B
F-Level
1-A
F-Level
2
Annex
25/01/2010 (Mon) 10:20
Group1A-01
Group1A-03
Group1A-05
Group1A-07
Group1A-09
Group1A-11
Group1A-13
Group1A-15
Group1A-02
Group1A-04
Group1A-06
Group1A-08
Group1A-10
Group1A-12
Group1A-14
Buffet 1
North Area
Buffet 1
South Area
Buffet 1
East Area
Buffet 1
West Area
Buffet 2
North Area
Buffet 2
South Area
Buffet 2
East Area
Buffet 2
West Area
Meeting
Room A
Meeting
Room B
Meeting
Room C
Meeting
Room E
Meeting
Room D
Kiosk
Group1A-16
Group1B-03
Group1B-05
Group1B-07
Group1B-09
Group1B-11
Group1B-13
Group1B-02Group1B-01
Group1B-04
Group1B-06
Group1B-08
Group1B-10
Group1B-12
Group2-01
Group2-03
Group2-05
Group2-07
Group2-09
Group2-11
Group2-02
Group2-04
Group2-06
Group2-08
Group2-10
Menu
All Groups
Setting
All Groups
Run
All Groups
Stop
(1)
Menu
25/01/2010 (Mon) 10:20
Monitor 2 (Block)
Setting by
Block
Run by
Block
Stop by
Block
26
DRY LOW
Group1A-01
All Groups Annex
F-Level
1-A
F-Level
1-B
F-Level
2
24
DRY LOW
Group1A-05
20
DRY LOW
Group1A-09
22
DRY LOW
Group1A-13
26
DRY LOW
Group1A-02
24
DRY
LOW
Group1A-06
20
DRY LOW
Group1A-10
20
DRY LOW
Group1A-14
20
DRY LOW
Group1A-03
26
DRY
LOW
Group1A-07
26
DRY LOW
Group1A-11
19
DRY LOW
Group1A-15
25
DRY LOW
Group1A-04
26
DRY
LOW
Group1A-08
23
DRY LOW
Group1A-12
22
DRY LOW
Group1A-16
AUTO
AUTO
AUTO
AUTO
(1)
2 Select “RCS Operation Prohibited” by tapping.
3 Select “RCS Operation Prohibited” or “RCS Operation Permitted”. If “RCS Operation Prohibited” is selected, the icon
“
” will be indicated in “Setting” pop-up.
4 Tap “Close” to return to the screen of “Monitor 1 (All Groups)” or “Monitor 2 (Block)”.
Close
26
DRY LOW
RUN
STOP
F-Level 1-A
Group1A-02
AUTO
Setting
Operation
Setting
RCS Operation
Prohibited
RUN/STOP OPE. MODE FAN SPEED LOUVER SET TEMP.
(2)
Close
Setting
Operation
Setting
RCS Operation
Prohibited
RCS Operation
Prohibited
RCS Operation
Permitted
F-Level 1-A
Group1A-02
(3)
(4)
Icon
NOTE
• In the case of “Run/Stop Only” mode, setting change is available by only “All Groups Setting” or “Setting by Block” button.
• If the unit is started from the central station (by tapping “Run” on the central station), it can be stopped from the remote control switch
(by pressing “Stop” on the remote control switch) even while the operation from the remote control switch is prohibited. In this case,
press “Run” on the remote control switch to start the operation again. However, this method is for an emergency stop therefore do not
use this for the normal operation.
• For the unit without the remote control switch, the prohibiting operation should be set.
• Do not set the prohibiting operation if multiple centralised controllers are used in the same H-LINK. Additionally, do not set this by other
centralised controller or it may cause malfunction.
