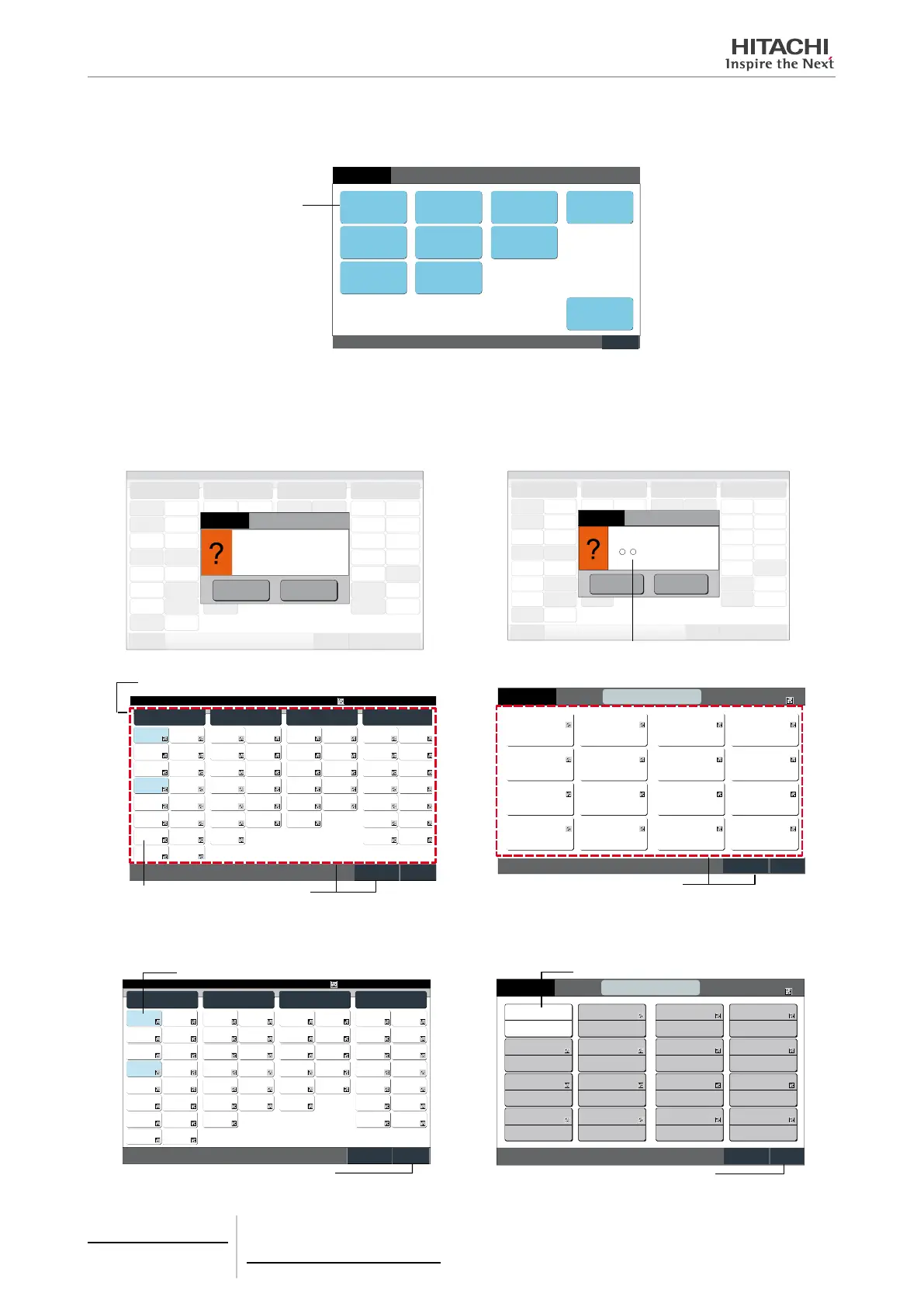

Filter Sign Reset
1 Select “Filter Sign Reset” from the screen of “Menu”. (This is available only when the lter sign is indicated).
Back
Menu
25/01/2010 (Mon) 10:20
Filter Sign Reset Schedule Setting
Adjusting
Date/Time
Touchscreen
Cleaning
Touchscreen
Calibration
Group Name
Register
Screen Display
Setting
Accumulated
Operation
Time
Contact
Information
Service Menu
(1)
2 Select the target (all groups, block or group) to reset the lter sign. The yellow button is indicated for the group with
lter sign.
In the case of simultaneous reset of lter sign: Select “All Groups” or “Block”. The following conrmation screen will be
indicated. The lter sign can be reset simultaneously by selecting “OK”.
When “All Groups” is Tapped When “Block” is Tapped
CancelOK
Confirmation
Reset filter sign for All Groups?
CancelOK
Confirmation
Reset filter sign of
“ . .” ?
Block name is indicated.
Block (Q’ty): 2 and more Block (Q’ty): 1
(2)
Block
Filter Sign Reset
All Groups Done
25/01/2010 (Mon) 10:20
F-Level
1-B
F-Level
1-A
F-Level
2
Annex
Group1A-01
Group1A-03
Group1A-07
Group1A-15
Group1A-08
Group1A-12
Group1A-14
Meeting
Room B
Meeting
Room C
Meeting
Room E
Group1B-03
Group1B-13
Group2-01 Group2-02
Group2-04
Group2-06
Group2-10
Group1A-05
Group1A-09
Group1A-11
Group1A-13
Group1A-02
Group1A-04
Group1A-06
Group1A-10
Buffet 1
North Area
Buffet 1
South Area
Buffet 1
East Area
Buffet 1
West Area
Buffet 2
North Area
Buffet 2
South Area
Buffet 2
East Area
Buffet 2
West Area
Meeting
Room A
Meeting
Room D
Kiosk
Group1A-16
Group1B-05
Group1B-07
Group1B-09
Group1B-11
Group1B-02Group1B-01
Group1B-04
Group1B-06
Group1B-08
Group1B-10
Group1B-12
Group2-03
Group2-05
Group2-07
Group2-09
Group2-11
Group2-08
(2) All Groups
(2) Group
Filter Sign
Reset
All Groups Done
25/01/2010 (Mon) 10:20
Group1A-01
Group1A-14
Group1A-03
Group1A-07
Group1A-15
Group1A-08
Group1A-12
Group1A-05
Group1A-09
Group1A-13
Group1A-02
Group1A-06
Group1A-10 Group1A-11
Group1A-04
Group1A-16
F-Level
1-A
(2)
3 When the lter sign is reset, the group button colour changes into white.
4 Tap “Done” to return to the screen of “Monitor 1 (All Groups)” or “Monitor 2 (Block)”.
Filter Sign Reset
All Groups Done
25/01/2010 (Mon) 10:20
F-Level
1-B
F-Level
1-A
F-Level
2
Annex
Group1A-01
Group1A-03
Group1A-07
Group1A-15
Group1A-08
Group1A-12
Group1A-14
Meeting
Room B
Meeting
Room C
Meeting
Room E
Group1B-03
Group1B-13
Group2-01 Group2-02
Group2-04
Group2-06
Group2-10
Group1A-05
Group1A-09
Group1A-11
Group1A-13
Group1A-02
Group1A-04
Group1A-06
Group1A-10
Buffet 1
North Area
Buffet 1
South Area
Buffet 1
East Area
Buffet 1
West Area
Buffet 2
North Area
Buffet 2
South Area
Buffet 2
East Area
Buffet 2
West Area
Meeting
Room A
Meeting
Room D
Kiosk
Group1A-16
Group1B-05
Group1B-07
Group1B-09
Group1B-11
Group1B-02Group1B-01
Group1B-04
Group1B-06
Group1B-08
Group1B-10
Group1B-12
Group2-03
Group2-05
Group2-07
Group2-09
Group2-11
Group2-08
(3)
(4)
Filter Sign
Reset
Done
All Groups
25/01/2010 (Mon) 10:20
Group1A-01
Group1A-14
Group1A-03
Group1A-07
Group1A-15
Group1A-08
Group1A-12
Group1A-05
Group1A-09
Group1A-13
Group1A-02
Group1A-06
Group1A-10 Group1A-11
Group1A-04
Group1A-16
F-Level
1-A
(3)
(4)
