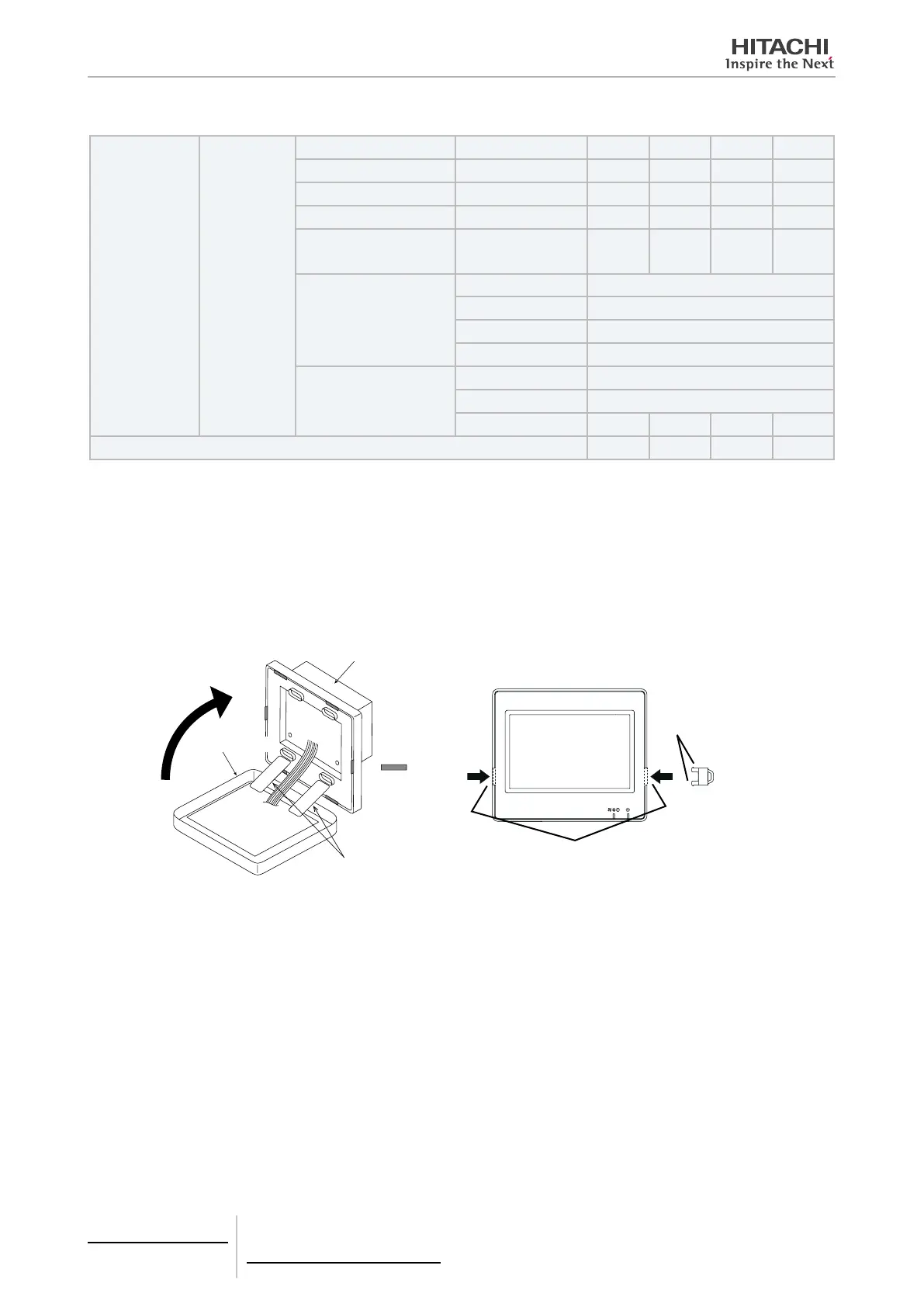

DSW1 setting
Combination of
PSC-A32MN
with other central
controllers
Other central
controllers
Name Model
DSW1 DSW2 DSW3 DSW4
Central Station EZ PSC-A64GT
OFF OFF OFF OFF
Central Station mini PSC-A32MN
OFF OFF OFF OFF
Central Station PSC-A64S
OFF OFF OFF OFF
Centralised ON/OFF
Controller
PSC-A16RS
OFF OFF OFF OFF
BMS Gateways
HC-A(8/64)MB
Not compatible
HC-A16KNX
Not compatible
KNX001
Not compatible
HARC-BX E (A/B)
Not compatible
CSNET
CSNET Manager LT
Not compatible
CSNET Manager XT
Not compatible
CSNET WEB (1)
OFF OFF OFF OFF
Without other central controllers
OFF OFF OFF OFF
(1)Check compatibility limitations in CSNET WEB section.
2
Close the unit case until hearing a snapping sound, and make sure that the front and rear parts of the case close fully.
At this time, check that connection bands are not trapped between the front and the rear parts of the case.
a.
Hook the tabs into the front side of the case.
b.
The front side of the case will close when hooking up the tabs of the lateral and lower sides.
Front case
Rear case
Catch for
îš¿xing
Connection band
(6 catches)
To attach the touch pen holder
When attaching the touch pen holder to the
controller, insert the chip into any of the attach-
ing holes for the holder until hearing a click.
Copper
Hole for touch pen holder
5 Centralised remote controls
PSC-A32MN
TCGB0106 rev.0 - 12/2014
298
