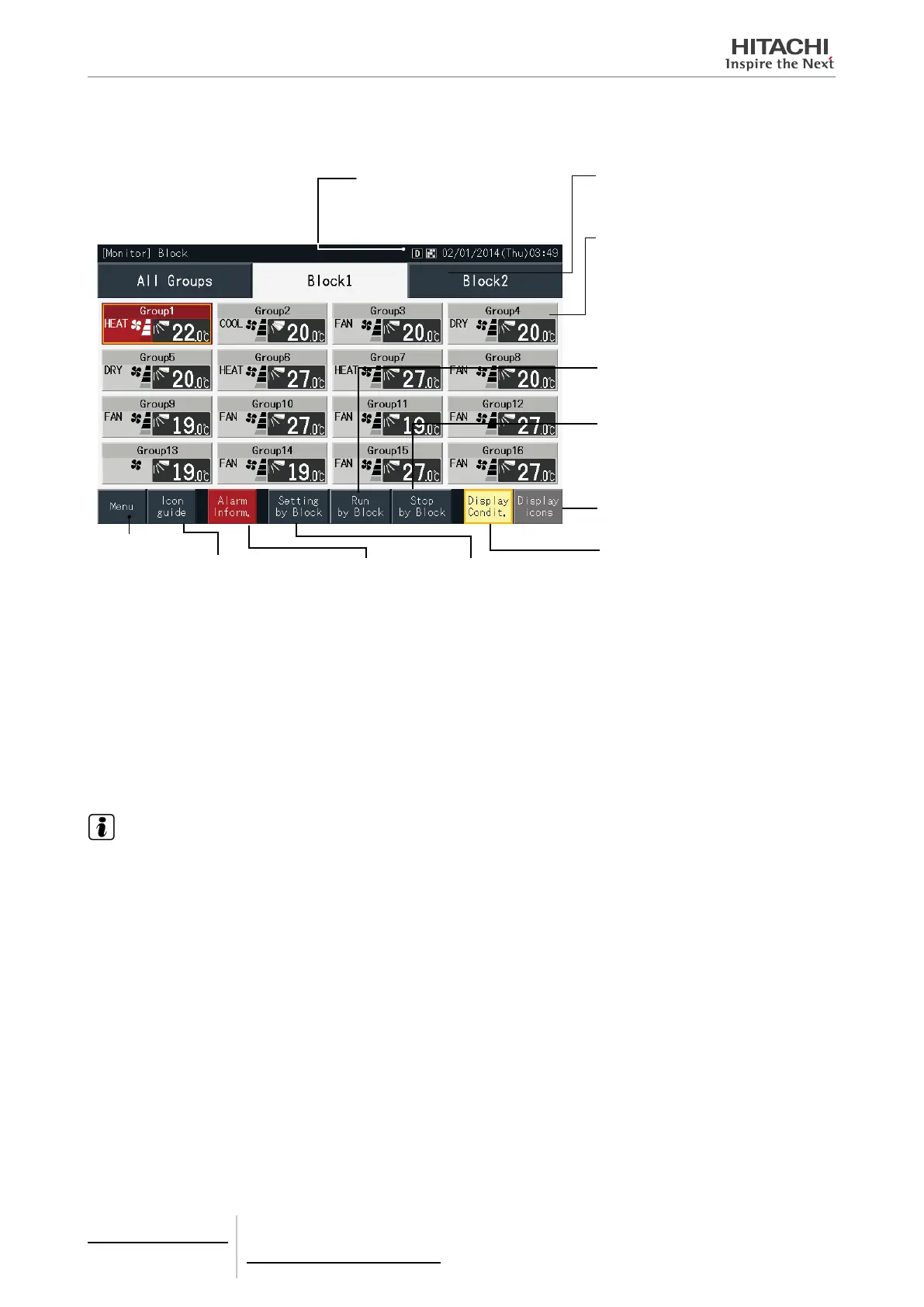

“Monitor 2 (Block)”
Current display
Indicates the current display
(groups in block)
Unit state
Indicates the state of the unit with
icons like lter sign, demand, etc.
Block tab
Changes the monitor display into
“Block” or “All Groups” display.
Group button
Indicates the operation status
Green: Running
Grey: Stopped
Red: Abnormal
If the target group button is tapped,
“Settings” of the target group screen
will be indicated.
“Stop by Block” button
Stops the operation of all groups in the
target block simultaneously.
“Display icons” button
“Display Condit.” button
“Run by Block” button
Runs the operation of all groups in the
target block simultaneously.
“Setting by Block” button
Changes the setting of all
the groups in the target
block simultaneously.* This
function can be used when
Control Mode (Run/Stop
Only) is in “Disable” mode.
If Control Mode (Run/Stop
Only) is in “Enable” mode,
the Run/Stop operation will
be switched by tapping the
target.
“Menu” button
Displays menu
items such as
“Filter Sign Re-
set”, “Schedule
Setting”, etc.
“Alarm Info.”
button
Provides
detailed infor-
mation about
abnormalities.
“Icon Guide” but-
ton
Displays an expla-
nation of the Icons.
NOTE
The screen image may be different from the actual screen.
5 Centralised remote controls
