Group and block settings
Display of All Groups
1

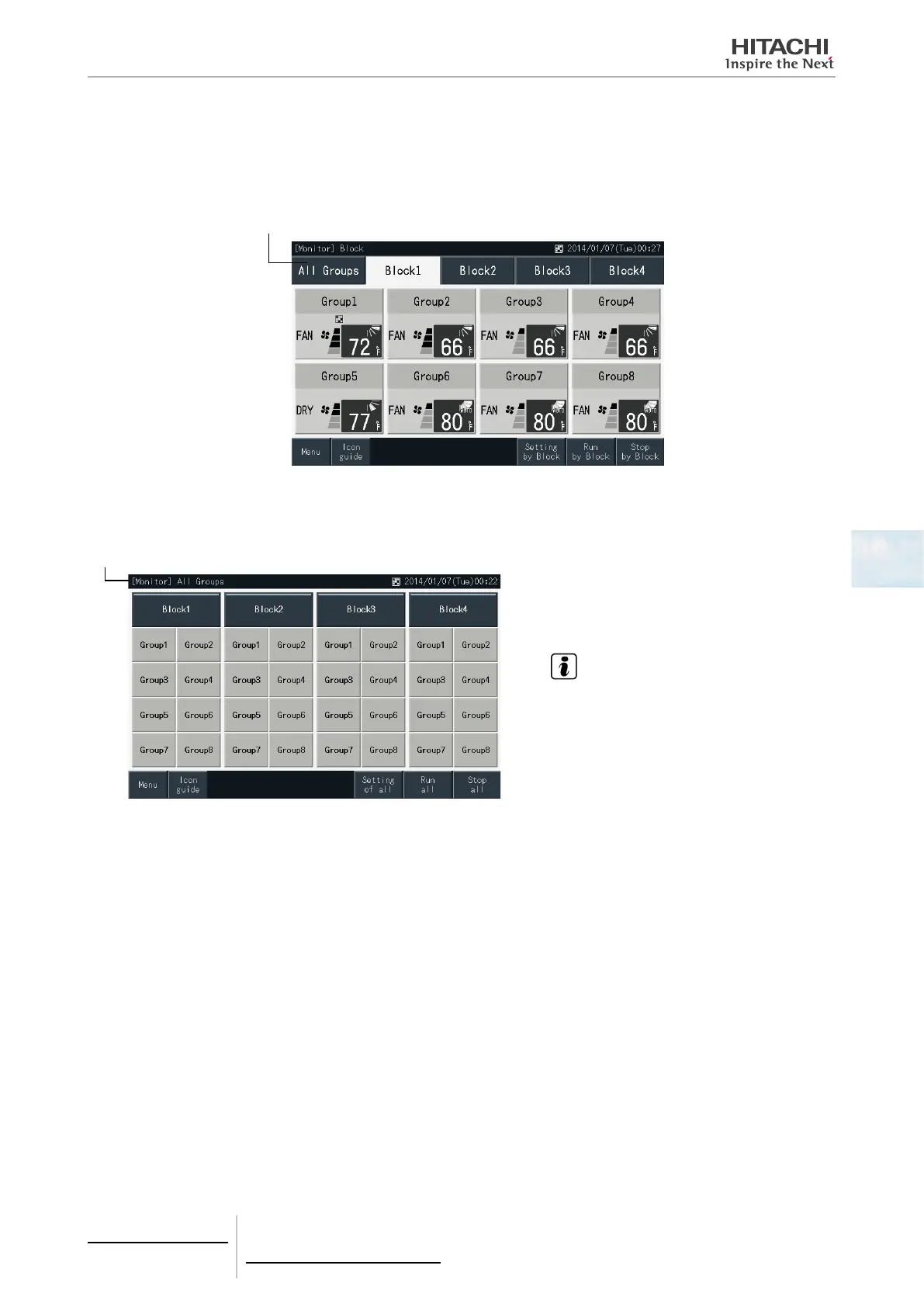

Tap “All Groups” on the touchscreen display.
The tab marked with (1), “All Groups”, is not displayed if only one block has been registered.
(1)*
2
All groups are displayed on the touchscreen (all the indoor units connected to the central station are shown). The
operation status of each group is indicated by the colour of the group, as shown below:
(2)
Green: Run
Grey: Stop
Red: Abnormal
NOTE
• “All Groups” screen may be different depend-
ing on the Control Pattern. The screen on the
left corresponds to the display of Pattern A (4
Blocks × 8 Groups), as set by Control Pattern.
• The touchscreen display is put to sleep mode
automatically when the touchscreen is not oper-
ated for a given length of time. Tap the screen
to wake up.
5 Centralised remote controls
PSC-A32MN
TCGB0106 rev.0 - 12/2014
