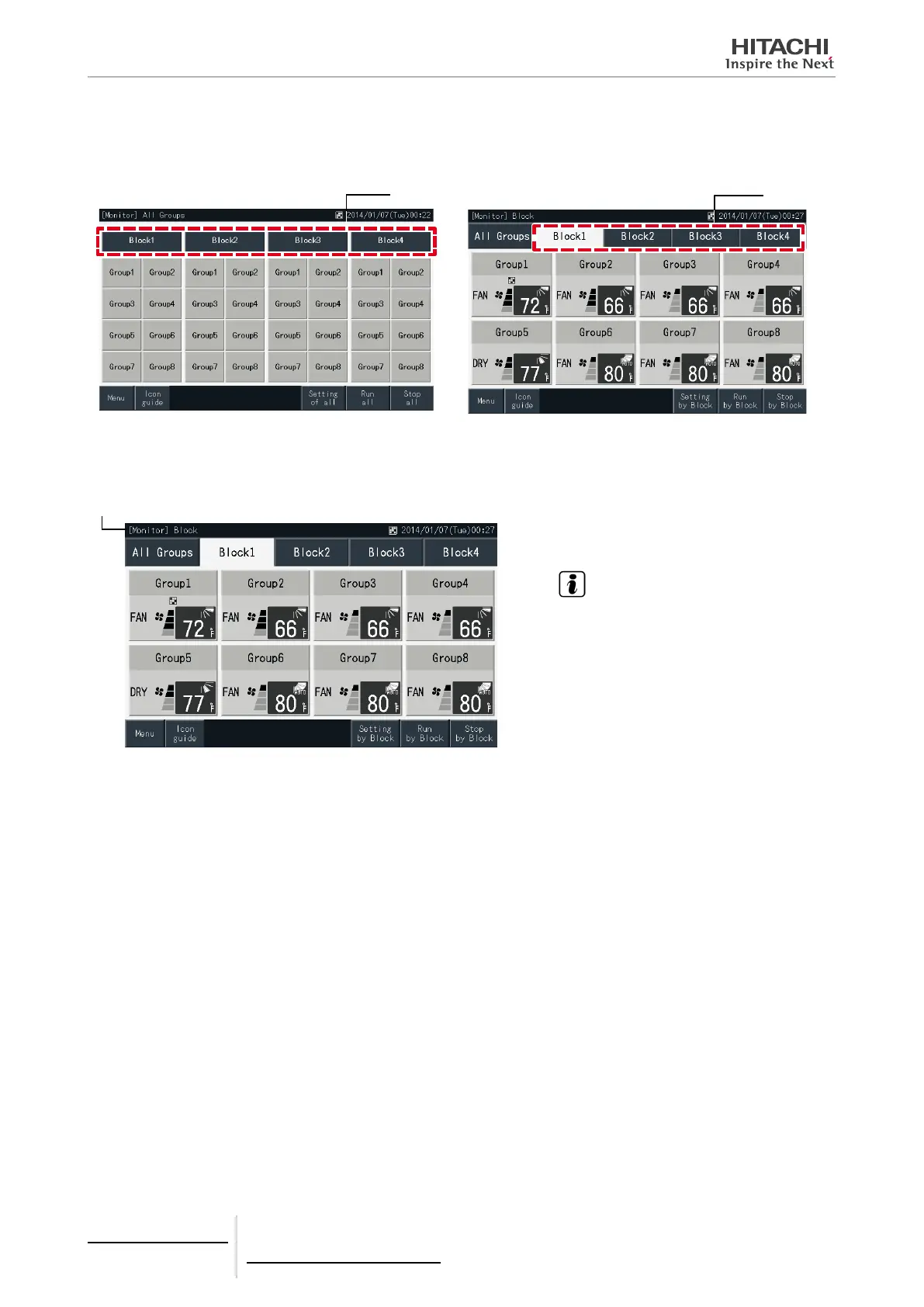

Display of Specied Block
1 Select the target block from the screen of “Monitor 1 (All Groups)” or “Monitor 2 (Block)”.
Monitor 1 (All Groups) Monitor 2 (Block)
(1) (1)
2 The groups in the selected block are displayed on the touchscreen. The operation status of each group is indicated
by the colour of the group, as shown below:
(2)
Green: Run
Grey: Stop
Red: Abnormal
NOTE
• “Block” screen may be different depending on
the Control Pattern. The screen on the left cor-
responds to the display of Pattern A (4 Blocks ×
8 Groups), as set by Control Pattern.
• The touchscreen display is put to sleep mode
automatically when the touchscreen is not
operated for a given length of time. Tap the
screen to wake up.
5 Centralised remote controls
PSC-A32MN
TCGB0106 rev.0 - 12/2014
316
