Run/Stop operation for each group (Control mode: “Run/Stop only”)

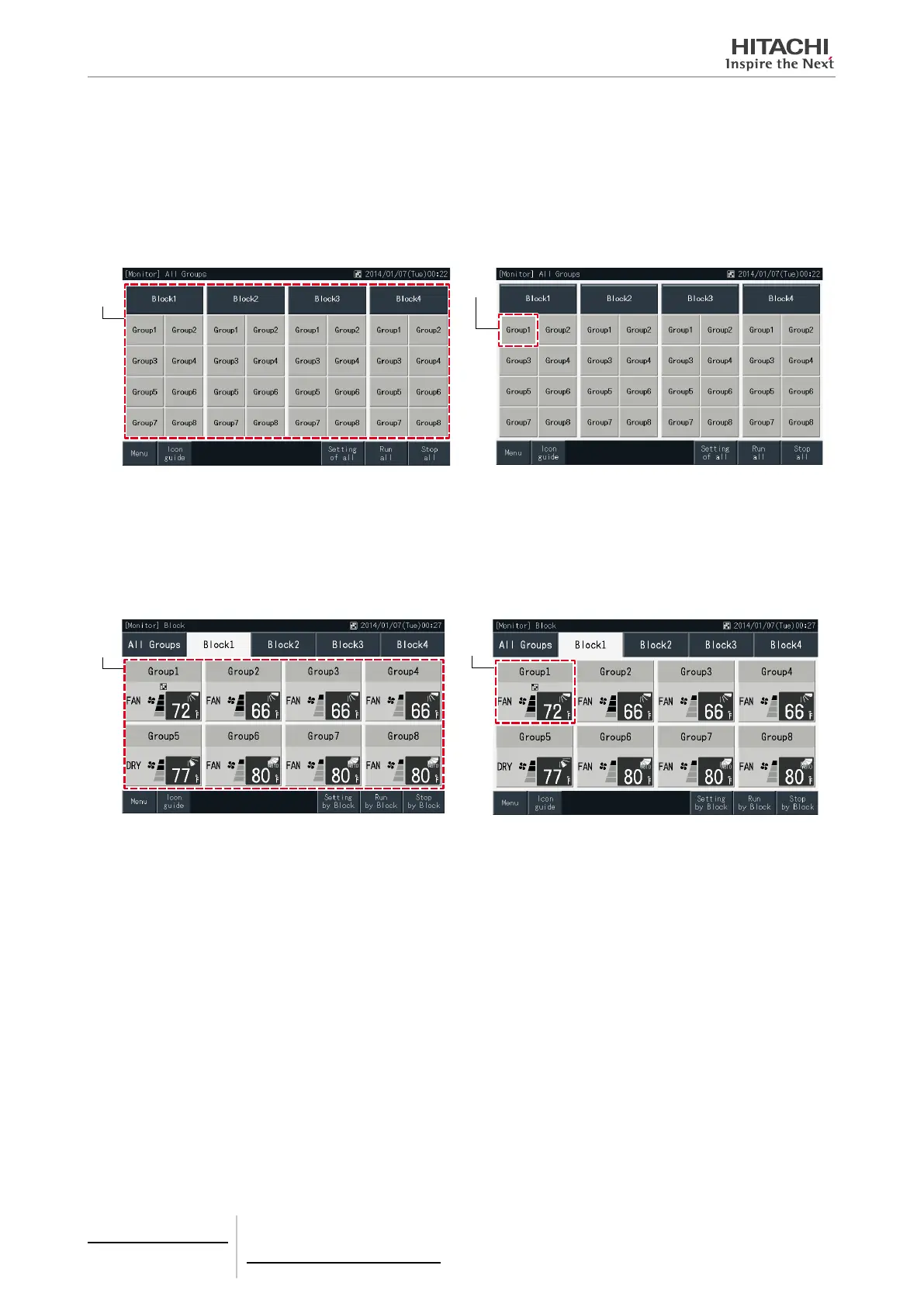

Monitor 1 (All Groups)
1 Select the target group at the “Monitor 1 (All Groups)” screen in “Run/Stop Only” mode.
2 The operation state of the selected group is switched alternatively between Run and Stop when tapping its button.
In this mode, simultaneous Run/Stop operation for all groups is available with the “Run all” and “Stop all” buttons.
Refer to section “Simultaneous Run/Stop for All Groups” for details.
(1)
(2)
Monitor 2 (Block)
1 Select the target group at the “Monitor 2 (Block)” screen in “Run/Stop Only” mode.
2 The operation state of the selected group is switched alternatively between Run and Stop when tapping its button.
In this mode, simultaneous Run/Stop operation by block is available with the “Run by Block” and “Stop by Block” buttons.
Refer to section “Simultaneous Run/Stop for Block” for details.
(1)
(2)
5 Centralised remote controls
PSC-A32MN
TCGB0106 rev.0 - 12/2014
320
