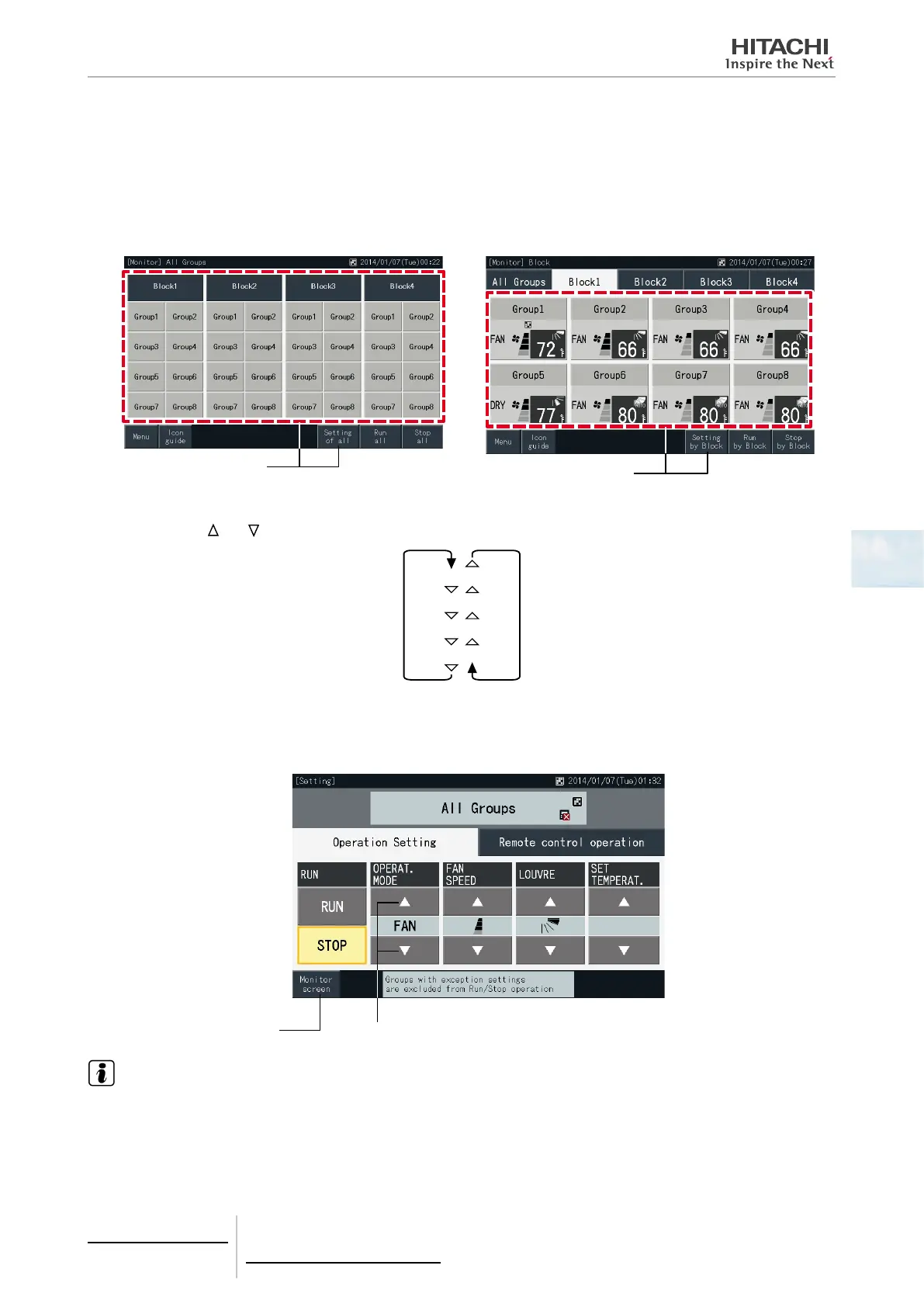

Main parameters settings
Operation Mode
1
Select the target group for the change of operation mode settings at the “Monitor 1 (All Groups)” or “Monitor 2 (Block)”
screens. The screen with the settings for the selected group is displayed on the touchscreen.
Monitor 1 (All Groups) Monitor 2 (Block)
(1)
(1)
2
By tapping the “
” or “ ” buttons under “Operat. Mode”, operation mode changes alternatively as shown below:
COOL
HEAT
DRY
FAN
The “AUTO” (Heating/Cooling Automatic Operation) is also included as an option when applicable.
3
Tap “Monitor screen” to return to the Monitor screen.
(2)(3)
NOTE
• When there are two or more groups registered in the same block, it is possible to change the target group for setting by tapping the
arrow buttons at the upper corners of the screen.
• In case that control mode is set as “Run/Stop Only”, setting changes affect all groups or all blocks.
It is not possible to change settings for each group.
• Some modes cannot be set, depending on the type of air conditioner unit. Contact your dealer or a Hitachi customer service centre
for detailed information.
5 Centralised remote controls
PSC-A32MN
TCGB0106 rev.0 - 12/2014
321
5
