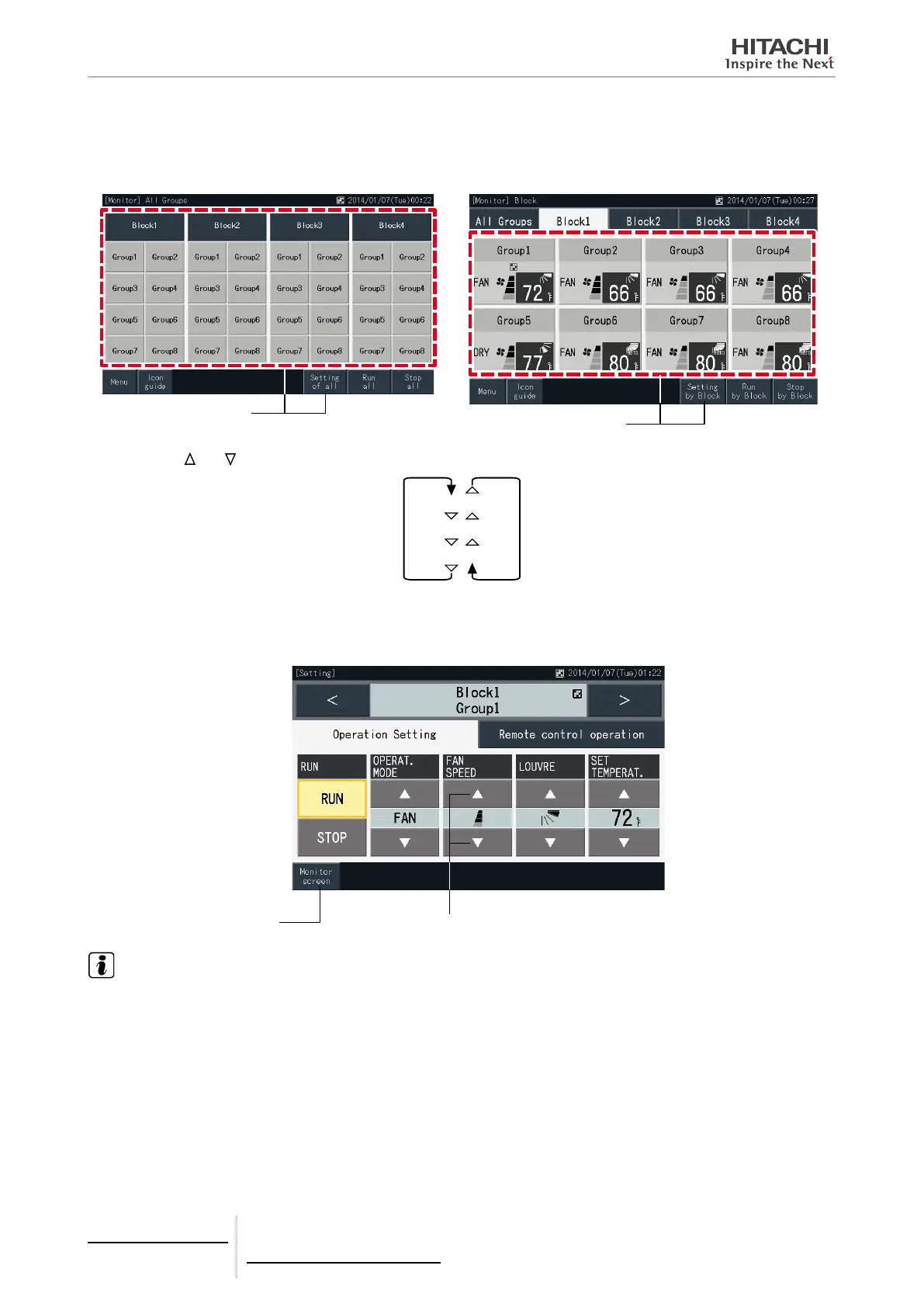

Fan Speed
1
Select the target group for the change of fan speed setting at the “Monitor 1 (All Groups)” or “Monitor 2 (Block)”
screens. The screen with the settings for the selected group is displayed on the touchscreen.
Monitor 1 (All Groups) Monitor 2 (Block)
(1)
(1)
2 By tapping “ “ or “ ” buttons under “Fan Speed”, the fan speed setting changes alternatively as shown below.
HIGH
MED
LOW
* “HIGH2” or “AUTO” may not be indicated depending on the type of air conditioner.
3 Tap “Monitor screen” to return to the “Monitor” screen.
(2)(3)
NOTE
• When there are two or more groups registered in the same block, it is possible to change the target group for setting by tapping the
arrow buttons at the upper corners of the screen.
• In case that control mode is set as “Run/Stop Only”, setting changes affect all groups or all blocks.
It is not possible to change settings for each group.
• The actual fan speed during dry operation is always “LOW”, regardless of the fan speed setting.
• The gure above shows an example of a connected air conditioner unit. The fan speed may not be indicated in certain cases.
5 Centralised remote controls
PSC-A32MN
TCGB0106 rev.0 - 12/2014
322
