6 Building air conditioning controls
CSNET WEB (PSC-A160WEB1)
TCGB0106 rev.0 - 12/2014
445445
6

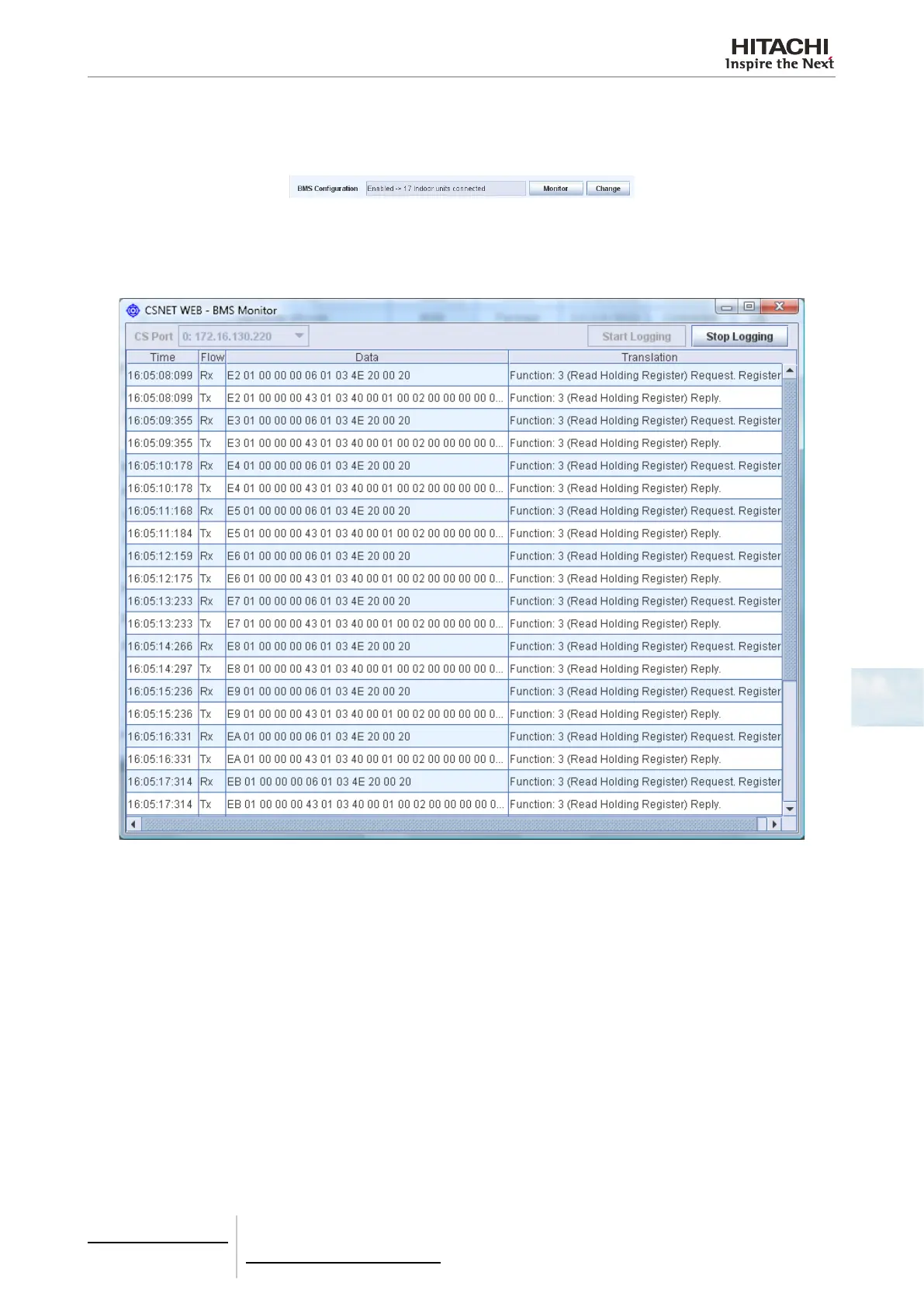

BMS Monitor
Pressing Monitor button, it will be open the following windows, where the user could select which CSNET WEB will be
monitored. After select it, must be started the logging.
During the logging process, CSNET WEB will register all the Modbus communications that it will receive, and it will be
showed on the table.
The following table shows when the message have been received, if it is transmitted (Tx) or received (Rx), the data bytes
of the message, and a translation for a best understanding of the user.
