Access to programming

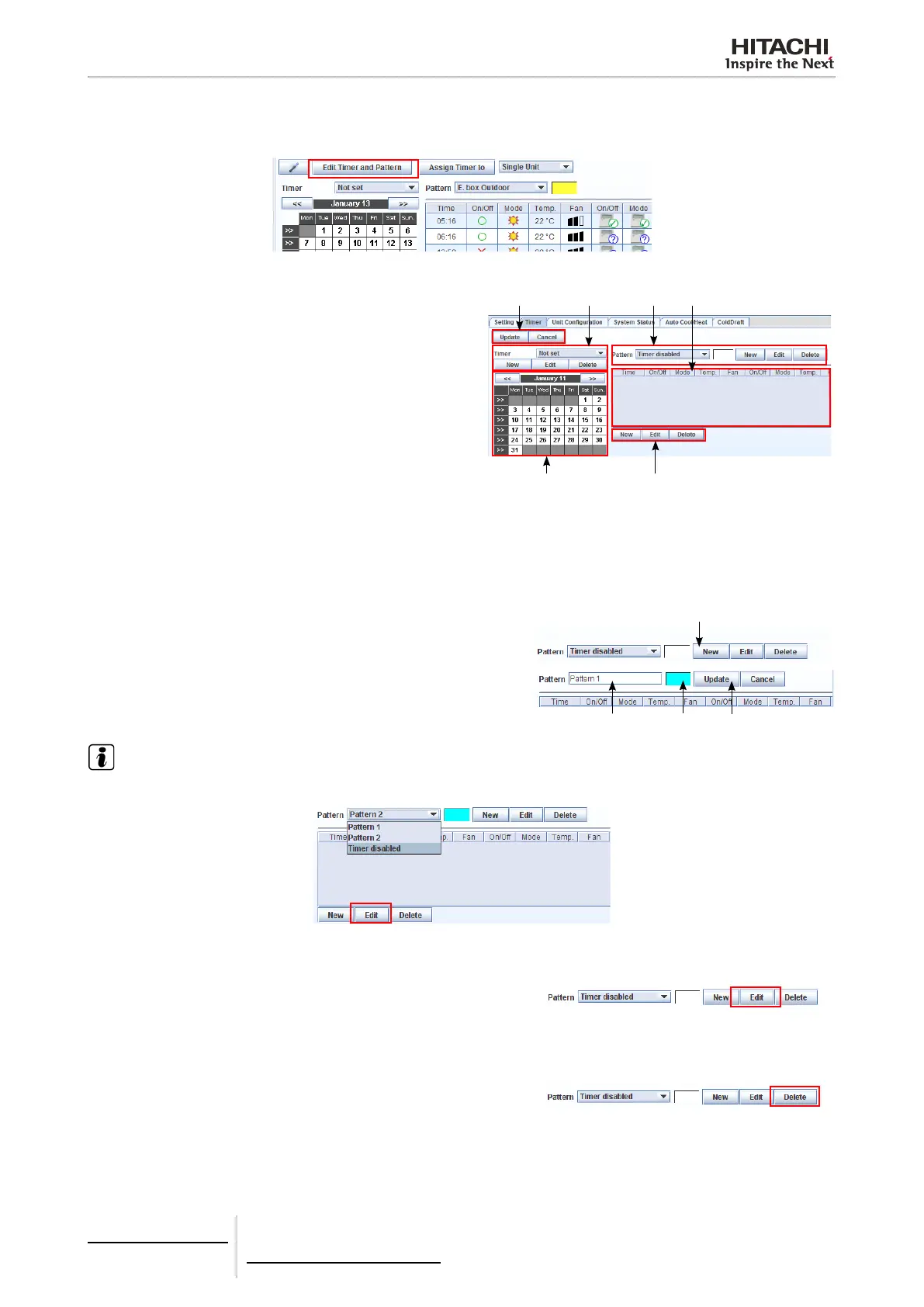

To create the pattern and timer push the Edit Timer and Pattern button:
With the following functions:
1 Area to update and close programming.
2 Area to create New, Edit and/or Delete programmed timer.
3 Area to create New, Edit and/or Delete pattern to be pro-
grammed
.
4 Entries for the Daily Pattern you program.
5 Area to create New, Edit and/or Delete an entry of the pro-
grammed pattern.
6 Programmed annual timer.
1
2 3
4
56
Programming of daily pattern
After accessing the Timer program zone, follow the instructions below. For more details of the programmable parameters,
see the previous page.
- Creating a new pattern
1 Press the New button.
2 Enter the name of the new pattern in the box indicated:
e.g. “Pattern 1”.
3 Select the colour using the palette selection by double clicking on it.
4 After completing this stage, press Update to program the time of
the new pattern.
1
2
3
4
NOTE
After updating the pattern, the rst pattern you programmed is shown. For the following steps, select once more the pattern you have just
created.
- Edition of an existing pattern
• Select an existing pattern using the eld in the drop-down menu.
• Press the Edit button.
• Modify the colour of the selected pattern as indicated for creating
a new pattern.
• Modify the daily program as indicated for daily programming.
- Deleting an existing pattern
• Select an existing pattern using the eld in the drop-down menu.
• Press the Delete button.
To Next Page
