6 Building air conditioning controls
CSNET WEB (PSC-A160WEB1)
TCGB0106 rev.0 - 12/2014
467467
6

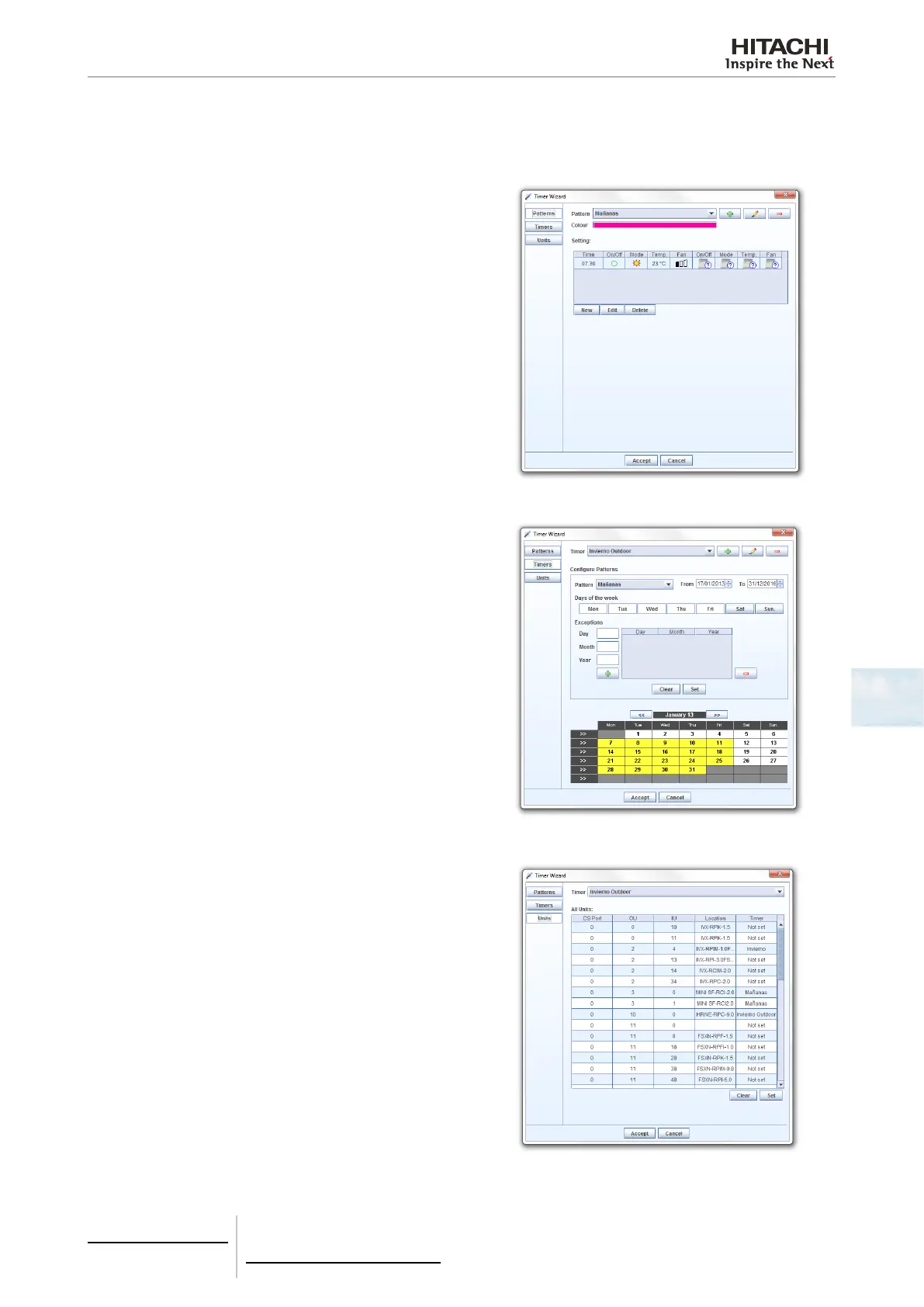

Timer wizard
Timer Wizard divides the conîš¿guration process in 3 parts:
• Patterns
Create all the different patterns that will be application in a cer-
tain hour of a day.
• Timers
Create different timers and assign to its days the selected pat-
tern.
Assignation is done by selecting the desired pattern; specify
the days of the week where it should be conîš¿gured, which
dates should apply and exception days.
Exceptions can be done by day, month, year or any combina-
tion of them. If some îš¿eld of an exception is not set, it applies
the exception for any value of this parameter.
• Units
Assign the selected timer to the units on the table.
Multiple selection by using mouse drag or control button can
be used.
