6 Building air conditioning controls
CSNET WEB (PSC-A160WEB1)
TCGB0106 rev.0 - 12/2014
489489
6

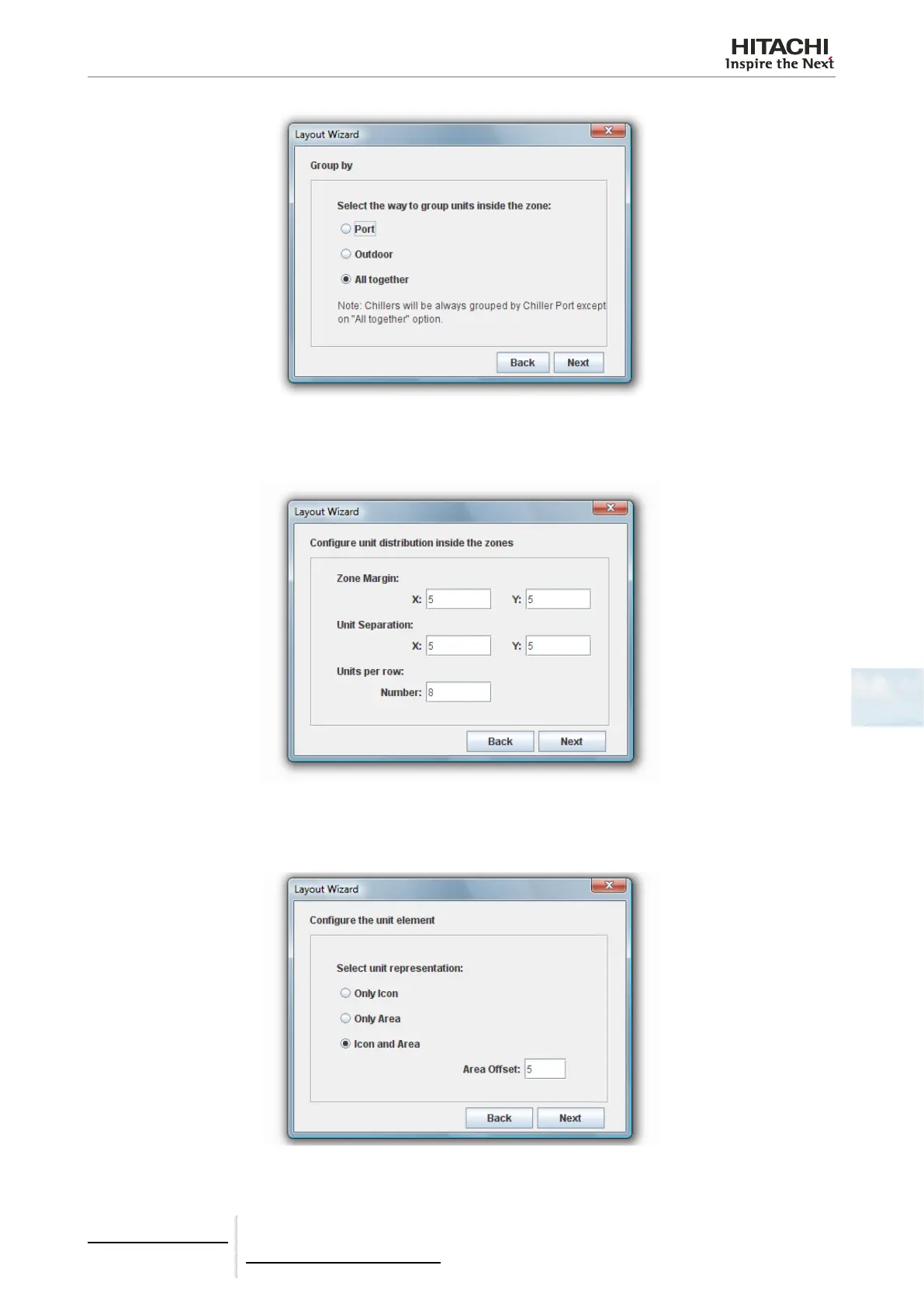

You can choose the distribution of your units and shapes inside the zones:
You can specify the margins with the zone, the separation between units and the number of units that you want to have
on each row.
On next step you can decide how will be the units element:
Units can be only the area as a square, only the unit icon or both.
Both modes will have an area with the icon over this area. You must specify an area offset.
On next image you can see an example, applying the entered values:
