6 Building air conditioning controls
CSNET WEB (PSC-A160WEB1)
TCGB0106 rev.0 - 12/2014
488488

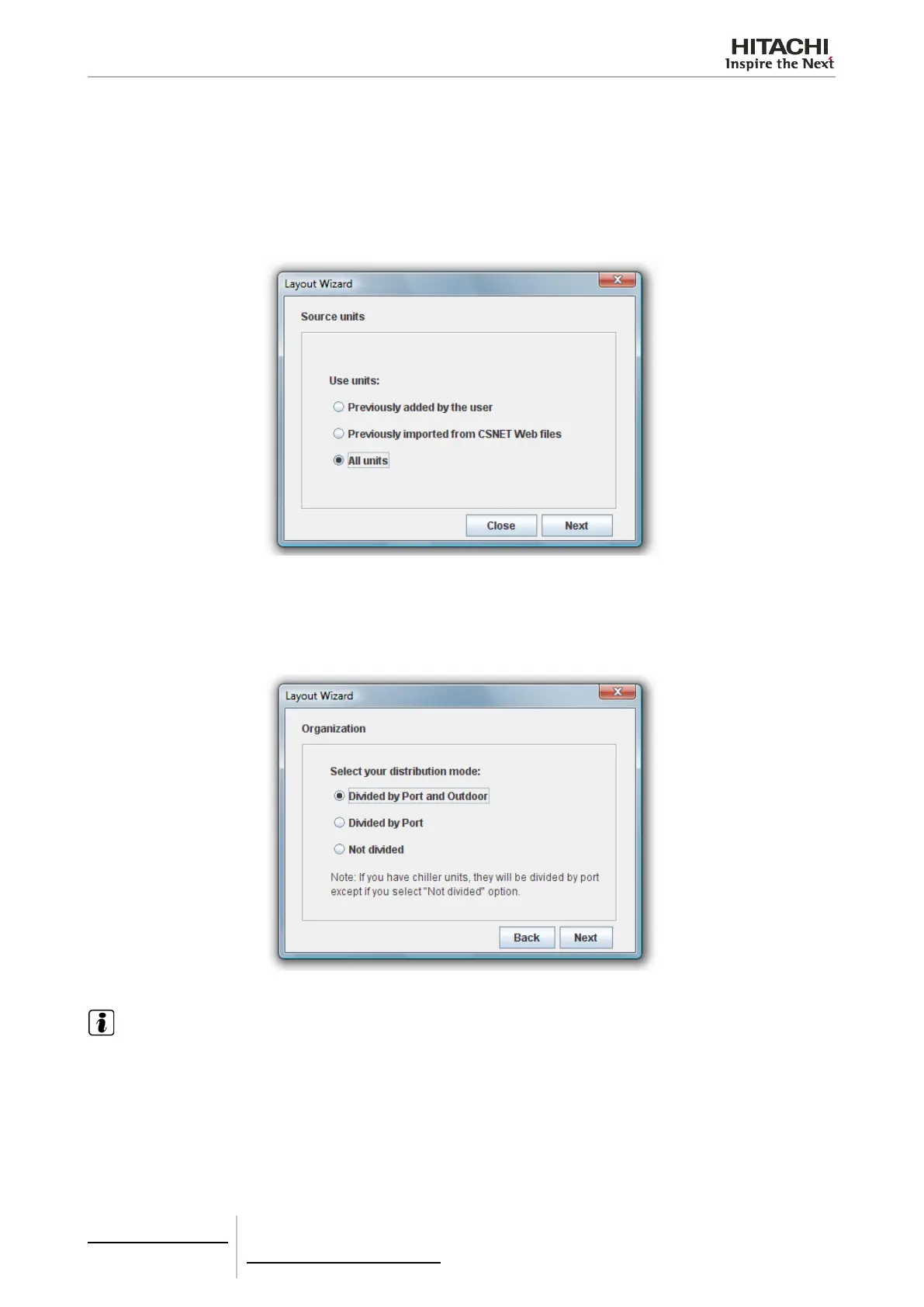

Create Building Layout le using wizard option
In order to make easy your layout creation you can import the current units of the CSNET WEB. To do this, you have to
open the option le properties and select the units tab.
Before creating your layout you must select the units used by the wizard function.
Units added by the user means all units that user add entering values in shape edition.
Imported units are units that you can automatically import from CSNET WEB explained on the last point.
Next, you must to select how the wizard application will distribute your units.
It will create a zone for each port or port and outdoor that exists, entering inside a shape for each unit.
Not divided option will enter all the units in the root zone.
On next step you can specify the organisation of the units inside the zone.
You can group the units by port, by outdoor units or all in a same group.
NOTE
If you distribute and group units by same option, on each zone will be only a unit.
