Hitachi PSC-A1T Technical Catalogue

6 Building air conditioning controls
CSNET Manager LT/XT
TCGB0106 rev.0 - 12/2014
545545
6


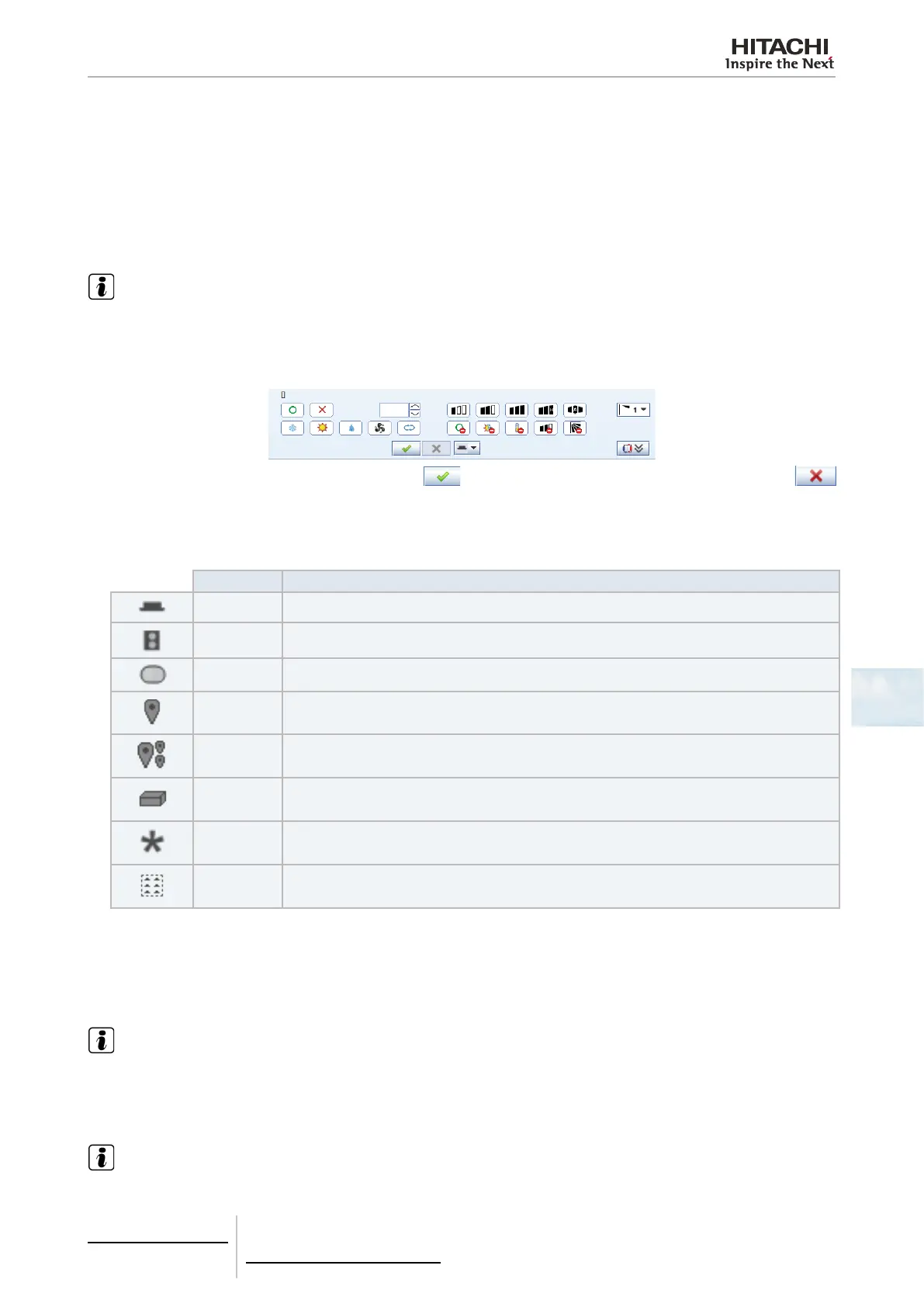

Operation panel
Operation panel is the interface available in table of indoor units and building layout view, that is shown by default and it is
used to send orders to the units. In case of using a virtual remote controller, the panel is hidden.
The Operation Panel has the following access elds offering complete control of the units:
• Setting
• System Status
Each of these elds is explained below.
NOTE
Visibility of these elds depends on privilege level of the user.
Setting
This option shows the parameters which can be selected for each indoor unit.
After selecting the parameters to be adjusted, press (Update) to send the order to the units selected or
(Cancel) to cancel the operation.
1 Select the unit. The unit selected in the table of indoor units is identied by the Location eld. Using the Set by eld,
select the group of units whose parameters you want to adjust:
Name Send the order to
Indoor unit The selected indoor unit
Outdoor unit All the indoor units belonging to the same outdoor unit than the selected one.
Area All the indoor units belonging to the same tree area unit than the selected one.
Zone All the indoor units on the same building layout zone than the selected unit.
Zone and
subzones
All the indoor units on the same building layout zone and zones below the same zone where the
selected unit belong.
CS Port All the units connected to the device on the same CS Port than the selected units
All All the units
Selection The selected units on the table or layout.
2 Adjust parameters. Click with the mouse on the parameter you want to select. Select the temperature with the buttons
“” or “>“. The temperature margin is:
- From 19ºC to 30ºC for cooling.
- From 17ºC to 30ºC for heating.
Select the fan speed and the position of the bafe plate by pushing the Fan speed and Louver buttons.
NOTE
Automatic mode cannot be set for units with the RAC adapter PSC-6RAD so that the option will not appear on screen when this type of
units is selected.
3 Parameter lock. The parameters selected in RCS Lock will remain locked in the previous position when the option was
activated. This means that they cannot be modied from the remote control.
NOTE
ON/Off lock only locks in OFF. Unit always can be stopped from the remote control.
