6 Building air conditioning controls
CSNET Manager LT/XT
TCGB0106 rev.0 - 12/2014
546546

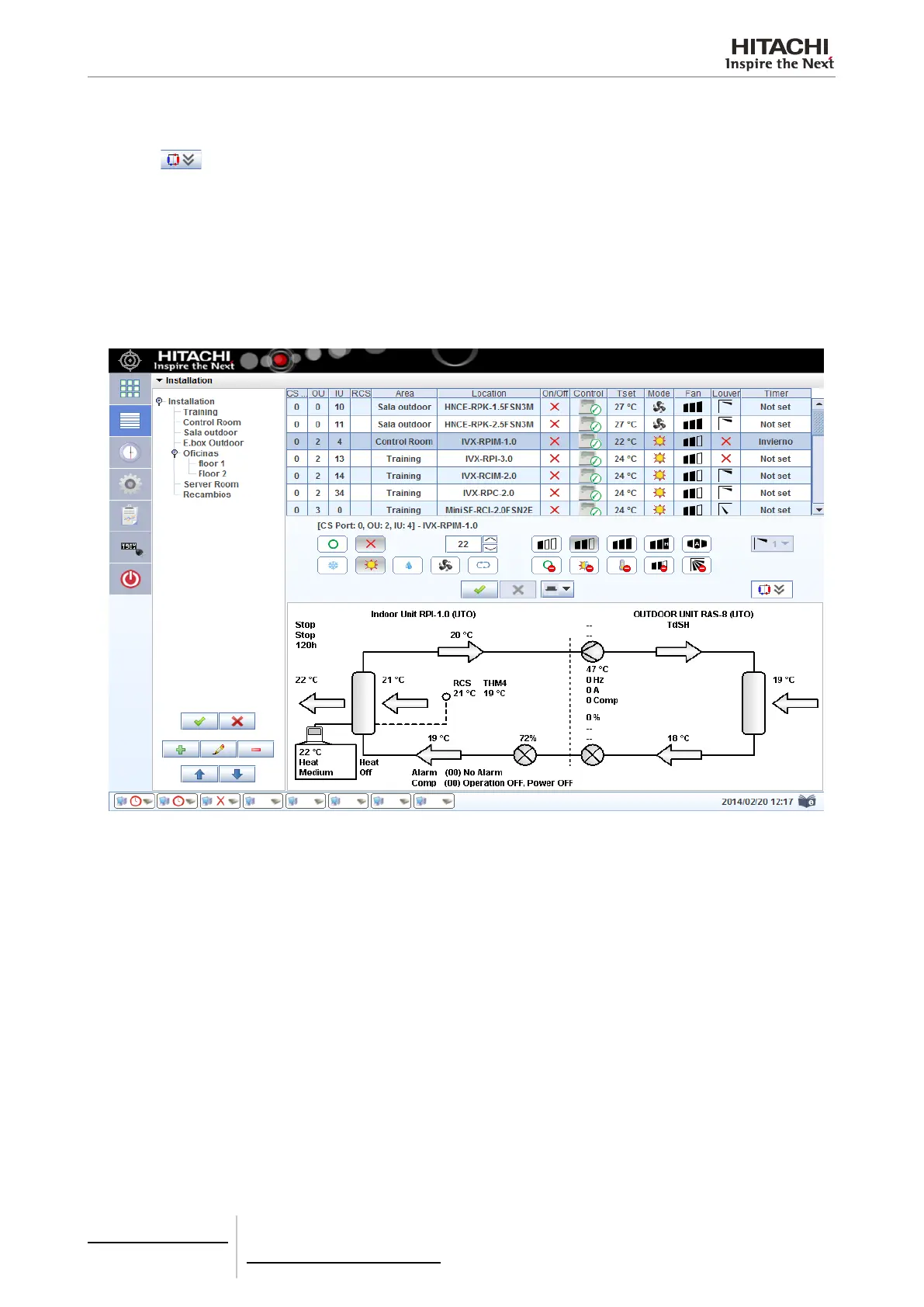

System status
The system status îš¿eld shows the operating conditions of each of the units controlled by CSNET Manager
(by clicking
)
The system status shown corresponds to the same unit selected in the indoor unit table, as shown in the adjoining example.
Description
The information display is divided into 4 parts:
• Data of the indoor unit.
• Setting data of the remote control and/or the conguration eld.
• Data of the outdoor unit.
• Alarm produced and reason for the compressor status.
