6 Building air conditioning controls
CSNET Manager LT/XT
TCGB0106 rev.0 - 12/2014
578578
Packaged
To get the data of power consumption for Packaged units, enter the date interval and click the Get Data button.
Select on the table the outdoor units to be included on the calculation

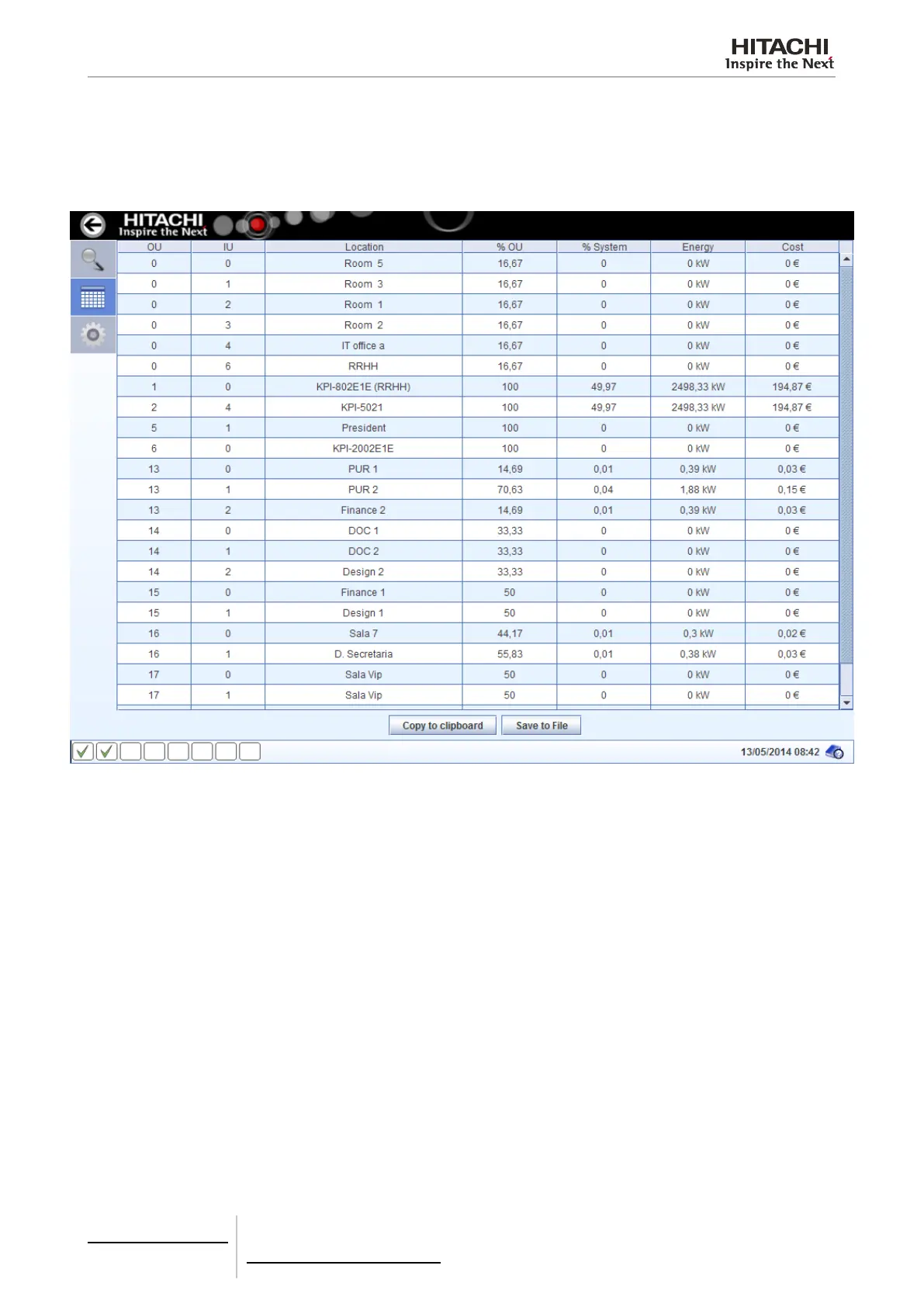

A table will appear with different information.
Meaning of the table îš¿elds:
OU: number of the outdoor unit. Number between parenthesis indicates that booth outdoors are the same and we are using
the virtual address to differentiate it.
IU: number of the indoor unit.
Location: description of the machine. This value corresponds to the description îš¿eld of the conîš¿guration of indoor unit.
%OU: indoor unit consumption percentage in relation to its outdoor unit power consumption.
%System: indoor unit consumption percentage in relation to all the installation power consumption.
Energy: When power meter devices are connected, CSNET Manager is able to show the energy consumed by the unit.
Cost: cost related to the energy consumed based on conîš¿gured tariffs prices.
Save to îš¿le button permits the data to be normally saved. The path folder and îš¿le name will be requested.
