7 Gateways for building management systems
KNX001
TCGB0106 rev.0 - 12/2014
657657
7

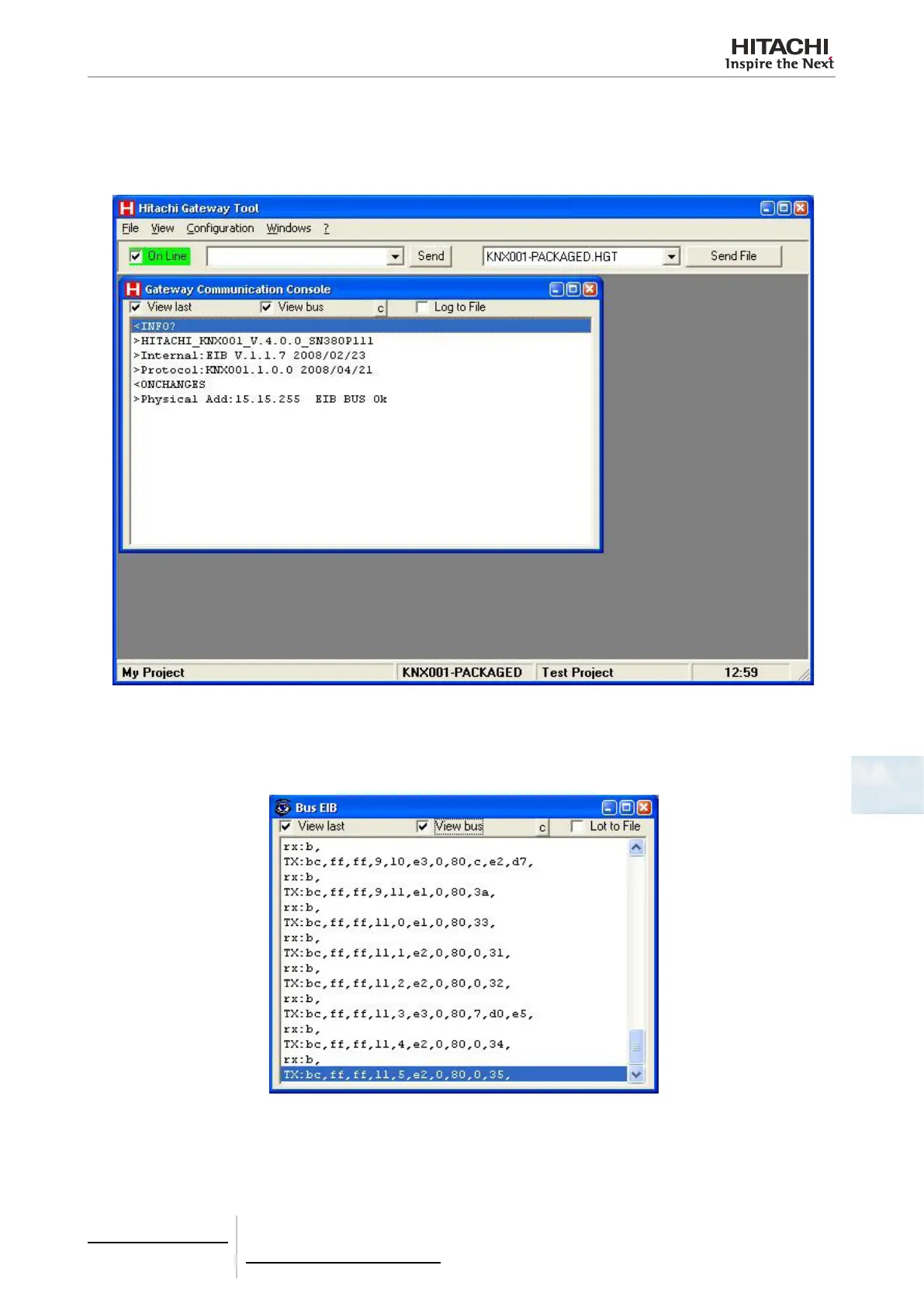

4 Enable the check box off-line under the menu bar (it will change to on-line) and HGT will ask for INFO from KNX001.
If the connection is correct, KNX001 will respond with its identiîš¿cation (this can be supervised via the console window
of communication with KNX001, as shown in the image). This window shows information messages where the KNX
groups appear with their value when changes in their status occur.
Once connected, all HGT’s supervision and monitoring options are available.
To monitor communication between KNX001 and the KNX Bus, select the menu See -> Bus -> EIB. The window
of the Communication viewîš¿nder of KNX will be opened. This window shows in real time the communication links
with the KNX bus, along with information messages.
