7 Gateways for building management systems
KNX001
TCGB0106 rev.0 - 12/2014
658658

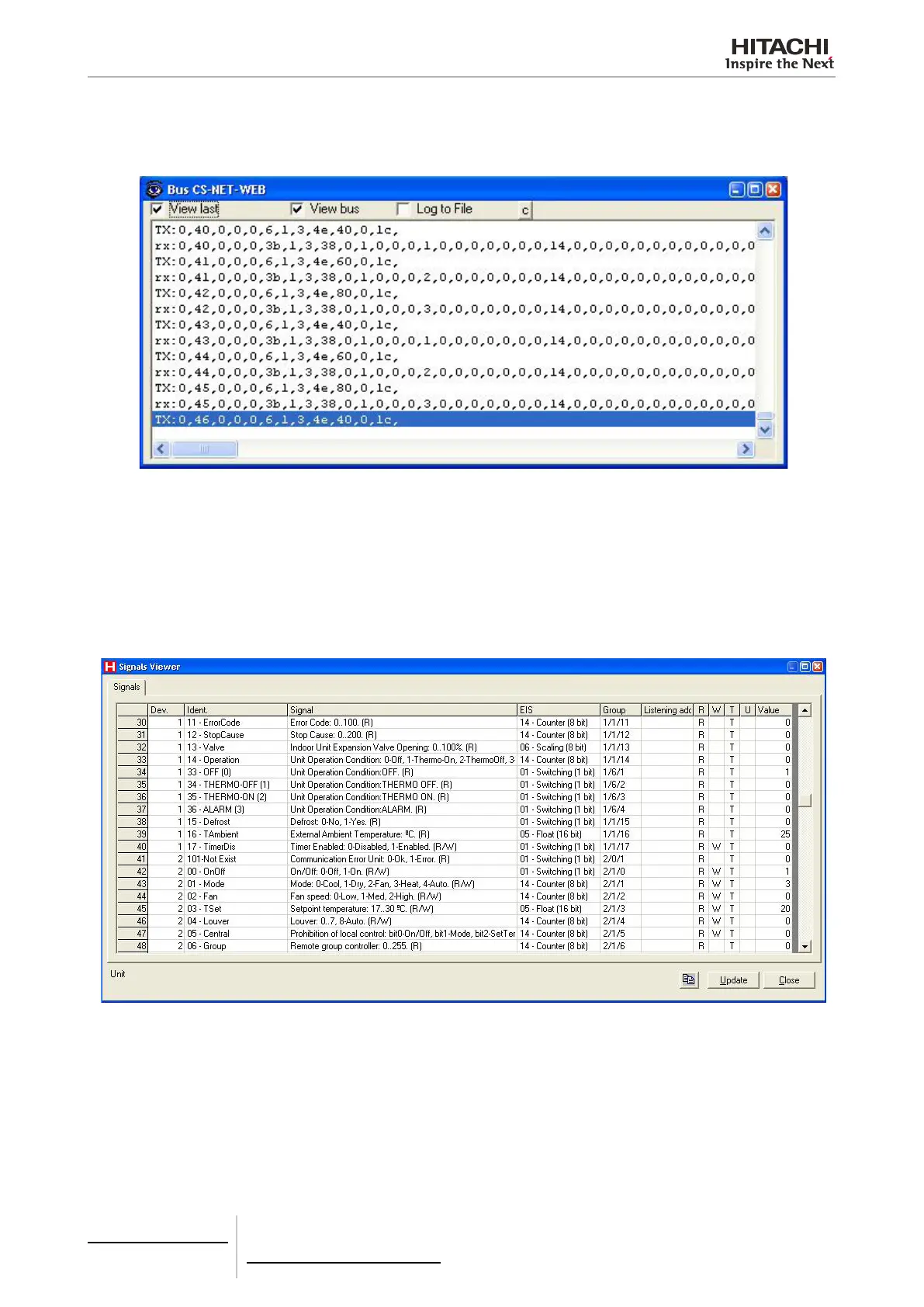

To monitor communication between KNX001 and CSNET WEB, select the menu See -> Bus -> CSNET WEB.
The window of the Communication viewnder of the external system will be opened. This window shows
in real time the communication links with the external system, along with information messages.
Both windows permit communications to be recorded in a text le with extension “.log”. This function will only be used
for the resolution of problems for technical service. To use it, enable the check box Log to File.
To supervise the status of the signals congured, select the menu See -> Signals. The window of the Signals viewnder will
be opened. This window shows in real time the status of the signals congured. After a reset of KNX001, or after sending
a conguration le, all the signals are updated automatically. If connecting to a KNX001 that is already in operation, you
must press the button, Refresh, once only to update the status of all signals. While you maintain the connection the signals
will be kept updated.
The signals viewnder can be used even if only one of the two systems is connected, KNX or CSNET WEB. It is very useful
for supervision and tests.
