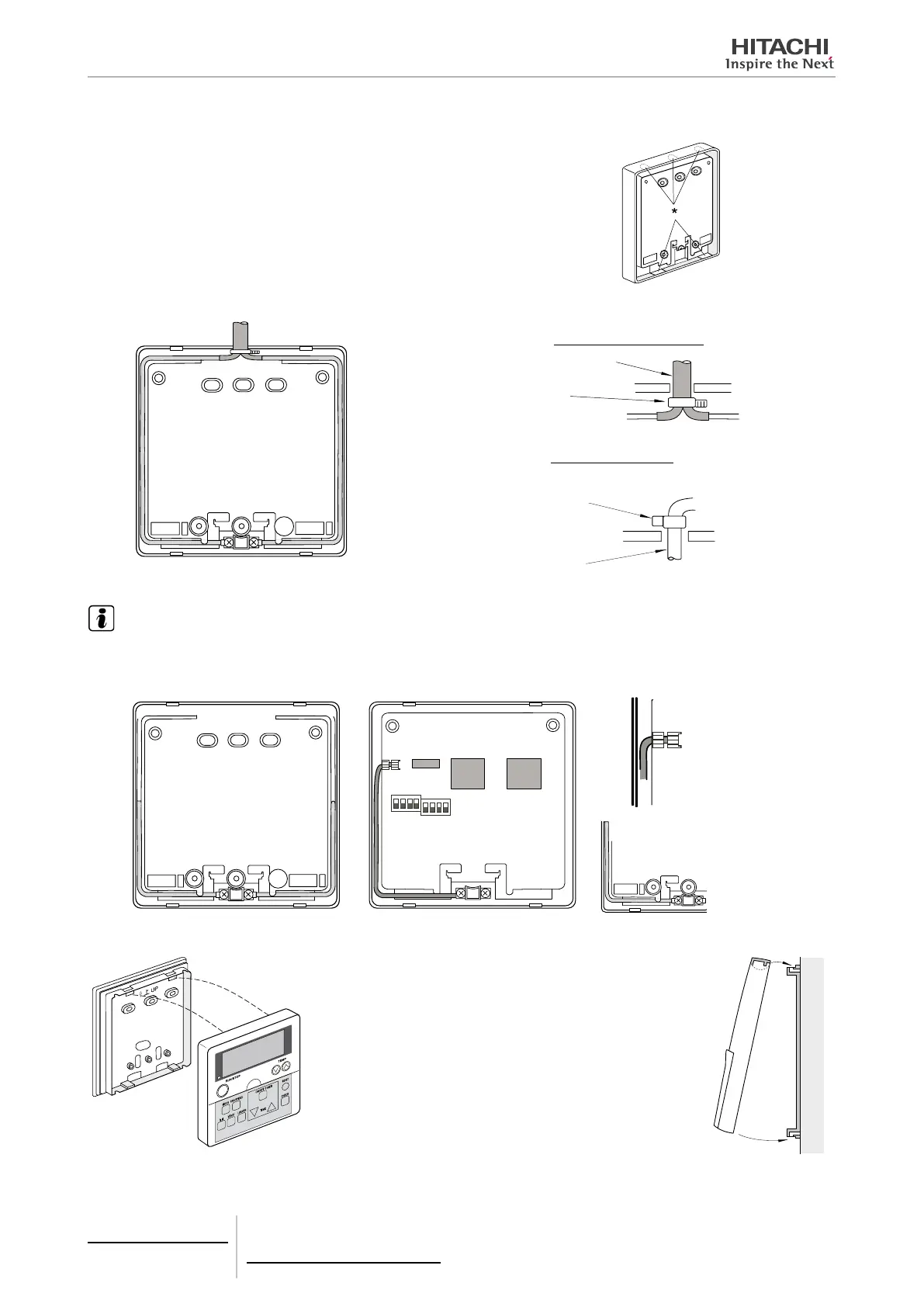

2 Select and cut the knockout hole through which to pass the cable.
Determine the position of the wiring and drill one of the holes marked with
* in the diagram.
If using an accessory cable, drill a hole on the bottom.
3 Insert the cable through the hole/s.
Attach the band to
the cable inside the
knockout hole
Twisted pair cable
Cable
Cable
Cable tie
(îš¿eld supply)
Accessory cable
Cable
Cable tie
(îš¿eld supply)
NOTE
Strip the protective insulation from the accessory cable supplied, if used.
4 Connect the cable to the PCB plate connector or to the terminal.
Connector
Terminal
board
5 Fix the timer to the bracket.
a. Insert the hooks of the timer into the holes on the top
of the bracket.
b. Push the bottom part of the timer towards the bracket.
c. The timer will click when it is secured in place. Check
that the four hooks are correctly inserted.
8 Control support devices
PSC-A1T
TCGB0106 rev.0 - 12/2014
698
