If using an electrical box
There are different types of electrical boxes available on the market that can be used for this installation, for example:
• Electrical box for one remote control unit (without cover).
• Electrical box for 2 remote control units (without cover).
• Electrical box for one remote control unit (with cover).
• Electrical box for 2 remote control units (with cover).
• Output box (with cover).

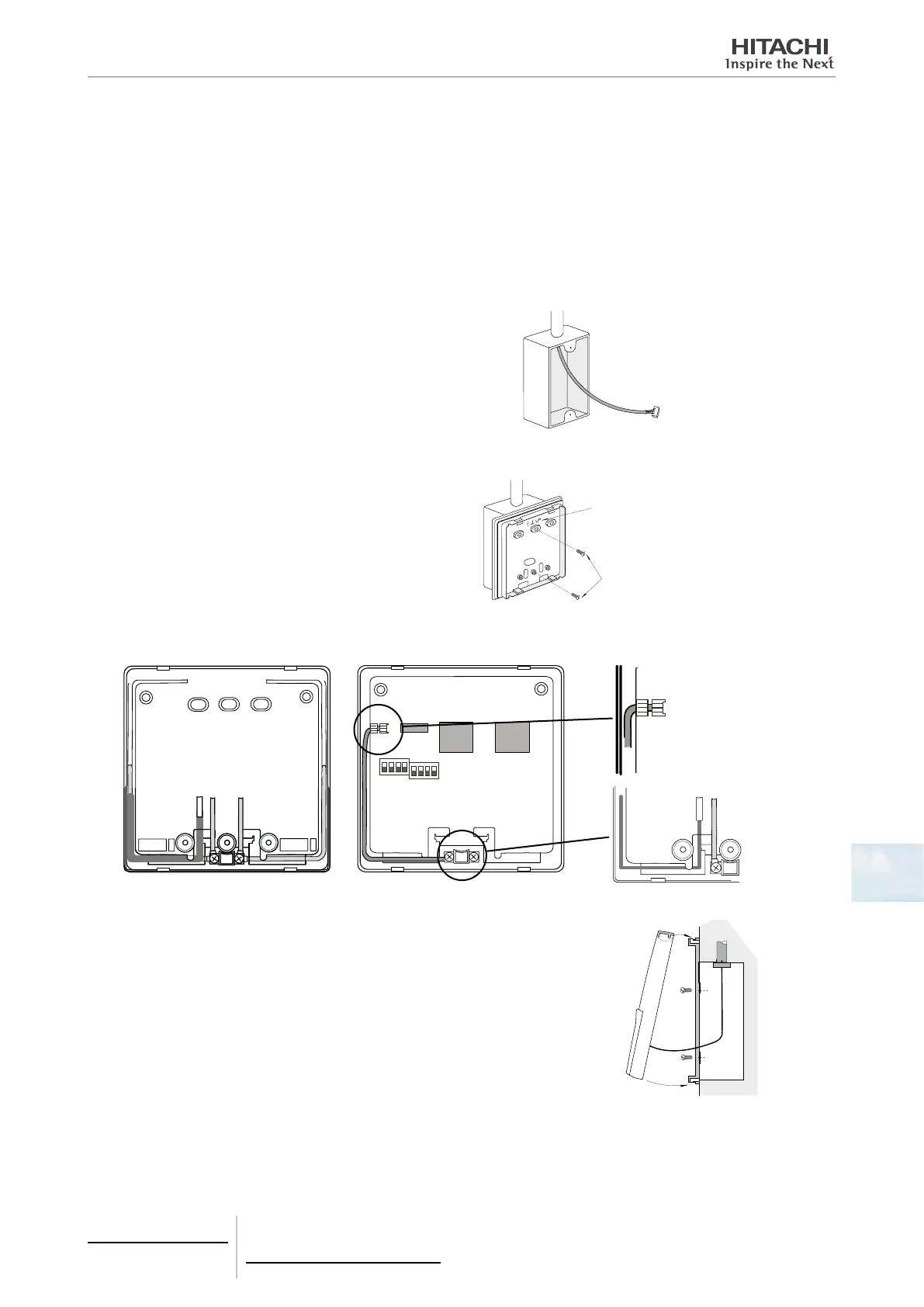

1 Prepare the electrical box.
2 Pass the cable through the wall duct.
3 Attach the bracket to the electrical box.
Attach the bracket with the
mark upwards
Screws (accessories)
4 Connect the cable to the PCB connector or to the terminals.
Connector
Terminal
board
5 Fix the timer to the bracket
a. Insert the hooks of the timer into the holes on the top of the bracket.
b. Push the bottom part of the timer towards the bracket.
c. The timer will click when it is secured in place. Check that the four hooks
are correctly inserted.
