Appendix - Installation of Remote Termination Panels (RTPs) - Analog Input/Digital Input/Digital Output/Analog
Output
Revision 19 HC900 Process Controller Installation and User Guide 223
06/14
16 Point DC Digital Input
Step Action

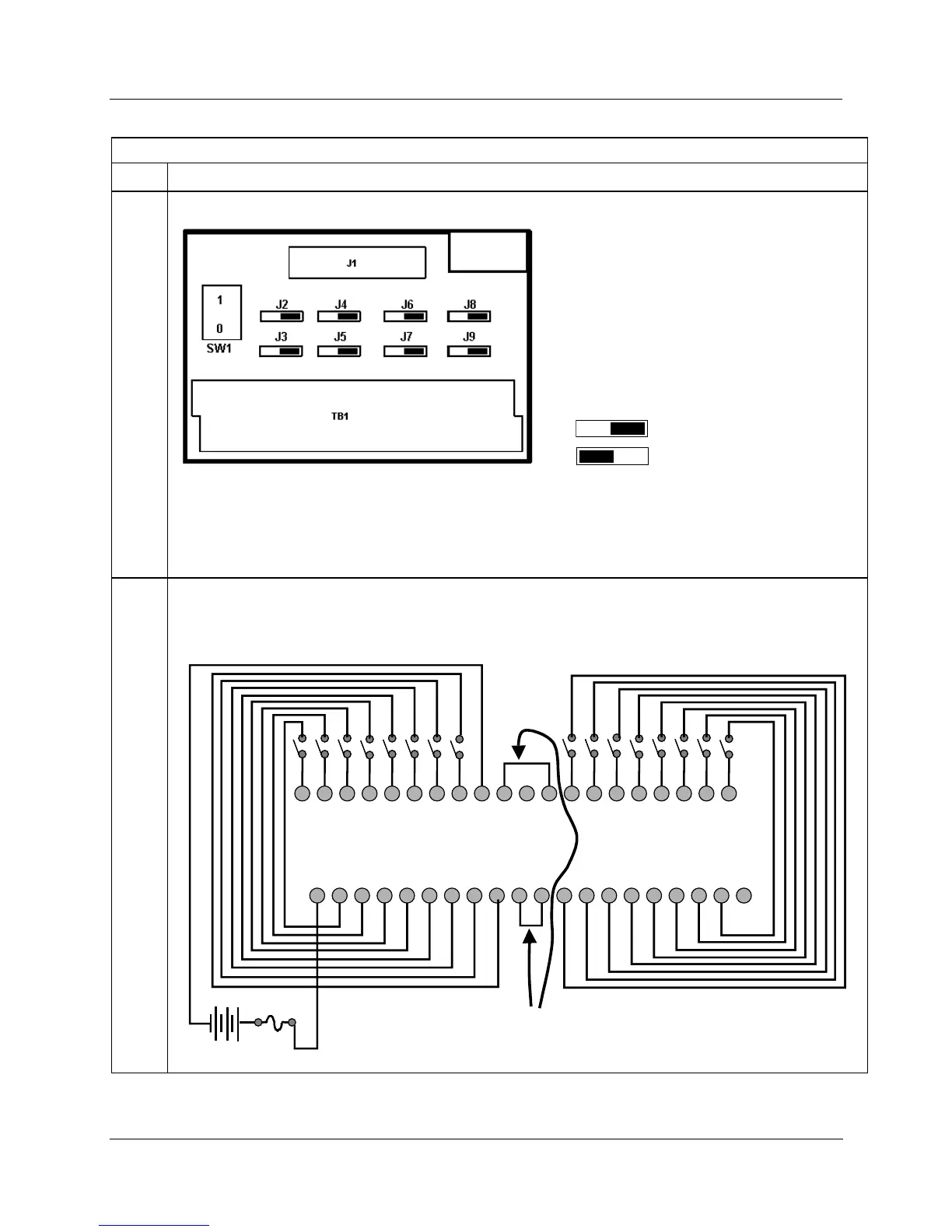

3 Set/verify jumper positions as shown for the 16 point digital input module.
Jumper open
Jumper closed
Module Removal / Insertion Under Power (RIUP) is supported by turning off Switch SW1 to allow removal of
the module from the rack without causing an arc. Please see page 73 for more details.
ATTENTION: SW1 only disconnects the positive terminal, not both sides of the DC power.
See page 230 for RTP internal schematic.
4 Connect field wiring.
Note: SDC+ in the wiring figure below refers to power that is disconnected from these screw terminals when
switch SW1 is open (0).
1 2 3 4 5 6
7 8 9 10 11 12 13 14 15 16 17 18 19 20
21 22
23 24 25 26 27 28 29 30 31 32
33 34 35 36 37 38 39 40
IN1
IN2 IN3 IN4 IN5 IN6 IN7 IN8 IN9
IN10 IN11 IN12 IN13 IN14 IN15 IN16
DC Supply
IN1+
IN2+
IN9+
IN10+
IN5+
IN6+
DC
-
IN3+
IN4+
IN7+
IN8+
DC
-
DC
-
DC
-
IN11+
IN12+
IN13+
IN14+
IN15+
IN16+
SDC+
SDC+
DC+
SDC+
SDC+
SDC+
SDC+
SDC+
SDC+
SDC+
SDC+
SDC+
SDC+
SDC+
SDC+
SDC+
SDC+
SDC+
SDC+
SDC+
Install jumper wires
