Appendix - Installation of Remote Termination Panels (RTPs) - Analog Input/Digital Input/Digital Output/Analog
Output
Revision 19 HC900 Process Controller Installation and User Guide 235
06/14

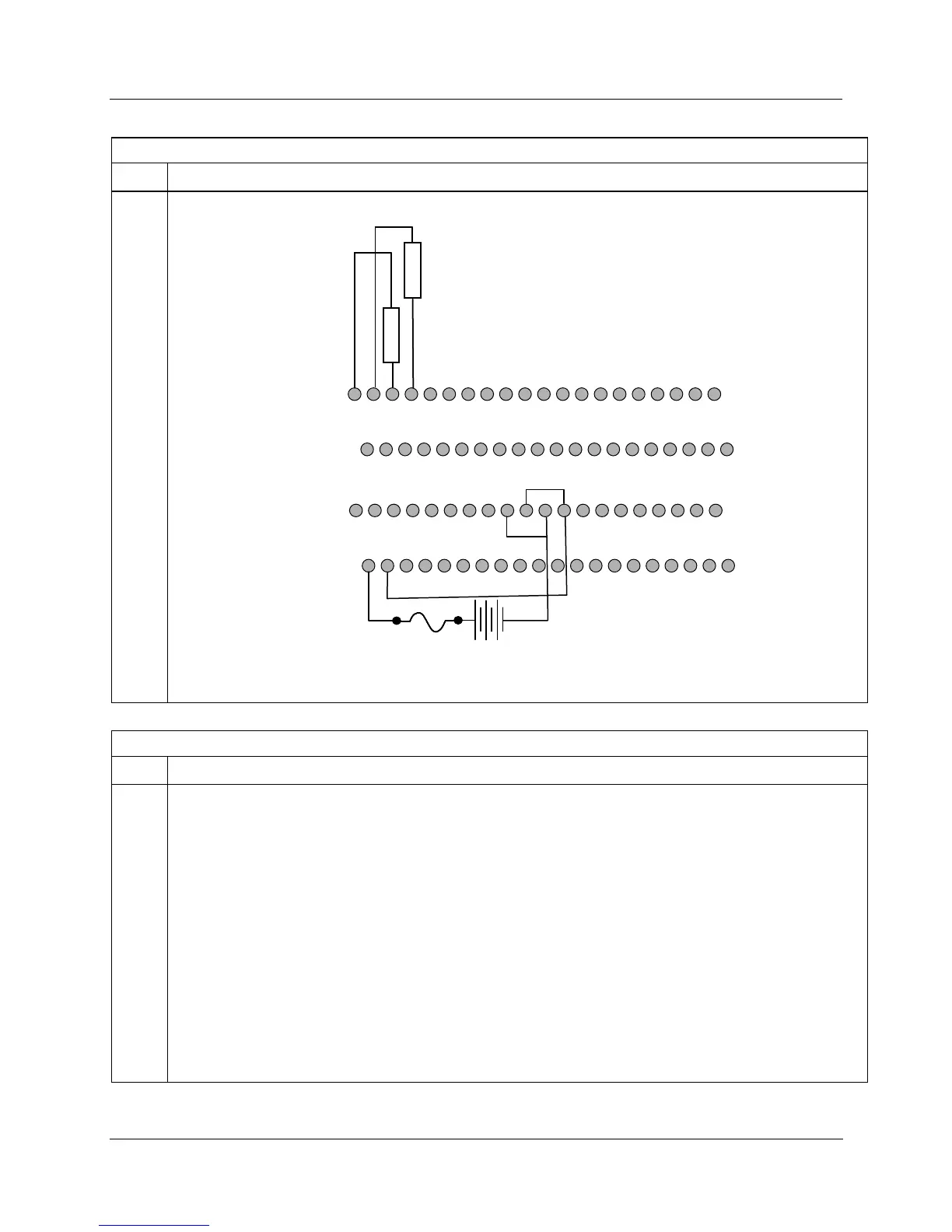

16 Point Analog Output
Step Action
4 Connect field wiring.
RTP A for
Outputs 1 to 8, 9+ and 10+
RTP B for
Outputs 11 to 16, 9- and 10-)
1 2 3 4 5 6 7 8 9
10
11
12
13
14
15 16 17
18 19 20
21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40
LOADS ARE 0 to 750 ohm
AO1+
AO1
-
AO2+
AO2
-
LOAD
AO-1
LOAD
AO-2
LOAD
AO-1
LOAD
AO-2
AO3+
AO3
-
AO4+
AO4
-
AO5+
AO5
-
AO6+
AO6
-
AO7+
AO7
-
AO8+
AO8
-
ETC.
1 2 3 4 5 6 7 8 9
10
11
12
13
14
15 16 17
18 19 20
21 22
23 24 25 26 27 28 29 30 31
32 33 34 35 36
37 38 39 40
AO9
-
AO11+
AO10
-
AO12+
AO11
-
AO13+
AO12
-
AO14+
AO13
-
AO15+
AO14
-
AO16+
AO15
-
AO16
-
External 24VDC supply
DC+
SDC+
EXT 24V RTN
EXT +24V
AO10+
AO9+
Install 24V wires as shown:
22 to 10
22 to 12
24VRTN to 9
24VRTN to 11
16 Point Analog Input
Step Action
1 ATTENTION: RTP and cables are intended for permanent installation within their own enclosure.
ATTENTION: The RTP labeled “DI, DO, AO RTP ASSY” with jumpers J2-J9 is the correct one for 16
point AI.
Mount RTP cable assembly to HC900 Controller (Figure 92).
Remove appropriate key tabs from terminal board to allow mating with the module. See page 75.
Connect terminal block end of desired cable assembly to 16 point Analog Input module at controller.
Choose from:
900RTC-3210 Remote Terminal Cable assembly, 1.0 meters long
900RTC-3225 Remote Terminal Cable assembly, 2.5 meters long
Install 16 point Analog Input label into the module connector cover.
Connect both shield drain wires to the grounding bars at the base of the HC900 rack. All field-wiring
shields must be grounded as described in the shield grounding section (page 70).
