How
t
he
Instrument
W
orks
Standard
a
nd
Enhanced
T
rigger
M
odes

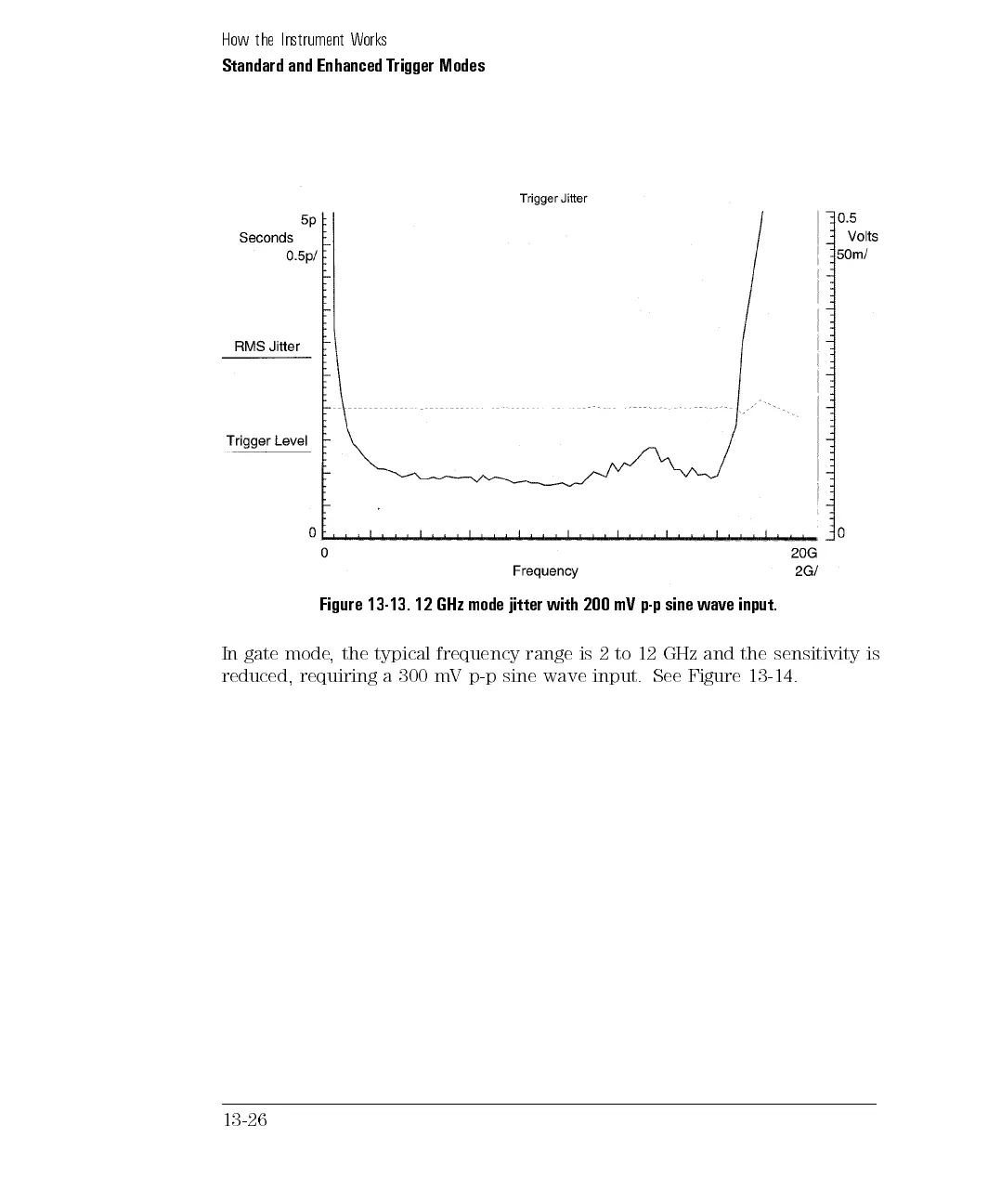

Figure
13-13.
12
GHz
mode
jitter
with
200
mV
p-p
sine
wave
input.
In
gate
mode
,
the
typical
frequency
range
is
2
to
12
GHz
and
the
sensitivity
is
reduced,
requiring
a
300
mV
p-p
sine
wave
input.
See
Figure
13-14
.
13-26
445
