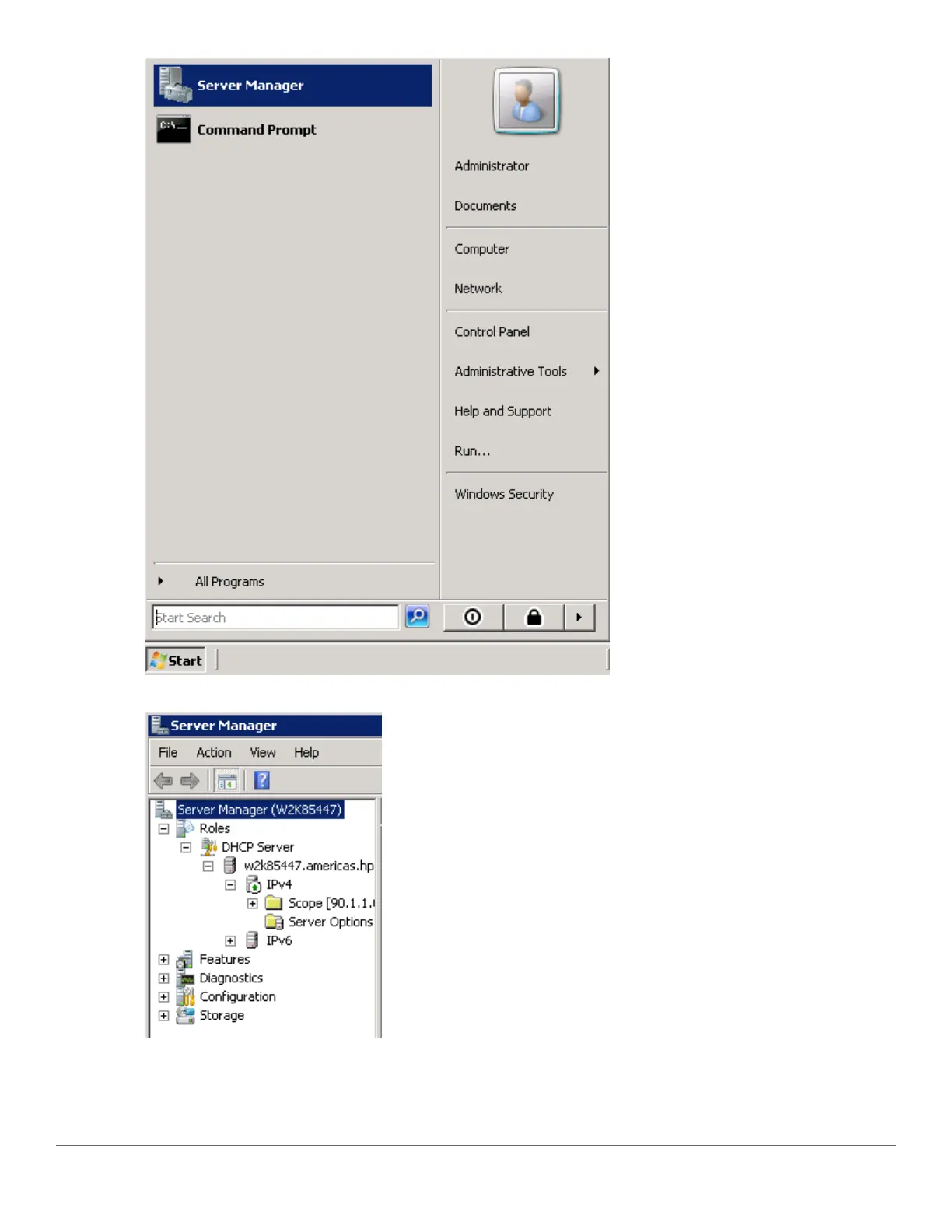

2. Select Roles -> DHCP -> Server -> w2k8 -> IPv4.

3. Right-click IPv4 and select Set Predefined Options...

296 Aruba 2930F / 2930M Management and Configuration Guide

for ArubaOS-Switch 16.08
