show spanning-tree command output

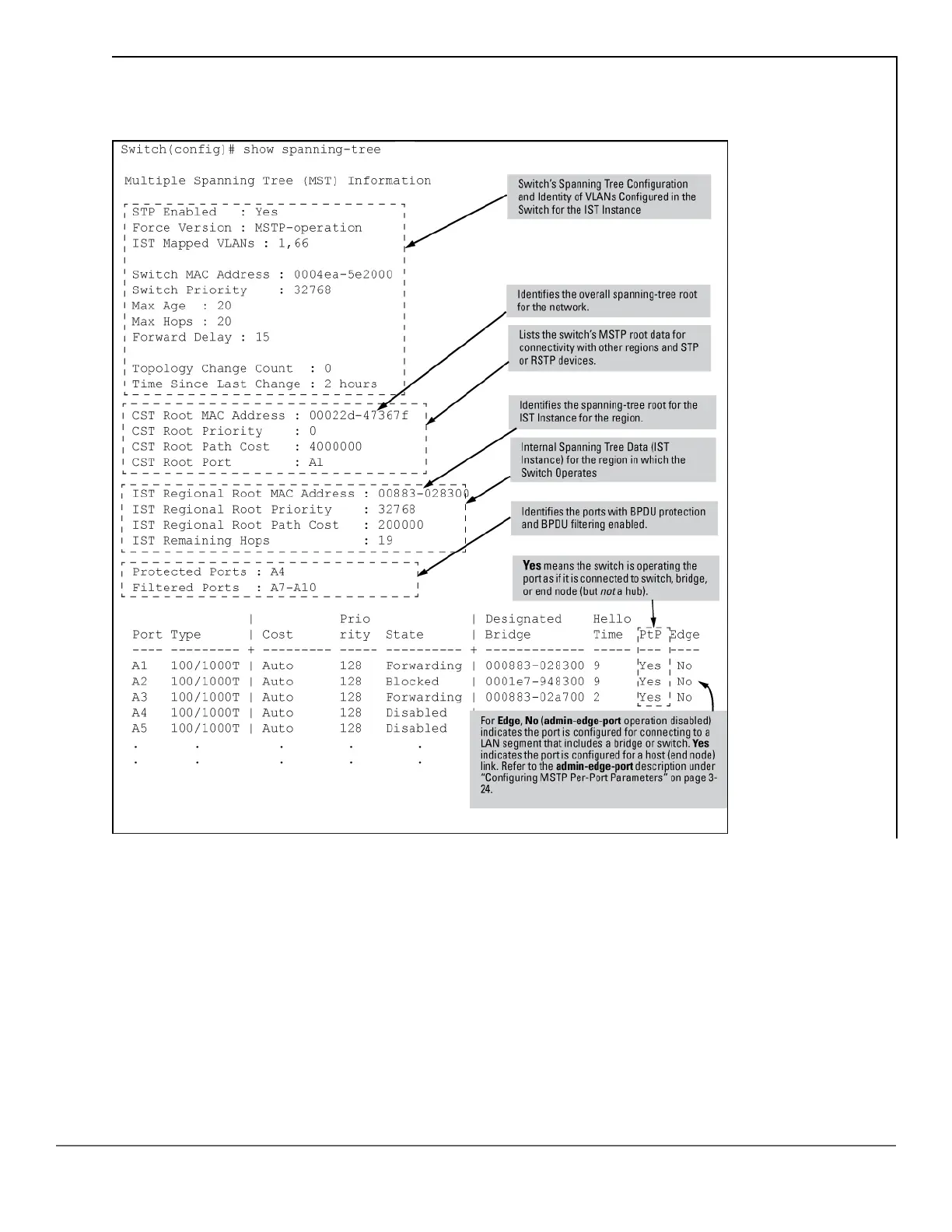

Figure 50: show spanning-tree command output

IP IGMP status

show ip igmp

Syntax

show ip igmp <VLAN-ID> [config] [group <IP-ADDR>|groups] [statistics]

Description

Global command that lists IGMP status for all VLANs configured in the switch, including:

402 Aruba 2930F / 2930M Management and Configuration Guide

for ArubaOS-Switch 16.08
