A1, A2 VLAN-33 33
A3, A4 VLAN-44 44

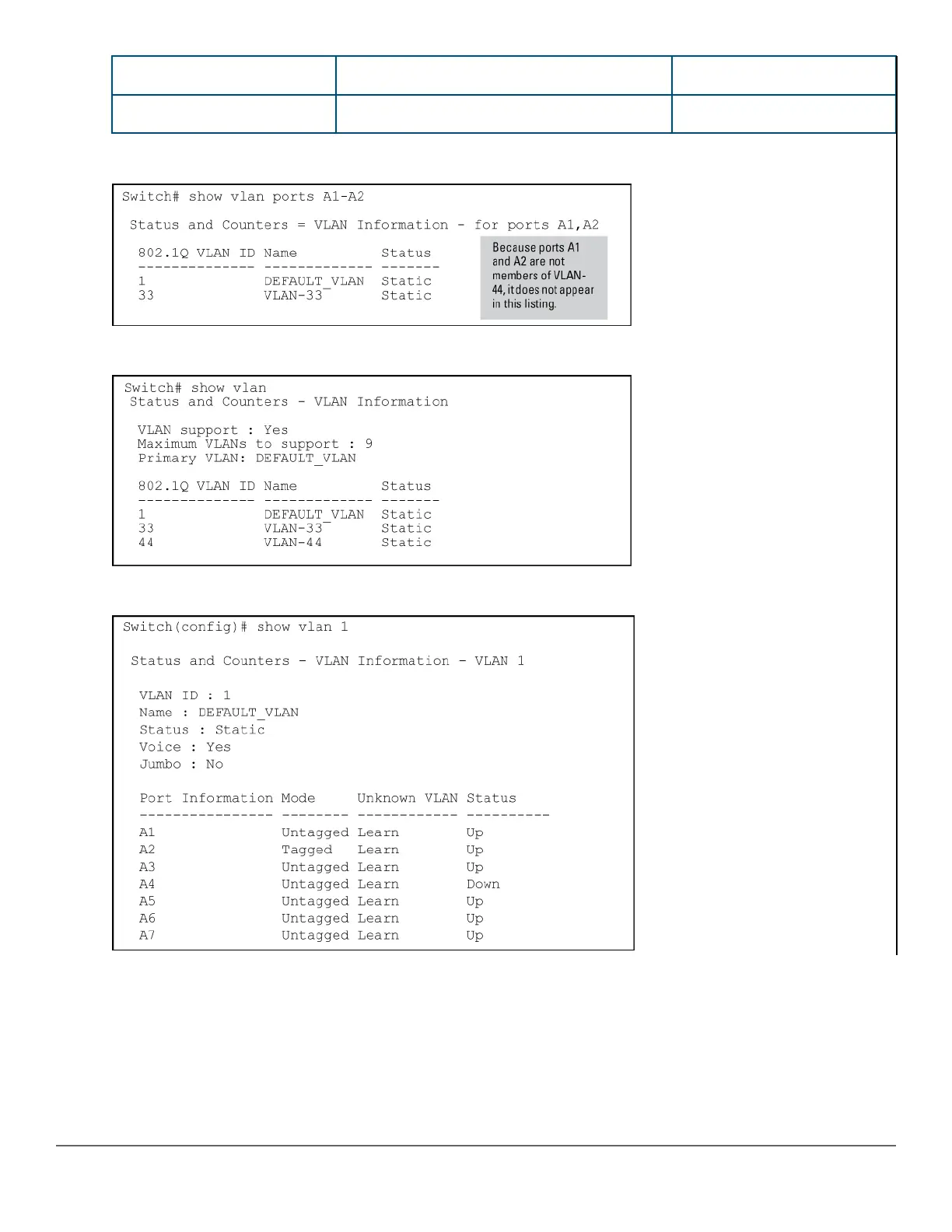

Figure 51: Listing the VLAN ID (vid) and status for specific ports
Figure 52: Example of VLAN listing for the entire switch
Figure 53: Port listing for an individual VLAN
Configuring local mirroring
To configure a local mirroring session in which the mirroring source and destination are on the same switch, follow
these general steps:
Procedure
1. Determine the session and local destination port:
Chapter 12 Monitoring and Analyzing Switch Operation 405
