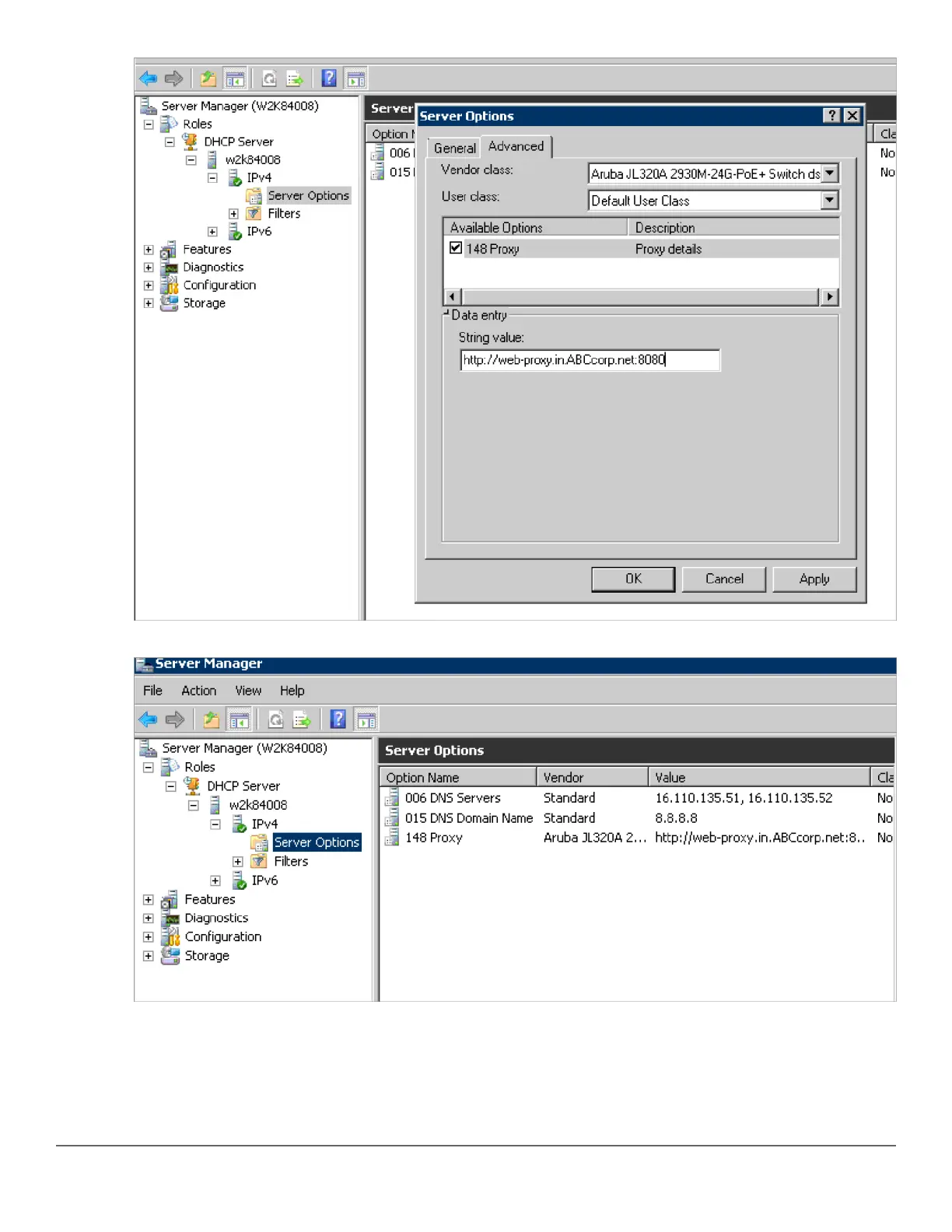

6. Click Apply and OK and the proxy option is added in the Server options.

7. Now restart the DHCP service and download new DHCP attributes in the switch, you can check that the proxy

details are correctly downloaded in the switch using the show proxy config command.

Chapter 10 Zero Touch Provisioning with AirWave and Central 341
